W01-358-7272 Firestone Flange Connection Air Spring 24-M10 Screws from Guangzhou

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 1H520150
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 1 pieces
Price: Negotiable
Payment Terms: T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Supplier: AIRSUSTECH
Product NO.: 1H520150
Screw Type: 24-M10
Stroke: 99 MM
Function: Reduce Shock
Operation: Gas-Filled
Number of Ply Bellows: 1
Other Numbers: FS 1710-12 RS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

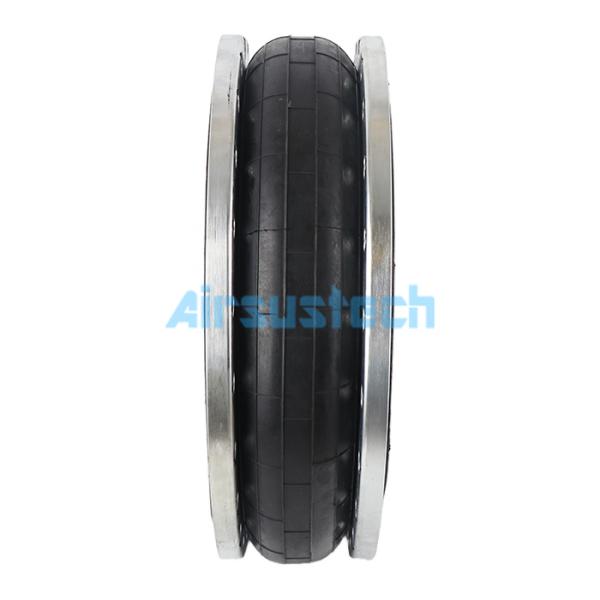

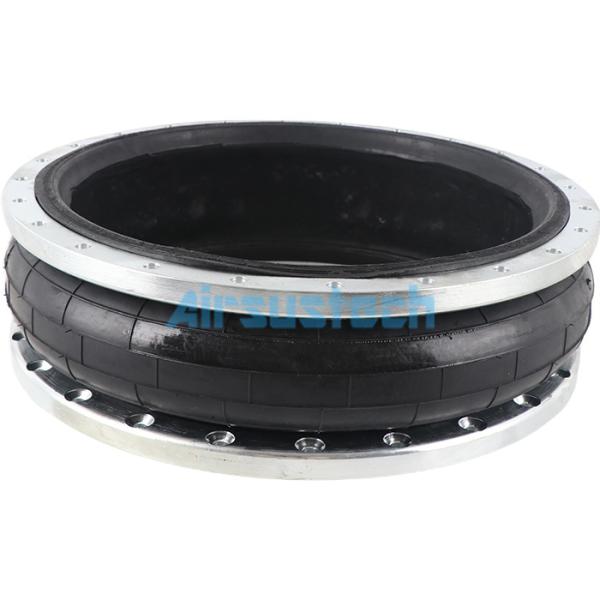

W01-358-7272 Firestone Flange Connection Air Spring 24-M10 Screws from Guangzhou

W01-358-7272 Firestone Flange Connection Air Spring 24-M10 Screws from Guangzhou


The Specifications of AIRSUSTECH 1H520150


[1] Compressed height: 53 mm

[2] Maximum height: 152 mm

[3] Plate diameter: 451 mm

[4] Max. diameter of rubber bellows: 516 mm

[5] Center to center distance: 419 mm

[6] Screw nuts type: 24×M10×1.5

[7] Material: natural rubber and aluminum flange ring


The Technical Parameters of AIRSUSTECH 1H520150


Dynamic Characteristics at 125 mm Design Height
Gauge Pressure (BAR)Load (kN)Spring Rate (kN/m)Natural Frequency (Hz)
332.468122.49
445.1310582.41
547.1312982.38
670.6115352.33
782.8517502.29

Force Table
Assembly Height (mm)Volume @ 100 BAR (cu cm)EFF Area @ 7 BAR (cu sq)kN Force
@ 3 BAR@ 4 BAR@ 5 BAR@ 6 BAR@ 7 BAR
13019228112230.4142.4753.8266.7878.52
12017985123934.2647.4960.0774.0486.72
11016552135037.7252.1365.8280.8294.46
10015121144640.6456.0770.7086.63101.2
9013511153143.2659.5874.9891.75107.17
8011939159945.5562.4678.4795.84111.88
7010205165347.7264.9881.5199.23115.66

OEM Cross References


  • Rolled plate assembly, 1/2 blind nuts, 3/4NPT:

W01-358-7272, W013587272, W01 358 7272

WO1-358-7272, WO13587272, WO1 358 7272


  • Ribbed neck aluminum bead rings, 45 mm bolts, nuts, wahsers:

W01-M58-6966, W01M586966, W01 M58 6966

WO1-M58-6966, WO1M586966, WO1 M58 6966


  • Rubber bellows only:

W01-358-5135, W013585135, W01 358 5135

WO1-358-5135, WO13585135, WO1 358 5135


Six Reasons to Choose Us


1. Hight stability
2. In situ installation
3. Ride comfort
4. Safe and durable
5. Effective shock absorption
6. Reduce the sound


The Real Pictures


Factory Workshop
AIRSUSTECH factory workshop overview showing production area
AIRSUSTECH manufacturing equipment for air springs
AIRSUSTECH quality control process for air springs
