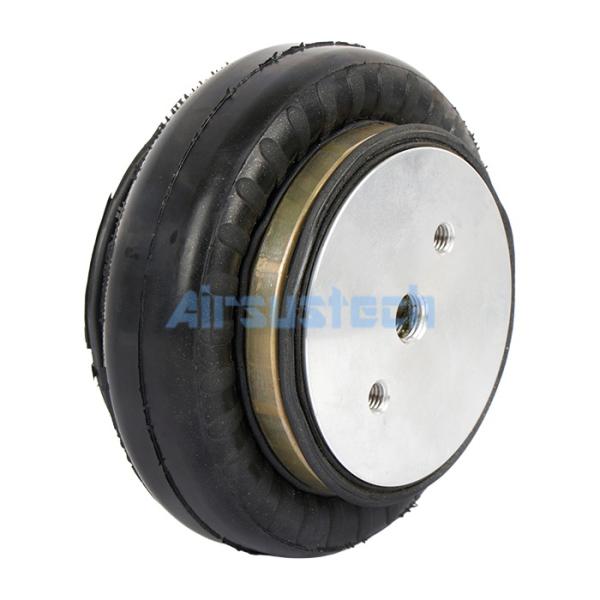

Black Convoluted Air Spring for Enidine YI-FS50-5-000 Air Bellows ZG1/4'' Port Size

Categories Convoluted Air Spring
Brand Name: AIRSUSTECH
Model Number: 1K130070
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 1 pieces
Price: Negotiable
Payment Terms: T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Supplier: AIRSUSTECH
Product NO.: 1K130070
Stroke: 50 MM
Threaded Hole: 2×M8
Static Height: 70 MM
Goodyear: 1B5-500
Material: Rubber+Steel
Types of Goods: Convoluted Air Spring
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Black Convoluted Air Spring for Enidine YI-FS50-5-000 Air Bellows ZG1/4'' Port Size

Black Convoluted Air Spring for Enidine YI-FS50-5-000 Air Bellows ZG1/4'' Port Size


The Specifications of AIRSUSTECH 1K130070


Minimum compressed height: 50 mm

Max. extended height: 100 mm

Working stroke: 50 mm

Air connection: ZG1/4''

Threaded hole type: 2×M8

Static height: 70 mm

Maximum outside diameter: 150 mm

Cover plate diameter: 85 mm

Center to center distance: 44.5 mm


1K130070 Cross OEM Numbers


SupplierPart NumberSupplierPart Number
Enidine

YI-FS50-5-000

YIFS505000

YI FS50 5 000

Enidine

YI-1B5-500

YI1B5500

YI 1B5 500

Goodyear

1B5-500

1B5500

1B5 500

Goodyear Rubber Bellows

579-913-500

579913500

579 91 3 500

Air Lift58218Airkraft Style1B120
Firestone

W02-358-5000

W023585000

W02 358 5000

Firestone

W01-358-7609

W013587609

W01 358 7609

NumaticsASNS1111

When Installing a New Unit, Please Note the Following Important Points


  1. When removing the air spring valve linkage, inspect it for bent or broken parts. Replace any damage.
  2. Inspect the shock absorber to see if it needs to be replaced. Signs of wear can usually be identified in two places: If it compresses or rebounds easily, it needs to be replaced. After servicing, the shock absorber should feel warm to the touch. If not, it needs to be replaced. Proper shock absorber maintenance contributes significantly to the lifespan of your air springs.
  3. After removing the air spring, inspect the air line for cracks and damage. Also, check for loose connections and replace any worn parts.
  4. Sometimes the cause of an air spring failure is visible and/or obvious, but sometimes it is not. If not, inspect the air spring after removal to determine the cause of the failure and correct the problem.
  5. After removing the air spring, other parts of the air suspension are more easily accessible. Inspect the frame suspension, trailing arm bushings, torsion bar, trailing arms, and air spring mounts for wear or damage. Replace components as needed.
  6. Also check the area around the air spring mount to ensure there are no obstructions or sharp edges that could damage the new air spring.
  7. Before installing the new unit, clean the air spring mounting plate to ensure it is properly seated on the suspension.
  8. Always use new mounting bolts during installation. Do not reuse old bolts, as they may fail.
  9. Check the proper operation of the leveling arm. Under load, the leveling arm should move upward from the neutral to the inlet position.
  10. This allows air to enter the spring and return the leveling arm to its neutral position. When the load is removed, the leveling arm should move downward to the exhaust position. This opens the exhaust valve, allowing air to escape until the arm returns to its neutral position.

The Real Pictures



Factory Workshop

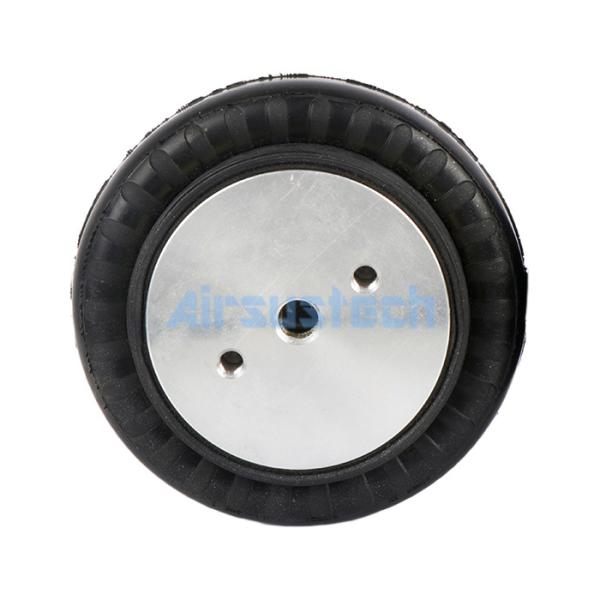

Buy Black Convoluted Air Spring for Enidine YI-FS50-5-000 Air Bellows ZG1/4'' Port Size at wholesale prices
