| Categories | Textile Testing Machine |
|---|---|
| Place of Origin: | China |
| Brand Name: | Lonroy |
| MOQ: | 1 |
| Voltage: | 220V |
| Product weight: | 1 kg |
| Packaging weight: | 2 kg |
| Dimensions: | 127 mm × 83 mm × 178 mm |
| Number of workstations: | 1 |
| Protection class: | IP56 |
| Material of key components: | Stainless steel |
| Friction tips: | 15mm organic glass |
| Sample cutting requirement (AATCC): | 50mm × 50mm right-angled squares |
| Sample cutting requirement (ISO): | 50mm × 50mm decorative square grids |
| Friction finger size: | 15mm |
| Load control: | Calibrated weights |
| Detection travel control: | Narrow slot at bottom |
| Sample position control: | Serrated edge |
| Friction head customization: | Available |
| Certification: | ISO ASTM CE |
| Price: | Negotaible |
| Packaging Details: | Wooden package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 200 |
| Company Info. |
| DONGGUAN LONROY EQUIPMENT CO LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
ISO 874 AATCC 165 Manual Friction Color Fading Tester JIS L 1084 Ford BN 107 Portable Manual Color Fade Test Machine
Introduction

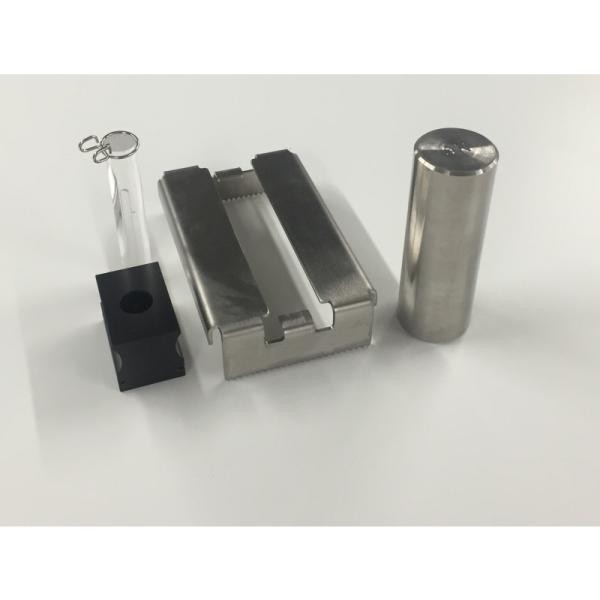

The manual friction color fading tester is lightweight and portable, meeting the specifications required for standard friction fading tests, such as finger size, friction force (weight), and stroke. Moreover, this tester can be used to test different materials ranging from fabrics to plastics, for assessing the degree of color transfer from colored materials to other materials surfaces after friction. The acrylic friction finger is keyed to prevent rotation during testing and can be replaced. The unique feature of the equipment lies in this design, which allows the operator to test samples on any part of the bolt or hidden areas without having to cut the samples off.
The detection travel is controlled through the narrow slot at the bottom of the tester. The load is controlled by the calibrated weights, and the sample position is controlled by the serrated edge, which keeps the device fixed. It is equipped with a toolbox, which contains a bottle of deionized water and several sample testing cloths.
Compliant with standards
ISO 874, AATCC Method 8, AATCC Method 165, JIS L 1084, Ford BN 107-01, CFFA-7, ASTM D5053, JIS L 0849
ISO 874 AATCC 165 Manual Friction Color Fading Tester JIS L 1084 Ford BN 107 Portable Manual Color Fade Test Machine
Technical Specification
Product weight | 3 lbs / 1 kg |
Packaging weight | 5 lbs / 2 kgs |
Dimensions | 5" × 3.3" × 7" (127 mm × 83 mm × 178 mm) |
Number of workstations | 1 |
Material of key components | The main body of the equipment and the weights are made of stainless steel. |
Friction tips | Replaceable 15mm organic glass friction tips; Customized friction heads can be provided if required. |
AATCC Friction Fading Tester (for fabric testing) | - Sample cutting requirement: Cut into 2 × 2" (50mm × 50mm)
right-angled squares |
ISO Friction and Fade Tester (for fabric testing) | - Sample cutting requirement: Cut into 2 × 2" (50mm × 50mm)
decorative square grids |
|
