180kg/H PET double Straps Production Line With PLC Control And 100-160m/Min Running Speed

Categories PET Strap Extrusion Line
Brand Name: JIATUO CHINA
Model Number: JTPET-90
Certification: CE SGS ISO
Place of Origin: CHINA
MOQ: 1 SET
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10000sets
Delivery Time: 30-40 Days
Packaging Details: plastic film
Product Name: PET Strap Extrusion Line
Material: PET Bottle Flakes Material/PET Recycle Material
Power Supply: 380V/50Hz/220V/60HZ Three-phase
Automation: PLC Computer Touch Screen
Oil removal and dust removal filter: 1set
Main motor: 37KW
Neat winding: YES
Pre drying tower: 5000L
Production capacity: 220-250kg/H
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

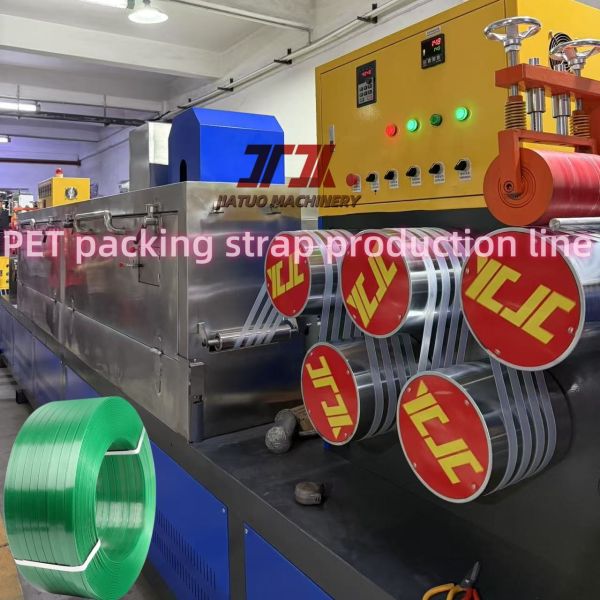

180kg/H PET double Straps Production Line With PLC Control And 100-160m/Min Running Speed

180kg/H PET double Straps Production Line With PLC Control And 100-160m/Min Running Speed


Technical parameters of PET 2 straps output production line


Screw model90 (Single screw or double screw)
Number of strap2 straps
Width9-32mm
Thickness0.4-1.2mm
Screen changerAutomatic/Manual
Control systemPLC control(Chinese and English)
Production capacity220-250kg/H
Reducer BrandGUOMAO
Motor BrandGUGAO
Pull of finial product200-230KG/H
Line speedMore than 160m/min
MaterialPET crushed material/bottle flake material

PET strap production line process

Material→mixing material→pre-drying material →dehumidification and drying material→Melting material and extrusion→material embryo expression(with embryo) cooling molding→pre-heating oven→firstly streching→secondary stretching→embossing→setting oven to shaping→cooling→Final product winder


Advantage of PET belt making machine


1.Use 100% Recycled PET Flakes and PET crushed material to reduce the cost

2.Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping

3.Special design hot forming tensile tank to make good forming ,equal width,straight strap

Production description of PET strapping

PET Strapping belt


PET strap is a widely used plastic and environmentally friendly packaging belt, which has been produced in China for over 20 years. Since 2002, China's demand for PET packaging belts has grown at an annual rate of 500% and is now widely used in industries such as wood, paper, steel, aluminum ingots, steel pipes, profiles, glass, building materials, ceramics, electrical appliances, metal products, tobacco, chemical fibers, cotton, etc. Transparent in appearance (opaque after adding tackifier), with a flat or prismatic surface pattern


Why choose us

Comparing with the low price low quality machine, Please note our strong advantages:

1. Nearly 30 Years Experiences;
2. GermanTechnology;
3.
High Efficiency Oven Heating and Annealing system;
4.
PLC Controlled of whole line;
5. Fully Automatic
No-Stop Screen Changer;
6.
Easy to Operate, Stable Performance, Good Quality Straps, Low Production Cost;
7. Quicker Production Speed,
high Output;
