Steel Plate Double Convoluted Air Suspension for 6''×2 Dunlop Air Spring Assembly

Categories Dunlop Air Spring
Brand Name: AIRSUSTECH
Model Number: 2B6×2T
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 1 pieces
Price: Negotiable
Payment Terms: T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Trademark: AIRSUSTECH
Product Number: 2B6×2T
Maximum Diameter: 168 MM
Air Hole: 1/2BSP
Color: Black
Sample: Available
Norgren: M/31062
Function: Reduce Shock
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Steel Plate Double Convoluted Air Suspension for 6''×2 Dunlop Air Spring Assembly

Steel Plate Double Convoluted Air Suspension for 6''×2 Dunlop Air Spring Assembly


The Technical Datas of AIRSUSTECH 2B6×2T


Compressed height: 73 mm

Max. extended height: 170 mm

Working stroke: 97 mm

Maximum diameter: 168 mm

Space required: 180 mm

Static height: 120 mm

Cover plate width: 153 mm

Center distance: 127 mm

Gas hole: 1/2BSP

Screw nuts type: 4-M10


Superseded Part Numbers


Dunlop Pneuride 6''×2 (Steel)

Dunlop Pneuride 6'×2 (Steel)

Dunlop Pneuride 6×2 (Steel)

Dunlop Springride SP1482

Dunlop Springride SP 1482

Firestone Style W01-R58-4053

Firestone Style W01R584053

Firestone Style W01 R58 4053

Firestone Style Style WO1-R58-4053

Firestone WO1R584053

Firestone Style WO1 R58 4053

Contitech FD 76-14 DS

Contitech FD 7614 DS

Contitech FD 76 14 DS

Norgren M/31062

Norgren M31062

Norgren M 31062

Parker 9109001


The Significant Advantages of AIRSUSTECH Air Spring


  1. AIRSUSTECH Air Bellows provide engineered solutions for industrial applications where traditional pneumatic actuators lack sufficient force efficiency, exceed spatial constraints, or face maintenance-intensive operating environments. Targeted industries include paper manufacturing, food processing, textile machinery, and construction equipment where reliability is critical.

  2. Structurally, each air bellow functions as a single-acting heavy-duty pneumatic actuator. Reinforced elastomeric bellows incorporate reinforced end plates with precision mounting interfaces and standardized air inlet ports. Three core configurations exist: single-convolution, double-convolution, and triple-convolution designs for load-specific performance.

  3. As precision-engineered vibration isolators, AIRSUSTECH bellows significantly attenuate structure-borne vibrations across industrial and commercial machinery. Through optimized natural frequency selection, they achieve superior vibration damping efficiency while minimizing resonant energy transmission.


Other Double Convoluted Rubber Bellows Part Numbers


AIRSUSTECH NO.FirestoneDunlop PneurideDunlop SpringrideContitechNorgrenParker
2 3/4''×2P2 3/4''×2SP2904FD 22-4 DI9109009
2B4.5×2PW01-R58-40514 1/2''×2SP2441FD 44-10 DIPM/310429109401
2B4.5×2-E
2B6×2T(AI)W01-R58-40706''×2(AI)SP2917FD 76-14 DIPM/310629109001A
2B6×2T(Steel)W01-R58-40536''×2(Steel)SP1482FD 76-14 DSM/310629109001
2B8×2TW01-R58-40558''×2SP1490FD 138-18 DSM/310829109011
2B10×2TW01-R58-405810''×2SP1538FD 210-22 DSM/311029109021
2B12×2TW01-R58-406112''×2SP1541FD 412-22 DSM/311229109041
2B12''×2-EW01-R58-403912''×2 ExtendSP2782NB
2B14 1/2''×2TW01-R58-406414'' 1/2×2SP1556FD 614-26 DSM/311429109061
2B16×2TW01-R58-406716''×2SP1557FD 816-30 DSM/311629109171
2B21 1/2''×2T21 1/2''×2SP1408M/312129109153
2B26''×2T6''×2SP2342M/312629109159

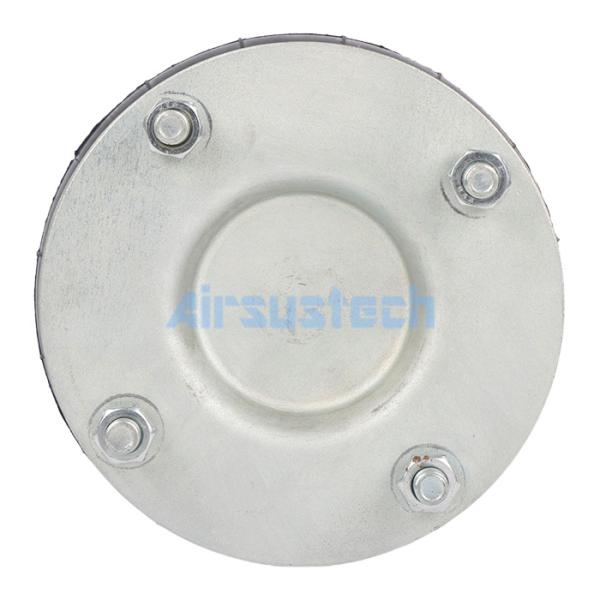

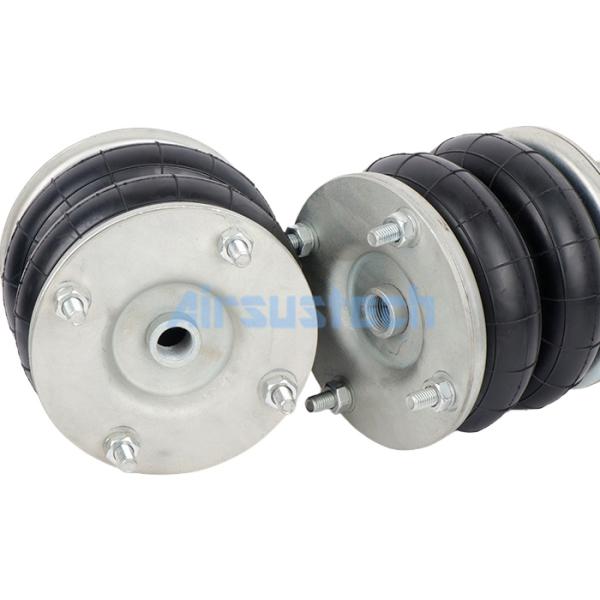

The Detailed Pictures



Factory Workshop
AIRSUSTECH factory production line
AIRSUSTECH factory production line
Quality control in AIRSUSTECH workshop
Quality control in AIRSUSTECH workshop
AIRSUSTECH manufacturing facility
AIRSUSTECH manufacturing facility
