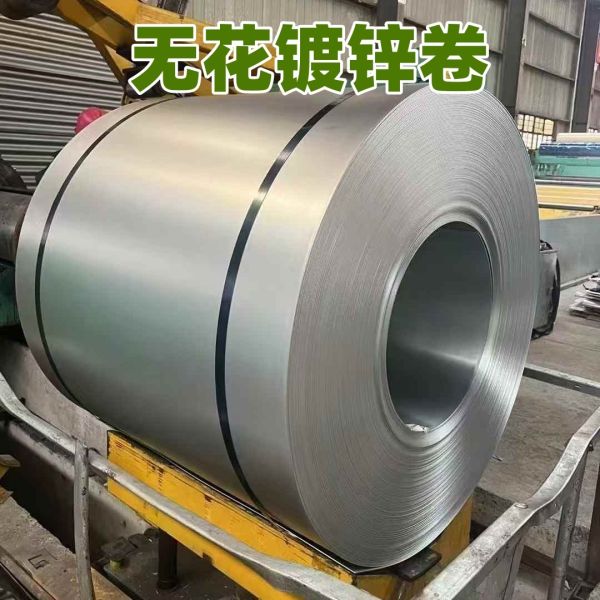

High Strength S350GD+Z275 No Spangle Hot Dipped Galvanised Steel Coil 1.5*1500mm

Specification of our galvanized steel coil

Name	Galvanized Steel Coil
Base metal	Galvanized Steel Coils, Alumzinc steel coils
Productivity	200,000mt/year
Thickness	0.12-3mm
Width	1000mm, 1250mm
Coil Weight	3-8 MT
Zinc coating	Z40 - Z275 / AZ40 - AZ275
Inside Diameter	508mm Or 610mm
Zinc Coating	Customered
Standard	Commercial Grade: SGCC, JIS G3321, DX51D, EN1042 or ASTM A792M Structure Grade: S280GD, S350GD, G550, FULL HARD GRADE
Surface Treatment	oiled / non-oiled
Quality Guarantee	15-20 years outdoor durability
Spangle	None Spangle / Regular Spangle / Small Spangle / Large Spangle

Available Chinese Mill: WISCO,Capital Steel(Shougang), Ansteel, Baotou, Lianyuan, Tangshan, Jinan, Panzhihua, Kunming, etc and some small mills

Products type we can provide

Products Type	Size range	Packing details	Weight	Noted
Galvanized steel sheet	0.25 - 3.0mm x 1000*2000mm/1250*2500mm/1500*3000mm	Packing by wooden pallets	within 3 ton each packing	cuntoms length as request
Galvanized steel coil	0.12 - 3.0mm x 1000/1250mm/1500mm x Coil	packing by wooden frame	weight: 2 - 8 Tons	we can devide into small coils
Galvanized steel strips	0.12-3.0mm x Width 10 - 1500mm x Coil	packing by wooden pallets	weight: within 3 Tons	custom size as request

Features

1. Hot Dip Galvanized Steel Sheet/plate is manufactured to have a long durability, strong corrosion resistance and shiny surface.

2. Hot Dip Galvanized steel features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending

ABOUT SURFACE

REGULAR SPANGLE:

Regular spangle is also called normal spangle which is naturally formed without any additional treatment during galvanizing.

MINI SPANGLE:

The spangle is restrained and formed as mini spangle by reducing the lead content in the zinc liquid or by blowing the zinc powder from the equipment installed on the zinc pot.

EXTRA SMOOTH:

The mini spangle is further skin-passed to produce the extra smooth surface.

Applications:

1. Construction: roof and roof component, outside walls of civilian and industrial buildings, garage doors and window blinds.

2. Houshold appliances: washing machine, refrigerator, television, air conditioner and ventilation system, Vacuum cleaner, solar water heater.

3. Transportation: car ceiling, auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, the ship bulkhead, highway fence.

4. Industry: industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine

5. Furniture: lampshade, counter, signboard and medical facility etc.

Product Specification

Name Of Product	Hot Dipped Galvanized Steel Coil
Grade	Q195 ,SGCC , DX51D ,SGCD
Certification	ISO9001 ,2000
Thickness	From 0.14 mm to 1.60 mm , all available
Width	From 930 mm to 1500 mm ,all available
Coat Fabric	Top Coating: 10-25 micron ;Back Coating: 5-7 micron primer
Color	According to RAL ,or as customer’ model
Surface Treatment	Oils coated ,Zinc Coated, Color Coated
Package	Standard Seaworthy Package
Application	1) Cable armouring 2) Deep drawing applications 3) Constructions 4) Electric appliance

Chemical Composition:

GRADE	C	Si	Mn	P	S	Ti
SGCC/DX51D+Z	≤0.10	≤0.50	≤0.60	≤0.10	≤0.030	≤0.020
DX52D+Z	≤0.10	≤0.50	≤0.60	≤0.10	≤0.030	≤0.020
SGCD/DX53D+Z	≤0.10	≤0.30	≤0.50	≤0.05	≤0.030	≤0.020

GRADE	Yield Strength MPa		Tensile Strength MPa		Elongation %
SGCC(DX51D+Z)	≥205		≥270		-
SGCD(DX53D+Z)	-		≥270		38
SGCE(DX54D+Z)	-		≥270		4

Application:

1) Cable armouring
2) Deep drawing applications
3) Constructions
4) Electric appliance

Product Show

All items of our products and related tests as follow :

1.ERW black round pipe (ASTM A53,GB..)

2.Weld black square/rectangular pipe(ASTM A500,GB,...)

3.Hot dip galvanized round pipe (BS 1387,ASTM A53,GB ,...)

4.Hot dip galvanized square/rectangular pipe(ASTM A500,GB...)

5.Pre-galvanized square/rectangular/round pipe,cold rolled black annealed or bright finished pipe.

6.Spiral steel pipe

7.Seamless pipe (ASTM A53,A106B,)

8.Oval pipe in galvanized and black surface

9.LTZ... special sizes pipe

10.Steel prop , steel plank,steel scaffolding pipe and accessories... steel constrctution material

11.Steel angle, Flat bar,round bar,sqaure bar,

12.H,I,U,C,T,Y,W...steel beam/channel

13.Deformed steel bar

14.Hot rolled& cold rolled steel sheet/coil in black,galvanized,color coated surface.

Packaging & Shipping

Packing: In bundle.

Loading port: Tianjin,China.

Shipment:usual length ≤5.8m by 20'GP,6m-12m by 40'GP(some sizes with 6m L can be into 20'GP).

Quality Inspection

Our company have all kinds of professional quality in product test technology to ensure

our product high quality.

Jiangsu Mittel Steel Industrial Limited is  located in Wuxi City,  a beautiful city near Shanghai.  Wuxi is close to  Shanghai (BAO STEEL) ,Zhangjiagang (ZPSS),Ningbo (BAO XIN),KUN SHAN (DKSS), enjoy excellent geographic location and convenient water, land and air transportation. , Wuxi become the biggest  stainless steel sheet ,plate and coil  supply Centers in China. Jiangsu Mittel Steel Industrial Limited was established in 1998 years. as one of the largest stockists and manufacturers of industrial grade Stainless Steel products and derivatives in Wuxi ,We keep a stock of 50000 tons every month, so we can delivery goods in fast time.

Our company supplies cold/hot-rolled stainless steel sheets,stainless steel coils and stainless steel Plate to many steel factories from athome and abroad, including Shanxi Taigang Iron& Steel CO, . Ltd (TISCO)Zhangjiagang Pohang (ZPSS), Shanghai BAO STEEL, Ningbo Baoxin and steel factories in Taiwan area, Mainland Chinese and foreign countries and regions.

Our long-term business lines are 201.202.304(1.4301).304L.316.316L(1.4404).430.409L, 309S ,310S(1.4845).317L.904L.S31803(1.4462).S32750.S32760, Finish: 2B, BA, NO. 1 NO. 4, HL, 8K and so on...Meanwhile, our company is also engaged in the long-term supply of homemade & imported medium and thick plates, galvanized and carbon steel products.

Adhering to the principle of "quality first and customer foremost",our company will offer long-term service to nationwide manufacturers of household appliances, elevators, tableware, ornaments, tanks and machines. We can offer precise frosted wiredrawing, 8K mirror finishing and skim board oil-abrasion of various specifications at any time. The precisely-processed products will meet your requirements for high quality. Our company is a modern enterprise integrating distribution and storage.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
