Features

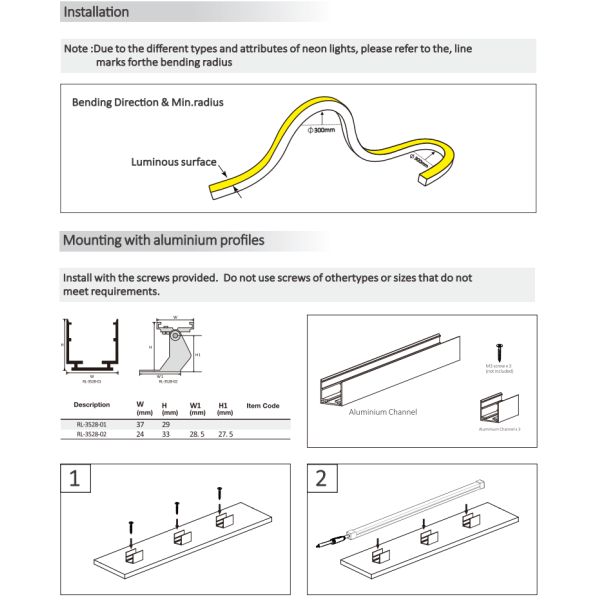

1. 3528 fully covered rubber wall washing lamp, the bending radius
is 150mmProduct cutting unit: 250mm

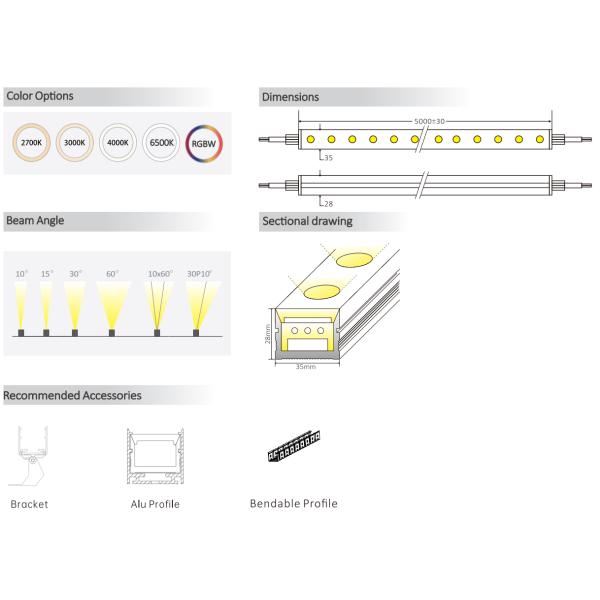

2. Multi-angle selection 10°, 15°, 30°, 60°, 10x60°, 30P10°...
3. good wall washing effect, high irradiation intensity, uniform
lightno color difference,
4. Monochrome, two-color, RGB, RGBW, SPl, DMX program series is
complete
5. Waterproof grade lP67
6. 5 years warranty
Technologies: ON/OFF, DMX
Application:
This product is suitable for use in engineering projects, outdoorlighting, decorative lighting in buildings, hotels, shopping malls, etc.
Product Specification
| P/N | LED Quantity | CCT (K) | CRI | LEDs/m | LUMENS (lm/m) | Vf (V.) | Current (mA/M) | Power (W/M) | Cut Length (MM) | Max Run (M) |
| RL-FV2422024353530-DMX-RGBW-830-FWD3528 | 3535 | R | 80/90 | 24 | 165 | 24 | 1250 | 30 | 250 | 5 |
| G | 405 | |||||||||
| B | 98 | |||||||||
| 3000 | 450 |
Other Specifications
| Protection grade | IP67 |
| Working temperature(°C) | -25~+60 |
| Storage environment temperature (°C) | -25~+70 |
| Standard length | 5 |
| Maximum cascade length(m) | 5 |
| weight | / |
Remark
The test environment temperature is 25±2°C;
The above data are typical values, the actual parameters of the product may be different from the typical data; the data is subject to change without notice;
The above "/" means that this parameter is not required for the time being.
Applied Standards
CE ROHS cULus LISTED ETL Intertek CB Reach UKCA
|
