Firestone W01-M58-6374 Metric Industrial Bellows Actuator with G3/4 Air Fitting

Categories Firestone Air Spring
Brand Name: AIRSUSTECH
Model Number: 1B6910 M8-G3/4
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 1 pieces
Price: Negotiable
Payment Terms: T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model NO.: 1B6910 M8-G3/4
Color: Black
Convolution: One
Contitech: FS 200-10
Name of Goods: Industrial Convoluted Air Spring
Sample: Available
Standard: OEM Standard
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Firestone W01-M58-6374 Metric Industrial Bellows Actuator with G3/4 Air Fitting

Firestone W01-M58-6374 Metric Industrial Bellows Actuator with G3/4 Air Fitting


Product Detailed Datas


BrandAIRSUSTECHFirestone
Part Number1B6910 M8-G3/4W01-M58-6374
Gas HoleG3/43/4BSP
Threaded Hole2×M8×1.252×M8×1.25
Natural Height110 mm-
Min. Height-56 mm
Max. Height-152 mm
Cover Plate Diameter165 mm160 mm
Center to Center Distance89 mm89 mm
Distance Between Air Hole and Nuts38 mm44 mm

Replaces These Air Springs (Air Bellows)


Firestone Style: W01-M58-6374

Firestone Style: W01M586374

Firestone Style: W01 M58 6374
Contitech Air Bellows: FS 200-10

Contitech Air Bellows: FS 20010

Contitech Air Bellows: FS 200 10
Phoenix Part Number: SP 1B 12

Phoenix Part Number: SP 1B12

Phoenix Part Number: SP1B12
Dunlop(FR) Air Spring: 9 1/4x1 S09101

Dunlop(FR) Air Spring: 9'1/4x1 S09101

Dunlop(FR) Air Spring: 9''1/4x1 S09101
Bosch Air Bag: 822419004
Festo Air Spring Assembly: EB-250-85

Festo Air Spring Assembly: EB25085

Festo Air Spring Assembly: EB 250 85
Norgren Air Suspension: PM/31091(8 1/4x1)

Norgren Air Suspension: PM31091(8 1/4x1)

Norgren Air Suspension: PM 31091(8 1/4x1)


Product Technical Parameters


Dynamic Characteristics at 115 mm Design Height
Gauge Pressure (BAR)Load (kN)Spring Rate (kN/m)Natural Frequency (Hz)
35.641752.78
47.632292.73
59.622822.70
611.813362.66
713.813852.63

Force Table
Assembly Height (mm)Volume @ 100 BAR (cu cm)EFF Area @ 7 BAR (cu sq)kN Force
@ 3 BAR@ 4 BAR@ 5 BAR@ 6 BAR@ 7 BAR
13034671443.955.376.818.5110.05
12032651805.136.938.7510.7812.63
11030302136.118.2510.4012.7414.88
10027942396.839.3311.7414.3416.73
9025252637.6610.3012.9315.7518.37
8022562828.2411.0813.8916.9119.70
7019512978.6211.6514.6417.8220.76
6016503078.8812.0115.1418.4621.49

Key Advantages of AIRSUSTECH Convoluted Air Springs


1.Cost-Effectiveness & Versatility​​

  • Low initial investment with broad applicability across industries.
  • Simple operation reduces training time and operational complexity.

2.Durability & Maintenance-Free Operation​​

  • Extended service life outperforms traditional mechanical components.
  • Requires no lubrication or routine maintenance, minimizing downtime.

3.Flexible Performance & Robust Design​​

  • Allows dynamic expansion and contraction under varying loads.
  • High load-bearing capacity with a simple and convenient structure.

4.Smooth & Efficient Functionality​​

  • Friction-free operation ensures consistent performance.
  • Soft medium design reduces noise and vibration transmission.

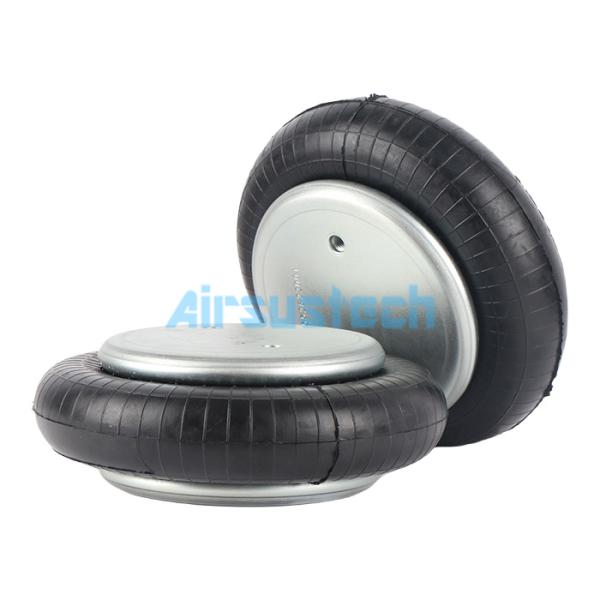

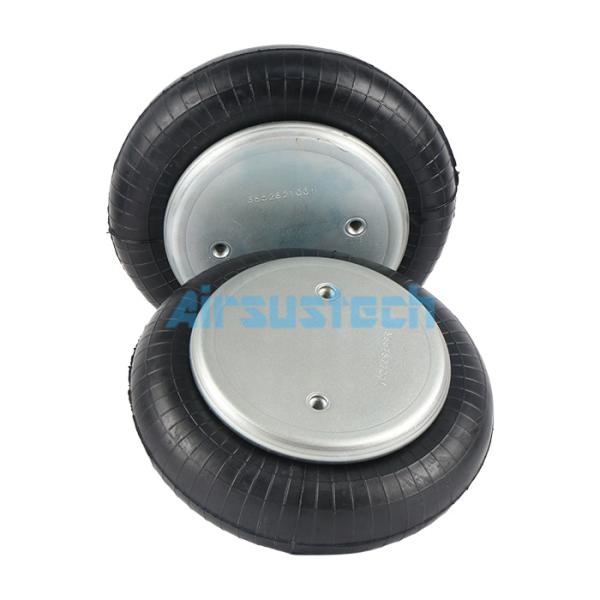

Product Photos
