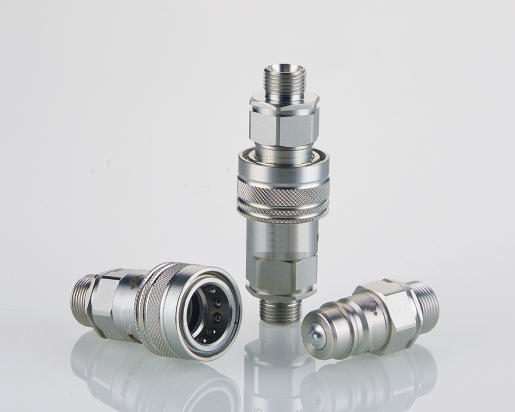

CB-10M Series Hydraulic Quick Couplings - ISO 7241-A Compliant & Leak-Proof for Industrial Use

Categories	ISO Standard Hydraulic Couplings
Brand Name:	carterberg
Model Number:	CB-SPS-10M
Certification:	IATF16949
Place of Origin:	China
MOQ:	Negotiation
Price:	Negotiation
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000~20000 pc/month
Delivery Time:	7-20 work days
Packaging Details:	carton
Type:	ISO 7241A
Material:	zinc-plated steel, stainless steel
Size:	1/4''-1''
Rated Pressure:	up 2900 PSI（20 MPa）
Sealant materials:	NBR (standard), Viton, EPDM (optional)
Connection:	plug and socket
Valves:	Ball / Poppet
Interchange:	Compatible with Parker 6600, Faster ANV, Stucchi A series, etc.

Contact Now

Add to Cart

Company Info.

Phidix Motion Controls (Shanghai) Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

CB-10M Series Hydraulic Quick Couplings - ISO 7241-A Compliant & Leak-Proof for Industrial Use

1.The CB-10M Series hydraulic quick couplings are mainly used for construction equipment, forestry equipment, hydraulic machinery and oil equipment and otherrequired hydraulic applications.

2.Poppet valves are available to prevent uncoupledleakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. H007 series conforms to the standard of ISO7241-A.
5. Compatible with PARKER 6600 Series ,FASTER ANV Series AEROQUIP 5600 Series and HANSEN HA 15000 Series.

Technical Specifications

BODY SIZE	Rated Pressure (PSI)	Rated Flow (GPM)	Temperature range(std seals)	Standard seal material
1/4"	5000	3	-20℃~+80℃	NBR
3/8"	4000	6
1/2"	4000	12
3/4"	3000	28
1"	3000	50
1-1/4"	3000	88
1-1/2"	2000	220
2"	2000	224

Dimensional Overview

Female (Socket)

Body Size	PARTNO.	LS	Φ D	HS	A	T
1/4"	CB-S2S-10M	53.5	26	22	13.1	G1/4 NPT1/4
3/8"	CB-S3S-10M	57.5	31.5	27	18.5	G3/8 NPT3/8
1/2"	CB-S4S-10M	66.5	38	27	23.8	G1/2 NPT1/2
3/4"	CB-S6S-10M	81.5	46	36	30.6	G3/4 NPT3/4
1"	CB-S8S-10M	96	54	41	36.7	G1 NPT1

Male (Plug)

Body Size	PARTNO.	LP	C	HP	A	T
1/4"	CB-P2S-10M	46	15	19	11.85	G1/4 NPT1/4
3/8"	CB-P3S-10M	53	21.5	22	17.3	G3/8 NPT3/8
1/2"	CB-P4S-10M	58	26.5	27	20.55	G1/2 NPT1/2
3/4"	CB-P6S-10M	66	28	34	29.1	G3/4 NPT3/4
1"	CB-P8S-10M	79	35	41	34.3	G1 NPT1
