SINOLIFT QSD30 QSD60 Rider Electric Tow Tractor

Categories Mate series lifter truck
Brand Name: SINOLIFT
Model Number: QSD30 QSD60
Certification: CE, ISO9001
Place of Origin: CHINA
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets/mouth
Delivery Time: 15 days
Packaging Details: Sandard Export Package
Product name: SINOLIFT QSD30 QSD60 Rider Electric Tow Tractor
Driving style: Pedestrian
Load capacity: 6000kg
Warranty: 1 year
After service: on-line service,free spare parts
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

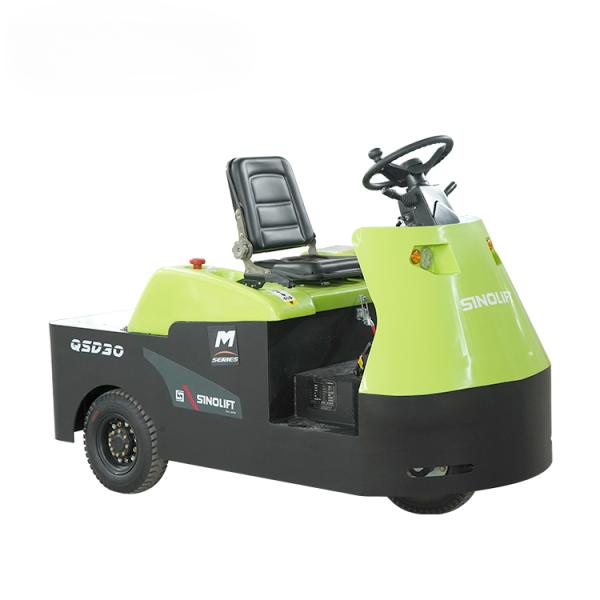

SINOLIFT QSD30 QSD60 Rider Electric Tow Tractor

https://youtu.be/884WS1T3A2k?si=tvLXZFLng4kHLdcS

Product Name

SINOLIFT QSD30 QSD60 Rider Electric Tow Tractor

The SINOLIFT QSD30/QSD60 rider-seated electric tow tractor incorporates German engineering and design, outperforming competitors in strength, versatility, and usability. Designed for efficiently towing heavy products and industrial equipment throughout your facility, this electric tow tractor operates with minimal noise, effortlessly moving materials from point A to point B. Ideal for distribution centers, factories, and warehouses, it ensures quiet and reliable performance in any demanding environment.

Features

  • Sleek modern styling and powerful towing capacity
  • Compact, rugged design ensuring excellent maneuverability and versatility
  • Digitally controlled traction for smooth, energy-efficient, and virtually silent operation
  • Ergonomically designed operator's compartment for enhanced comfort
  • Heavy-duty construction for high-performance applications
  • Integrated chassis suspension and low center of gravity delivering superior anti-roll stability and handling

Product Specifications

ldentification1.1ManufacturerSINOLIFT
1.2ModelQSD30QSD60
1.3Power TypeElectric
1.4Type of operationSeated
1.5Steering ModeElectric Power Steering
1.6Wheelbaseymm11101110
Weight2.1Total Weight(with battery)kg9851180
2.2Axle Load(unladen): Drive side/Load-bearing sidekg//
Dimension3.1Overall lengthL1mm20302030
3.2Overall widthW1mm10201020
3.3Overall heighth5mm13501350
3.4Couping Height(Hook center above ground)h1mm300/350/400300/350/400
3.5Standing Platformh2mm965965
3.6Ground Clearance at the center of wheelbase (Min)m1mm110110
3.7Turning RadiusWamm15201520
Tyre4.1Tyre TypeInflatable rubber wheel
4.2Tyre Size(Front)mm4.00-84.00-8
4.3Tyre Size(Rear)mm4.00-84.00-8
4.4Wheels Quantity, front/rear (x=driving wheels)1X/21X/2
Performance5.1Traveling Speed(laden/unladen)Km/h7.5/157.5/15
5.2Rated Draw-bar PullFN38004500
5.3Max.Gradient Performance S25min laden/unladen)%6/156/15
5.4Service Brake TypeHydraulicHydraulic
5.5Parking Brake TypeMechanicalMechanical
Power Unit6.1Drive Motor Rating(AC) S2-60minkW55
6.2Battery Vo ltage/Capacity K5V/Ah48/20048/350
6.3Battery Weightkg360545
Others7.1Controller BrandCURTISCURTIS
7.2Controller Model1232SE1232SE
7.3Sound level at the driver's ear according to EN 12053dB7070
