LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals

• Pin: 9 Pin
• Current Rating(A): 5A Max
• Material: Metal+plastic
• Conenction Way: Push-button snap fastener
• Operating Voltage: 250V Max
• Assembly Wire: IP-Rated Locking Gland
• Mounting Type: Wire-to-Wire
• Out Door UV Resistance: Pass
• Cable Jacket OD: 0.34-0.75 mm²

1. Material & Performance:
   The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
2. Secure Locking Mechanism:

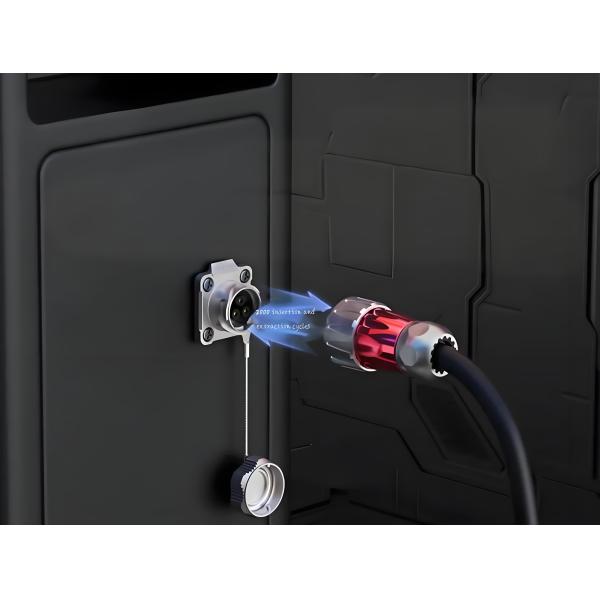

   Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
3. Waterproof Design:
   Standard IP67 rating (IP68 optional) provides precise waterproof protection.
4. Certifications & Compliance:
   Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.

• Automation Equipment
• LED Lighting
• Security Equipment
• Telecommunication Equipment
• New Energy
• Electronic Devies

This connector is designed for robust signal transmission in demanding environments. It is ideal for industrial automation, outdoor equipment, marine electronics, and any application requiring reliable cable-to-cable connections with waterproof protection. The 5A current rating and 9-pin configuration make it suitable for low-power control systems, sensor networks, and data communication setups.

The metal shell provides superior mechanical strength, EMI shielding, and durability against physical impacts and corrosion. The plastic interface ensures lightweight insulation and resistance to environmental factors like moisture, UV exposure, and chemicals. Together, they offer a balanced combination of protection, longevity, and reliable signal integrity.

Yes, the LP20 connector features a waterproof design with IP67 or higher ratings (depending on configuration), meaning it can withstand temporary submersion in water (up to 1 meter for 30 minutes). The solder terminals ensure a secure, gas-tight connection when properly installed, preventing moisture ingress. For specific certification details, refer to the product datasheet or contact our support team.
