Industrial 8-Port PoE Gigabit + 4 SFP + 2x10G SFP+ Hardened Switch
Overview
The LNK-IMC2X4S8GP Series is an industrial-grade Ethernet switch featuring 8
PoE-enabled Gigabit ports, 4 Gigabit SFP uplinks, and 2 high-speed 10G SFP+ slots.
Designed with a rugged aluminum case, wide -40°C to 80°C operating range, and
redundant power inputs, it ensures reliable connectivity for mission-critical networks such
as IP surveillance, wireless backhaul, and industrial automation.
Features
High-density ports: 8x Gigabit PoE, 4x Gigabit SFP, 2x 10G SFP+ uplinks
240W PoE budget to power IP cameras, APs, or VoIP phones
Rugged design with IP40 aluminum housing & wide temp tolerance (-40°C~80°C)
Advanced performance: Jumbo frames up to 9K, 8K MAC address table, 2.75M buffer
Reliable power: Dual redundant 48~57VDC inputs with overload & reverse polarity
protection
Industrial compliance: Meets EN/IEC standards for ESD, surge, and vibration immunity
Technical Indexes
Standards: | IEEE802.3 10BASE-T |
IEEE802.3u 100BASE-TX/FX | |
IEEE802.3ab 1000BASE-T | |
IEEE802.3z 1000BASE-X | |
IEEE802.3ae 10GBase-R | |
IEEE802.3p QoS | |
IEEE802.1d Spanning Tree | |
Forward & Filtering Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |
1,488,000,000pps (10000Mbps) | |
Packet Buffer Memory: | 2.75M bits |
Processing Type: | Store-and-Forward |
Max Packet Length: | 9K Bytes Jumbo Frame |
Address Table Size: | 8K MAC Addresses |
Interface | |
Connector: | 8 x RJ45 |
Optical Port: | 4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
PoE (Power over Ethernet) | |
Standard: | IEEE 802.3at Power over Ethernet Plus |
IEEE 802.3af Power over Ethernet | |
ort: | RJ45 |
Power Pin Assignment | 4/5(+), 7/8(-) |
PoE Budget: | Up to 240-watt PoE budget |
Environmental | |
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 200,000 hrs |
Electrical and Mechanical | |
Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
Power Consumption: | 8W Max.(PoE in Use<240W) |
Protection: | |
Power Input Overload: | Automatic Resettable |
Reverse Polarity: | Present |
LED Indicators: | |
Power: | Power Status |
Ethernet(Per Port): | Link/Activity |
PoE (Optional) | PoE Status |
Fiber: | Gigabit SFP Port: F1~F4 |
10G SFP+ Port: G1, G2 | |
Dimensions (WxDxH): | 149 x 114 x 50 mm |
Weight: | 0.55Kg |
Casing: | Aluminum Case |
Mounting Options: | DIN-Rail mount |
Regulatory Approvals | |
ISO9001 | |
EN55022:2010+AC: 2011, Class A | |
EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
EN 61000-3-3: 2013 | |
EN55024:2010 | |
IEC 61000-4-2: 2008 (ESD) | |
IEC 61000-4-3: 2010 (RS) | |
IEC 61000-4-4: 2012 (EFT) | |
IEC 61000-4-5: 2014 (Surge) | |
IEC 61000-4-6: 2013 (CS) | |
IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
Model | Description |
LNK-IMC2X4S8GP | Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
► SFP module is to be purchased separately. | |
Mounting Options | ► Default DIN-Rail Bracket installed |
Power Options | |
► Power Supply is to be purchased separately. |

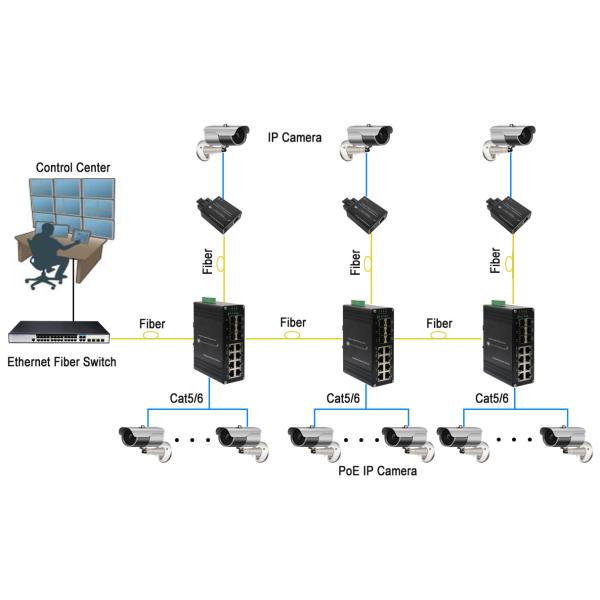

Application
|
