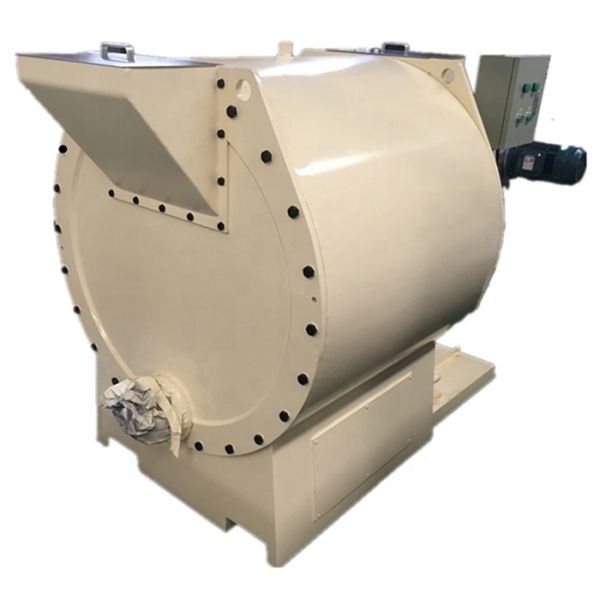

500L Chocolate Conche Machine 380V 3Phase for Cocoa Processing

500L Chocolate Conche Machine 380V 3Phase for Cocoa Processing

500L Chocolate Conche Machine 380V 3Phase for Cocoa Processing
500L Chocolate Conche Machine 380V 3Phase for Cocoa Processing
Categories Chocolate Conche Machine
Place of Origin: Jiangsu, China
Certification: ISO9001 CE
MOQ: 1
Price: $9,900
Voltage: 380V 50Hz 3Phase or Customized
Power: 17
Dimension: 2465*1146*1312mm
Weight: 2572KG
Capacity: 500L
Material: Carbon Steel Or Stainless Steel
Liners material: 65# Manganese steel
Grinding time: 8-10h
Grinding fineness: 20~25micron
Main motor power: 15
Electrical heating power: 5
Main Axle Speed: 33rpm
Blades material: Manganese steel
Control type: Control panel (PLC optional)
Water system: Automatic temperature
Contact Now
Company Info.
Suzhou Harmo Food Machinery Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

500L Chocolate Conche Machine 380V 3Phase for Cocoa Processing

Products Description
Application:

Chocolate conche refiner is the universal solution for making pure chocolate, compounds,
coatings, pralines, truffles and fillings, etc from small to medium capacities.

Our chocolate conche refiner is versatile which means 3 in 1 manufacturing solution fullfillng the function of raw materials
mixing, refining and conching. Once a mixed mass is procured, the refining and conching process will start.

Our chocolate conche refiner has a main shaft which equipped with blades and with an automatic pressure adjustment motor to adjust the pressure on the raw materials between the baldes and lining bars. It allows reliable process control to achieve and maintain constant mass quality between batches.

Moreover, our conche refiner has solenoid valve and automatic temperature water system. It makes proper temperature inside conche refiner come true and customer will obtaine delicate chocolate mass.
Technical parameters
Model/Project
20L
100L
500L
1000L
1500L
2000L
3000L
Maximum capicity(L)
20
100
500
1000
1500
2000
3000
Grinding Fineness(micron)
20-25
20-25
20-25
20-25
20-25
20-25
20-25
Main Axle Rotating Speed(rpm)
93
48
33
35
35
35
35
Grinding time(h)
8-10
12-16
16-22
16-22
16-22
16-22
16-22
Main moter power(kw)
1.5
5.5
15
22
30
37
45
Electrical heating power(kw)
0.6
2.5
5
2×2
6
3×2
12
Weight(kg)
295
1050
2572
3050
4850
5350
7500
Outside dimensions(mm)
920×600×1110
1200×1150×1050
2465×1146×1312
2627×1280×1520
2918×1650×1920
3040×1912×1920
3450×2016×2280
Product Picture
Detail Picture
Features:
1. Material of blades and lining bars are Manganese steel which with long living time. Moreover, every piece of lining bars will
be processed and strengthened by our special heating system.
2. It’s controlled by control panel. But PLC control is optional;
3. It’s suitable for medium and big capacity chocolate manufacturers and confectionery manufacturers;
4. Our conche refiners are made by strict manufacturing technique, so its performance is stable always.
Processing Picture:
Workshop
1.Since our universal chocolate conche refiner is very convenient for customers in chocolate industry and confectionery industry,
it’s one of our hot sale products always.
2.We can make 50 sets of chocolate conche refiner/month. Moreover, except motor and electrical components, almost all parts are made by ourselves. So we can control our quality very well.
Company Profile
Suzhou Harmo Food Machinery is founded in Suzhou, China. We are professional chocolate machine supplier with full set of chocolate machine manufacturing facility. Except motors and electrical components, almost all parts are made by ourselves, so we can control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia. What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
Certifications
Product packaging
FAQ

Q1: Can you provide invitation letter for customers and arrange pick-up at the airport, if
they want to visit your factory?
A1: Yes. We can provide invitation letter and arrange our driver or sales to pick up customers at Shanghai airport or train
station.
Q2: What is your warranty period?
A2: Our warranty is 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q4: Can you supply machines which conform to European Standard or American standard?
A4: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.


Q5: What can we do if goods were damaged during shipping?
A5: Firstly, We will pack goods and fix them well in our factory;
Secondly, If goods were damaged during sea shipping, we will deliver parts to you try our best. So you can replace damaged parts
and run machines ASAP;

Q6: Can you arrange loading in your factory if customer bought products from different suppliers?
A6: Yes,we can load all products in our factory and ship all goods by one or two containers.
Q7: Do you provide installation and commissioning service?
A7: Yes, we can deliver our technician to do installation and commissioning in customers’ factory.
After installation, our technician will provide training for stuff in the factory.
Q8: Do you provide recipe if customer buys whole production line?
A8: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q9: Do you provide instruction manual and maintenance schedule?
A9: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q10: Can you make customized machine?
A10: Yes, we can customize the machine according to the final product. Also we can provide turnkey project for our customers.
