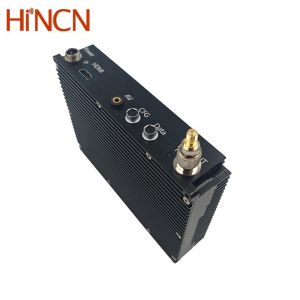

10W 20W Wireless Signal COFDM Transmitter With AES256 Encryption ODM

10W 20W COFDM UAV Video Transmitter With AES256 Encryption And Low Latency H.265

Key Features:

• COFDM modulation make it a perfect choice for Military and Emergency communications.
• H.264/H.265 video compression.
• Full HD resolution, support multiple video formats.
• Supports two channel videos transmission synchronously(optional).
• High security with AES256 encryption.
• Modular design with excellent heat dissipation capability.
• Effective in NLOS and high-speed mobile environment.

Overview:

HCT531 UAV video transmitter is specifically designed for use with HD or SD cameras, it's a outstanding miniature wireless video transmitter, designed fto capture real time, high quality videos from various devices, such as Point of View Cameras, UAV,UGV,Body Cams,Concealments, and sport cameras.

The UAV video transmitter features HDMI or AV inputs, adopts COFDM modulation technology and H.264/H.265 encoding, and is capable of achieving low latency video audio transmission in high-speed movement and NLOS (none line of sight) conditions, providing long range, reliable HD wirless video transmission.

Technical Specifications:

Interface Signal:

Frequently Asked Questions:

Q1. Does your 10 watts/ 20 watts COFDM Wireless video transmitter support changing frequency to be 1.2G/ 1.4G?

A:The transmitter frequency range is 160MHz~2700MHz, but our COFDM wireless receiver only supports 170~860MHz, so if you want 1.2G or 1.4G, We suggest to intall a frequency down converter at the receiver end.

Q2. Does the wireless video transmitter support SDI video input?

A: Yes, We have different kinds of wireless video transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input, please just let us know what video type you prefer. We will introduce them to you accordingly.

Q3. What's the max distance for the 10W PA transmitter?

A: For UAV application, the transmission range is about 100km, The flight altitude of the UAV Drone is about 500 meters., and put the antennas of receiver as high as possible.

Q4. Does your transmitter and receiver support standard DVB-T protocol?

A: Yes, it supports 3 working modes:

1. Standard DVB-T protocol, normal DVB-T can get the transmitter signal, no encryption and decrryption function.
2. COFDM protocol, support TX encryption and RX decryption, support H265 and H264 encoding, but no super low latency.
3. COFDM low latency protocol, H264 encoding with low latency, support TX encryption and RX decryption function.
