| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | MingTong |
| Model Number: | GYXY |
| Certification: | ISO |
| Place of Origin: | Dong Guan China |
| Price: | 500-3000RNB/KM |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 200km/Day |
| Delivery Time: | It depends on the actual situation. |
| MOQ: | 20km |
| Packaging Details: | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Product Name: | GYXY |
| Fiber Type: | G652D Single Mode |
| Fiber Count: | 2-24 Core |
| Structure: | Unitube |
| Strength Member: | Two Steel Wire |
| Highlight:: | GYXY Loose Tube Fiber Optic Cable, GYXY loose tube fibre cable, Non Armored loose tube fibre cable |
| Name: | Outdoor Optical Cable |
| Company Info. |
| Dongguan Mingtong Optoelectronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description:
The structure of the GYXY optical cable is to sleeve 250µm optical fibers into a loose tube made of high modulus material. The loose tube is filled with a waterproof compound, and the loose tube is added with a water blocking material to ensure the longitudinal water resistance of the optical cable. Two parallel steel wires are placed on both sides After extruding polyethylene sheath into cable.
Features:
1. Has good mechanical properties, temperature characteristics and
fire resistance characteristics
2. The loose tube material itself has good hydrolysis resistance
and high strength
3. The sleeve is filled with special grease to protect the optical
fiber critically
4. Two parallel steel wires ensure the tensile strength of the
optical cable
5. PE sheath has good resistance to ultraviolet radiation
6. Small diameter, light weight, easy to lay
7. Long delivery length
8. Storage and use temperature -40℃ ~ +70℃

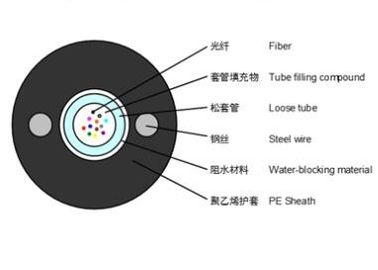

Structure:
Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.
1. Optical fiber in the central loose tube with filling compound,
2. Two parallel steel wire strength member
3. PE outer sheath

|
