| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | MingTong |
| Certification: | ISO |
| Place of Origin: | Dongguan CHINA |
| Price: | 500-3000RNB/KM |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 200km/Day |
| Delivery Time: | It depends on the actual situation |
| MOQ: | 20km |
| Packaging Details: | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Waterblocking Material: | Water Blocking Tape Or Filling Compound |
| Fiber Type: | G657A1 Or A2, G652D |
| Sheath Material: | Black Polyethylene (PE) |
| Highlight: | Cst Fiber Optic Optical Cable, Parllel Wires Optical Cable, Cst Fiber Optic Cable |
| Central Strengthen Member:: | FRP |
| Fiber Core: | 2-288 Cores |
| Type: | ADSS Optical Fiber Cable |
| Name: | Outdoor Optical Cable |
| Company Info. |
| Dongguan Mingtong Optoelectronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

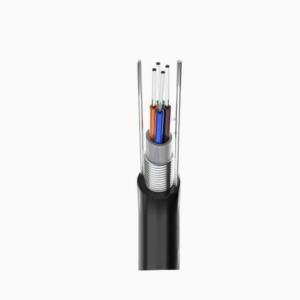

2-12 Cores Uni-Loose Tube Parllel Wires Optical Cable Cst Fiber Optic
Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid
yarn.Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span
can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent
lightning resistant.
5. Equal distribution of aramid yarns with good production process,
excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of
cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to
telecom network;
2. For power transmission system, much thunder areas and high
electro-magnetic inerference.
Technical Date:(for 24 core fiber, 800m span)
| Fiber Optic Range | Span(M) | Out-diameter(MM) | Module(N/) | Linear Expanding Coefficient(1/K) | Weight(KG/KM) | Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. | ||||||
| 24 | 800 | 15.5 | 2.86X10 | 0.02X10 | 200 | 29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. | ||||||
| 24 | 800 | 14.5 | 2.33X10 | 0.11X10 | 185 | 19600 |
Our Quality & Service
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest
quality optical fiber cable products & services to our customers
by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's
requirements;
3. Ensuring that our people are properly trained so that they are
better able to serve our customers.
Our Certification
REACH,ROHS,TLC Telecom Certificate,Environmental Management System
Certification,ISO9001:2000,Utility Model Patent Certificate
|
