Outdoor Armoured Fiber Optic Cable GYTA53 GYTS53 Direct Buried Underground Anti-Rodent Optical Fiber Cable

Description:

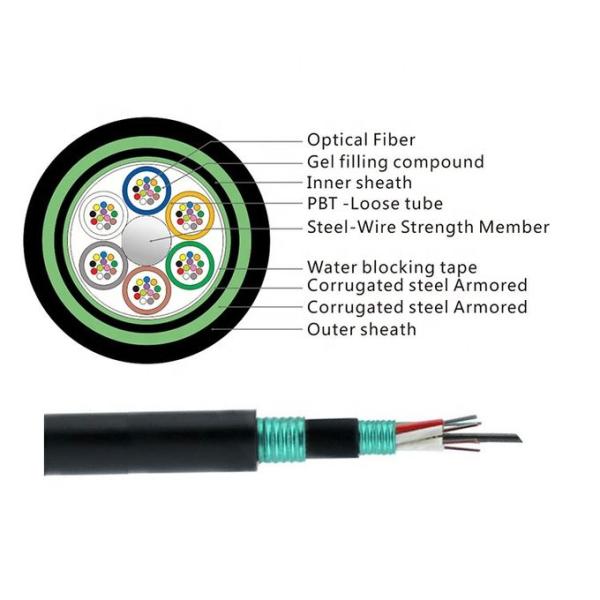

GYTS53 / GYTA53 The undeground cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The center of the core is a metal reinforcing core, and the loose tube (and the filling rope) is twisted around the central reinforcing core into a compact and round core, and the gap in the core is filled with a water-blocking filler. After the plastic coated aluminum strip (APL) or steel tape is longitudinally wrapped, a polyethylene inner sheath is extruded, and the double-sided coated steel strip (PSP) is longitudinally wrapped to extrude the polyethylene outer sheath. After being bundled with a single thin round wire, the polyethylene outer sheath is finally extruded into a cable.
Structure:
• Single wire center reinforcement core
• The loose tube is filled with special waterproof compound
• Full core filling
• Plastic coated aluminum tape (APL) moisture barrier
• Double coated steel strip (PSP) improves the moisture resistance of the cable
• Good water blocking material prevents longitudinal leakage of cable

Features:

• Has good mechanical properties and temperature characteristics
• Single thin round wire armor makes the cable have stronger tensile properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special grease to protect the fiber
• Good pressure resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable

Specification:

Application:

• Direct burial

• Connecting communication equipments

• Multi-cores wiring system in data center

Standard:

YD/T901-2009

Related Products:

Company Overview:

DONGGUAN TW-SCIE CO., LTD. is powered by 15 years of collective experience in the field of Optical communication products.
We have rich experience in the international trade and highly appraised by our international customers for our integrity, good quality and on time delivery.
We have a vast clientele in Europe , South America and Southeast and Asia.
Products supplied by DONGGUAN TW-SCIE CO., LTD. are engineered for local and international customers to meet a variety of environmental operating conditions and to meet local and international standards.
We always strive to create a favourable environment that encourages innovation and technological development to our customers


Shipping and Packing:
Wooden Drum
