| Categories | One Way Bearings |
|---|---|
| Model Number: | CSK |
| Brand Name: | SUMA |
| Place of Origin: | Jiangsu, China |
| MOQ: | 10 |
| Price: | $1.70-2 |
| Precision Rating: | P6 |
| Seals Type: | Open Zz 2rs |
| Material: | GCr15 |
| Weight: | 0.21kgs |
| Outer Diameter: | 62mm |
| Inner Diameter: | 30mm |
| Overrunning Speed: | 4200r/min |
| Thickness: | 16mm |
| Torque Capacity: | 85Nm |
| Dynamic Load: | 11.7kN |
| Static Load: | 6.45kN |
| Drag Torque: | 4.4Ncm |
| Bearing Series: | 6206 |
| Keyway Type: | Sprag type |
| Formchromed Sprags: | Yes |
| Company Info. |
| Changzhou Tianniu Transmission Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

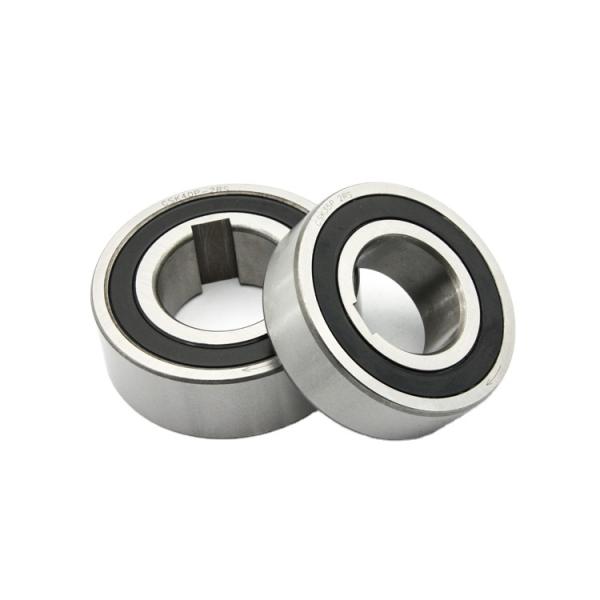

One Way Sprag Clutch Bearing CSK20PP CSK 20PP CSK20 PP

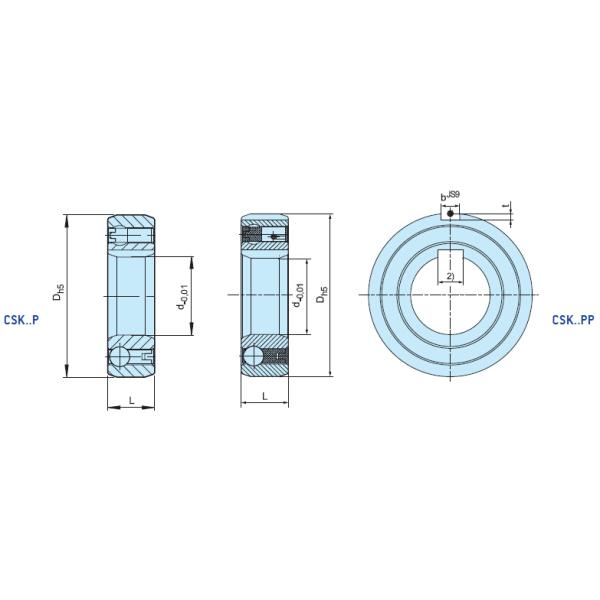

CSK series are sprag type one way freewheel bearings.
CSK P has one keyway in the inner side.
CSKPP has two keyways on both inner and outer side.
CSK P 2RS , has one keyway and seals to protect from water resistance, and it is 5mm wider than CSKP and CSKPP.
Product name | Sprag bearing |
Model | CSK30PP2RS |
Material | GCr15 |
Inner diameter | 30mm |
Outer diameter | 62mm |
Thickness | 16mm |
Torque capacity | 85Nm |
Weight | 0.21kg |
Package | Carton Box / Wooden box |
Payment terms | TT. L/C, D/A,D/P,Western Union |
Delivery time | 2-4 days for the sample, 7 days for big order |
Catalogue of 6202 6203 6204 6205 6206 bearing for your choice
Tips: All the CSK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
| dynamic | static | |||||||||||
| CSK..P | d | TKN1) | nmax | D | L | b | t | C | C0 | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |||
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
| 40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
| CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
| 45 | _ | 218 | 1600 | 85 | 19 | 12 | 2.5 | 18.36 | 15.35 | 0.44 | 9.3 | |
| 50 | _ | 230 | 1500 | 90 | 20 | 12 | 2.5 | 19.53 | 17.68 | 0.49 | ||
| CSK..P-2RS | 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
| 15 | – | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
| 17 | – | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
| 20 | – | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
| 25 | – | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
| 30 | – | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
| 35 | – | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
| 40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |||
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack the goods?
Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
|
