| Categories | One Way Bearings |
|---|---|
| Model Number: | CSK40/ CSK40PP-2RS |
| Brand Name: | SUMA or OEM |
| Place of Origin: | Jiangsu, China |
| MOQ: | 10 |
| Price: | $5.40-6 |
| Precision Rating: | P0 |
| Seals Type: | sealed |
| Material: | GCr15 |
| Weight: | 0.5kgs |
| Outer Diameter: | 80mm |
| Inner Diameter: | 40mm |
| Overrunning Speed: | 3000r/min |
| Thickness: | 22mm |
| Torque Capacity: | 325Nm |
| Structure: | Sprag type |
| Dynamic Load: | 15.54kN |
| Static Load: | 12.25kN |
| Drag Torque: | 7Ncm |
| Bearing Series: | 6201, 6202, 6203, 6204, 6205, 6206, 6207 |
| Max Speed: | 3000r/min |
| Company Info. |
| Changzhou Tianniu Transmission Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

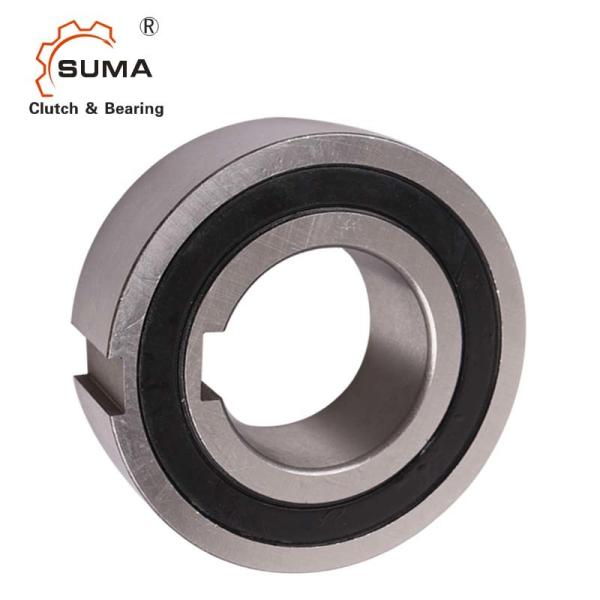

CSK40 CSK40PP 2RS Freewheel One Way Bearing CSK Sprag Clutch
Features of csk40 one way bearing: One way bearing CSK12 is a sparg type freewheel integrated into a 62series ball bearing( except size 8 and 40).
Packing details: bearing supported, delivered grease lubricated and protected against dust of more than 0.3mm.
DETAILS | |
Model | CSK40 |
Material | GCr15 |
Inner diameter | 40mm |
Outer diameter | 80mm |
Thickness | 22mm |
Torque capacity | 325Nm |
Weight | 0.5kg |
Structure | Sprag type |
Application | Textile machine, fans, ventilators, printing machine |
Package | Wooden box |
Payment terms | TT. L/C, D/A,D/P,Western Union |
Delivery time | 2-4 days for the sample, 7 days for big order |
Catalogue of csk40 one way bearing for your choice
Tips: All the CSK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.
SPECIFICATIONS | ||||||||||
Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||
dynamic | static | |||||||||
CSK(KK) | d | TKN1) | N max | D | L | C | C0 | TR | ||
[mm] | [Nm] | [min-1] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
8* | – | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 | |
12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |
15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |
17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |
20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |
25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |
30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |
35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |
40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |
CSK..2RS | 8** | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.8 | |
12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | |
15 | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | ||
17 | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | ||
20 | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | ||
25 | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | ||
30 | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | ||
35 | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | ||
40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the goods?
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
|
