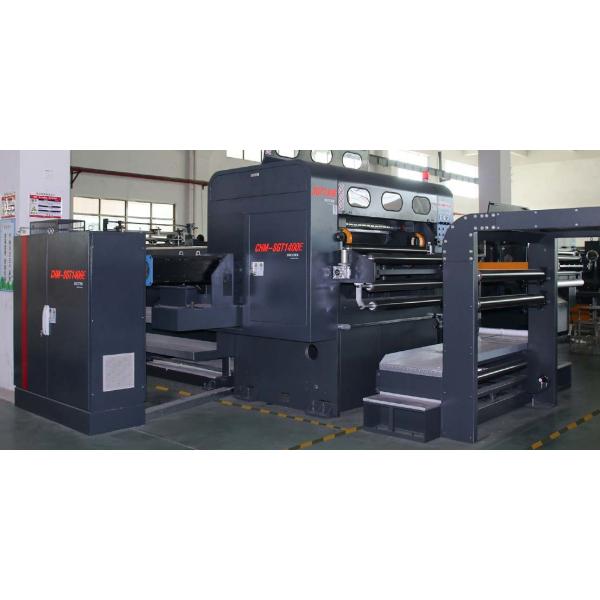

Sheet Reel To Sheet Cutter Machine Automatic Roll Paper Cutting Machine

Top and bottom Tool Apron to cut the paper. Specially cut thick paper,. The speed is 300m/min, the gram range of cutting is 40-1000g. A single sheet of more than 200g, such as 250 grams of paper, can be cut 4 rolls at the same time, improve work efficiency and increase production capacity. Its biggest advantage is that the cut paper has no paper hair, very clean, can be directly on the printing press, reducing secondary processing and reducing costs. The double knife belongs to the flying shear cutting, which is also called synchronous cutting or variable speed cutting. The cutting speed will be adjusted during the paper conveying process. The purpose of adjusting the knife speed is to ensure that the cutting speed and the paper conveying speed are reached when cutting paper. At this time, the speed is called synchronous cutting, so this The sample can ensure the flatness and cleanliness of the incision, so there is no paper hair in the incision.

High Precision Synchronize - fly Sheeter features fibre-less and clean cuts with high dimensional precisions. Best for board paper, art paper, kraft paper and packing paper or board etc.

• 1)Top Tool Apron Adopting cutting way of advanced, so as to decrease noise and load and prolong life of knife.
• 2)Bottom Tool Apron Tool Apron cast on time, then processing, with characteristic of stability.
• 3)Main driving roller: grainy surface, controlled by the air Pressure so as to grip the paper.

• 1)AC servo motor for reclaiming blade.
• 2)AC motor for conveyer paper.
• 3)Inverter motor for the secondly conveyer strap.
• 4)AC motor for up and down of Stacker.
• 5)AC motor for front jogger.
• 6)AC motor for windmill of collecting waste edge.
• 7)AC motor for unwind stand.

Put the paper roll diameter and paper weight number into touching screen, the tension will be controlled by computer automatically.

Precision sensing nozzle which easily available and sensitive Fast detects various web lines for EPC system.

FAQ
1.Our cooperative partner

paper mill:Sun Paper,ND Paper ,Double A,APP, Onhing Paper,MYS,.Chenmingpaper.JHE paper ,C&CJOINTPRINTING CO.(HK)LID etc.

2.What kind of quality service do you offer to me?
All the parts of commodity will be ensured to be used for one year
CHM Machinery will maintain them for life.
Outside the warranty period, the Seller shall provide spare parts and services at a preferential price as soon as possible.

3. How do we guarantee quality?

Always pre-production samples before mass production;

Always final inspection before shipment;

4. What can you buy from us?

Paper sheeter machine, paper cutter, paper sheet machine, copy paper and packaging machine, cut-to-size paper and packaging machine. Why should you buy from us instead of other suppliers?

CHM is the only Hong Kong brand sheet machinery producer in China.

With the second largest facility in the world, nearly 140.000 square meters.

As a sheet solution expert, with the best R&D team and the highest number of patents, more than 110 items.

5.Who are we?

Our headquarter is located in Guangdong, China, started in 2010, selling to East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), Eastern Europe (2.00%), South Asia (2.00%), Southern Europe (2.00%), Southeast Asia (2.00%), Central America (2.00%), Western Europe (2.00%), North America (2.00%), Middle East (2.00%), Oceania (2.00%). Totally there are about 101-200 people in our office.
