| Categories | A4 Paper Cutting And Packing Machine |
|---|---|
| Brand Name: | CHM Machinery |
| Model Number: | CHM-A4-2 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |
| Delivery Time: | 90 days |
| Packaging Details: | Stretch Film, shipping mark, bubble wrap |
| Price: | 165000-250000 |
| Paper Width: | Gross width 850 mm, net width 840mm |
| Cutting numbers: | 2 cutting-A4 210mm (width) |
| Paper roll's diameter: | Max.Ф1400mm. Min.Ф600mm |
| Paper core's diameter: | 3"(76.2mm)or according to the clients' demand |
| Packing Paper grade: | High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
| Paper weight: | 60-100g/m² |
| Sheet length: | 297mm (specially design for A4 paper, the cutting length is 297mm) |
| Ream amount: | 500 sheets Max. Height: 45-55mm |
| Company Info. |
| Dongguan Chun Hing Mechanical Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

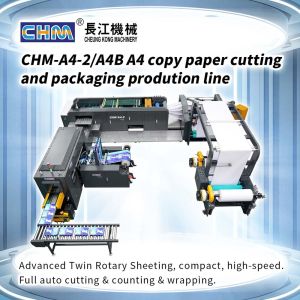

CHM-A4-2. A compact space saving, high efficiency A4 copy paper
sheeting and packaging production line adopts the most advanced
Twin Rotary Knife Synchronize Sheeting technologies. Capable of
fully automatic ream and box wrapping.
This is samll A4 copy paper cutting and packaging machine
production line adopts the most advanced Twin Rotary Knife
Synchronize Sheeting technologies.2 rolls and 4 pockets, Output 10
reams/min, occupies only 8*9 meters, this machine is more suitable
for users with a monthly production capacity of 200-300 tons.
| Parameter | Details |
|---|---|
| Model | CHM-A4-2 |
| Paper Width | Gross width 850 mm, net width 840 mm |
| Cutting Numbers | 2 cutting-A4 (210 mm width) |
| Paper Roll's Diameter | Max Ф1400 mm, Min Ф600 mm |
| Paper Core's Diameter | 3" (76.2 mm) or according to client demand |
| Packing Paper Grade | High-grade copy paper, high-grade office paper, high-grade free wood paper, etc. |
| Paper Weight | 60-100 g/m² |
| Sheet Length | 297 mm (specially designed for A4 paper) |
| Ream Amount | 500 sheets Max, Height: 45-55 mm |
| Production Speed | Max 0-250 m/min (depends on paper quality) |
| Max Numbers of Cutting | Max 841 cuts/min |
| Output of the Ream | Max 13 reams/min |
| Load of Cutting | 100 g/m² (1×100 g/m²) |
| Cutting Accuracy | ±0.2 mm |
| Cutting Condition | No speed variation, no breaks, cut all paper at once with eligible paper |
| Main Power Supply | 3*380 V / 50 Hz |
| Voltage | 220 V AC / 24 V DC |
| Power | 23 KW |
| Air Consumption | 200 NL/min |
| Air Pressure | 6 bar |
| Edge Cutting | 5~15 mm * 2 |
| Safety Standard | Designed according to China's safety standards |
1)Machine Type Each machine table can take 2 sets of shaftless paper rack.
2)Diameter of the paper roll Max. Ф1400mm
3)Width of the paper roll Max. Ф850mm
4)Paper rack’s material Steel
5)Clutch device Pneumatic Braker and control
6)Clip arm’s adjustment Manual adjust by oil pressure
7)Paper core demanding 3”(76.2mm) air expansion shaft chuck
Type: Automatic tension control system
1) When the paper through inductor, that automatic feedback to the PLC control system to increase brake load, increase or reduce the tension that control the paper tension automatically.
Type: High precision cutting knife system
1) Upper and lower knives are rotary make the cutting accuracy is very precision.
2) Anti-curve device Include one set of square bar and steel wheel. When the curve paper through paper edge unit that can adjust the paper square and let it flat.
3) 5 sets slitting knives Upper slitting knife take by air pressure and spring.Lower knife connect with bear drive (the diameter is Ф180mm ) and move with spring. The upper and lower round knife is made by SKH.The lower slitting knife (diameter is Ф202mm) and drive with in-phase belts. The lower slitting knife is 5 groups, each group have two knife edge.
4) Paper feeding wheel
Upper wheel:Ф200*550mm (rubber covered)
Lower wheel:Ф400*550mm (anti-glide)
5) Cutting knife group
Upper cutting knife:1 pcs 550mm
Lower cutting knife:1 pcs 550mm
6) Driving group(High precision bear and belt drive)
7) Main driving motor group
Type:Transporting system
1) Transporting by level and overlapping device
2) High speed transporting belt and press wheel. Upper and lower transport belt corresponding pressure paper, automatic tension and close system.
3) Static removal device(Include static removal bar and Negative ion generator)
Type: Paper collecting system
1) Automatic device for paper stack up and down. 2) Jogging device and clap paper tidy. Control by air vat, when design sheet, the cylinder up and down by cut paper bar. After transport paper to belt, transport to the pack table cross.
| Parameter | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Ream Packing Height | Max 55 mm; Min 45 mm |
| Packing Roll Diameter | Max 1000 mm; Min 200 mm |
| Packing Roll Width | 560 mm |
| Packing Sheets Weight | 70-100 g/m² |
| Packing Sheets Grade | High-grade copy paper, high-grade office paper, high-grade offset paper, etc. |
| Design Speed | Max 40 reams/min |
| Operation Speed | Max 35 reams/min |
| Packing Condition | No speed variations, no breaks, cut all paper at once with qualified packing paper |
| Driving | AC Servo Precision Control |
| Main Power Supply | 3*380 V / 50 Hz (or as required) |
| Voltage | 220 V AC / 24 V DC (or as required) |
| Power | 18 KW |
| Compressing Air Consumption | 300 NL/min |
| Air Compressor | 6 bar |
Included the following function: speed control, paper count, paper ream output, fault alarm and automatic stop(Indicate fault code shown on the panel screen).
Introduction
We are manufacturers,CHM Machinery only products paper sheeter
machine and A4 production line are designed for 2 series. CHM
making first paper rolls to sheet cutting machine and A4 production
line was produced in China.CHM Machinery was established in 2004.
After 21 years of hard work, it has developed into a professional
paper sheeter machine manufacturer with three factories.
The three factories in Guangdong, Shandong and Jiangsu have a total
area of nearly 140,000 square meters,becoming the world's second
largest sheeting machine manufacturer with independent production
capacity;We have the most professional after-sales team and
research and development, as far as we know, the single knife
sheeter in 2006 has been sheeter cutting paper rolls. Annual sales
of more than 200 units, sold to more than 100 countries around the
world.
We have many successful installation cases, we can checks whether the country has our equipment.
Please tell us your detailed requirements,According to your paper,
gram weight, width,capacity , make the most suitable for your paper
roll sheet cutting model.Please contact me if you have any
inquiries.
FAQ
1. What advantages do your A4 production line have?
We have the R&D capabilities, high-speed cutting technology, The machines operate 24 hours per day, with a maximum production capacity of 1600 tons. Our market share is 70%.
2. Do you have any cases?
Many paper mills use our equipment, such as ND paper ,Pakistan, Double A, Sun Paper, Industry.We can sent your country video with machine
3. Why choose you instead of other suppliers?
In China, the first paper sheeter machine and A4 copy paper production line were both developed by CHM Machinery. From 2004 to now, it has been more than 21 years. We have many customers who have been using our equipment for over a decade, and our engineers have more than 15 years of work experience.
4. How do we guarantee quality?
Always pre-production samples before mass production;
Always final inspection before shipment;
5.What kind of quality service do you offer to me?
All the parts of commodity will be ensured to be used for one year
CHM Machinery will maintain them for life.
Outside the warranty period, the Seller shall provide spare parts
and services at a preferential price as soon as possible.
|
