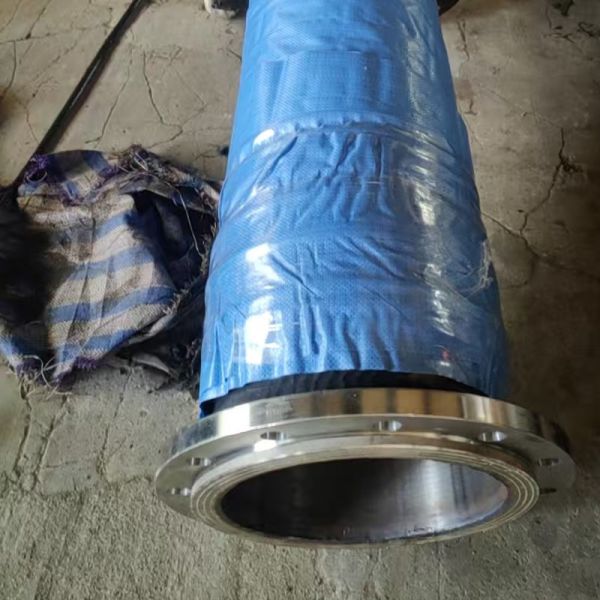

Water Discharge Hose Heavy Duty Rubber Leak Proof And Reliable Strength

Categories Discharge Hose Pipe
Brand Name: Hongruntong Marine
Model Number: HM-DHP97
Certification: Meets or Exceeds Rma and Iso Standards
Place of Origin: China
MOQ: 1
Price: $55-$965
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5789 Pcs Per Month
Delivery Time: 5-7 Work Days
Packaging Details: Wooden Pallets, Wooden Box
Name: Discharge Hose Pipe
Size: 1/2inch ~ 20 inch
Working pressure: < 25 Bars
Working temperature: -30 to +120 ℃
Material of rubber: NR, NBR, EPDM, CR and etc
Material of flange: Q235b Carbon Steel Paint
Reinforcement layer: High Tensile Steel Wire Spiral
Packing: Plastic Belt Packing
Length of each unit: < 50m
Color: Black
Application: Water Discharge, Irrigation, Construction, Mining
Feature: Lightweight, Flexible, and Easy to Handle
Warranty: 36 Months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Water Discharge Hose Heavy Duty Rubber Leak Proof And Reliable Strength

Water Discharge Hose Heavy Duty Rubber Leak Proof And Reliable Strength


Description


The ideal economical and lightweight solution for general water transfer, irrigation, dewatering, and construction site drainage. Designed for easy handling and maneuverability, this hose reduces worker fatigue and offers reliable, cost-effective performance for a wide range of low-pressure applications where extreme durability is not the primary concern.


( Case: A large agricultural co-op in Thailand needed an affordable and easy-to-handle solution for irrigating hundreds of small plots. Our lightweight PVC hoses were easy for workers to move and reposition daily, and their low cost allowed the co-op to outfit all their operations without exceeding their budget. )


Specifications


NameDischarge Hose Pipe
Nominal BoresFrom 150mm (6”) to 1200mm (47”)
LengthUp to 11.8 Metres (38ft)
Working PressureUp to 20 bar
Safety Factor4:1
Flange OptionsFixed, Swivel, Double-Flange and Built-in-Nipple Designs
FeaturesHeavy-Duty Robust Construction Designed to Handle Large Dredged Particles
Hoop-Ring or Spring-Wire-Helix Construction for Flexibility or Full Vacuum During Service
Tailor-Made Designs, Including Self-Floater, Suction Dredge Hose and Flexible Discharge Hoses
Suitable for Slurries Containing Rock, Shell and Coral

ModelI.D.W.P.B.P.Min Bending RadiusWear Layer
Thickness
Length
inchmmbarbarmmmmm
HM-DHP15061505-1015-308D10-2011.8
HM-DHP20082005-1015-308D10-2011.8
HM-DHP250102505-1015-308D10-2011.8
HM-DHP3001230010-2030-6012D12-2511.8
HM-DHP3501435010-2030-6012D12-2511.8
HM-DHP4001640010-2030-6012D12-2511.8
HM-DHP4501845010-2030-6012D12-2511.8
HM-DHP5002050010-2030-6012D12-2511.8
HM-DHP6002460015-2045-6015D20-3011.8
HM-DHP6502665015-2045-6015D20-3011.8
HM-DHP7002870020-2560-7515D30-5011.8
HM-DHP7503075020-2560-7515D30-5011.8
HM-DHP8003280020-2560-7515D30-5011.8
HM-DHP8503485020-2560-7515D30-5011.8
HM-DHP9003690025-3075-9015D30-5011.8
HM-DHP100040100025-3075-9015D50-7511.8
HM-DHP110044110025-3075-9015D50-7511.8

Product Features


Extremely Lightweight Flexible

Manufactured from high-quality PVC material, this hose is significantly lighter than rubber hoses, making it easy to coil, uncoil, and drag across fields or job sites, drastically improving operational speed.


Reinforced Construction

High-tensile polyester yarn braid reinforcement provides sufficient strength for typical water discharge pressures (e.g., up to 150 PSI), preventing bursting and elongating, ensuring dependable performance.


Weather UV Resistant

The PVC compound is treated with UV stabilizers to resist degradation from sunlight, preventing it from becoming brittle and cracking during extended outdoor use.


Smooth Interior for Efficient Flow

The smooth inner surface ensures efficient water flow with minimal friction loss, maximizing the output from your pump or water source.


Applications


Agriculture Irrigation

Crop irrigation, drainage of fields, and water transfer for farming and gardening applications.


Construction Site Dewatering

Pumping clean water from excavations, trenches, and foundations during the construction process.


Municipal Landscape Use

Drainage for parks, sports fields, temporary water diversion for events, and general-purpose water movement by municipal crews.


Why Choose Hongruntong Marine?


Cost Effective Sourcing

As a factory, we produce large volumes of high-quality PVC hose at a highly competitive price, providing exceptional value for budget-conscious projects.


Rapid Delivery Large Stock Availability

We almost always have large stocks of common diameters (1" to 4") in ready-to-ship lengths, ensuring you get the hose you need without long wait times.


Custom Printing and Branding

We can easily add custom printing (company name, product specifications) to the hose cover for branding and inventory identification purposes.


Reliable Quality for the Application

While not for heavy abrasion or oil, our PVC hoses are engineered to be the best-in-class for general water duty, offering a perfect balance of performance, weight, and price.


FAQ


1. Q: Is the hose drinking water safe?
A: Our standard PVC hose is not rated for potable water. For drinking water applications, we offer a separate hose made with FDA-approved materials and a different compound that doesn't impart taste or odor.


2. Q: What is the temperature range?
A: This PVC hose is designed for water temperatures between 0°C (32°F) and 60°C (140°F). It can become stiff in very cold weather and soften in high heat.


3. Q: Can it handle mild chemicals?
A: It has fair resistance to mild acids and alkalis but is not recommended for strong solvents, oils, or fuels, which will degrade the PVC material.


4. Q: What is the temperature range?
A: Temperature tolerance depends on the tube material. Standard rubber hoses typically handle -20°C to +80°C (-4°F to +176°F). Specialized hoses (e.g., EPDM for steam) can handle up to +150°C (+302°F) intermittently. Always confirm based on your media's temperature.
