Electric Gear Motor Tower Crane Swing 536-6580 / 587-4954 MOTOR GP-SWING

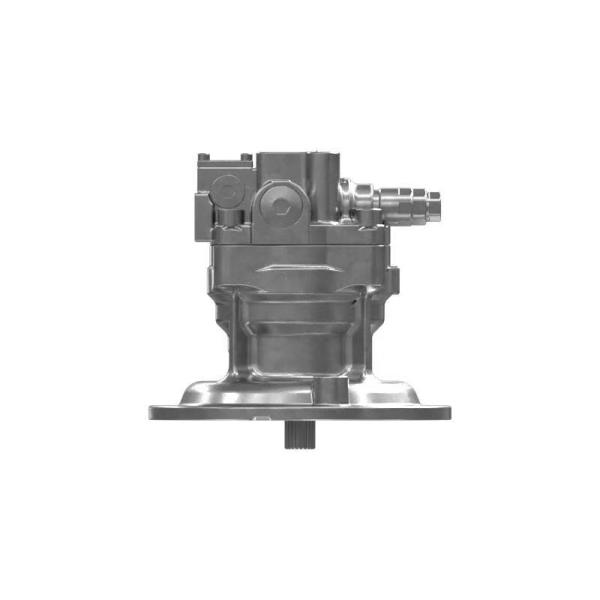

536-6580: PSF Motor Assembly

Technical Specifications for Part No. 536-6580
Material: Gray (Flake) Iron,Ductile (Spheroidal) Iron

The part number 536-6580 is a Swing Motor Group for Caterpillar equipment.

Detailed Overview of the Swing Motor Assembly

1. What is a Swing Motor?
   A swing motor is an essential hydraulic component in heavy machinery, particularly in excavators. Its primary function is to allow the entire upper structure of the machine—including the cab, boom, arm, and attachments—to rotate a full 360 degrees on the undercarriage.

   The 536-6580 Motor GP is a comprehensive assembly that typically consists of:

   • The hydraulic motor itself
   • A reduction gearbox (swing drive)
   • A parking brake
   • Potentially, the swing circle gear (pinion)

2. Primary Application: Caterpillar® Excavators
   This swing motor assembly is specifically designed for various models of Caterpillar excavators, including:

   • CAT 320D / 320D L
   • CAT 320D LN
   • CAT 323D L
   • CAT 324D / 324D L

   It's crucial to verify your machine's Serial Number against the part number to ensure proper compatibility, as different models may have variations.

3. Common Signs of a Failing Swing Motor
   If the swing motor requires repair or replacement, you may observe the following symptoms in your excavator:

   • Slow or Sluggish Swinging: Difficulty in turning the machine.
   • Complete Loss of Swing Function: The swing mechanism fails entirely.
   • Swing Drift: The upper structure moves or drifts on its own while stationary.
   • Strange Noises: Grinding, knocking, or whining sounds during operation.
   • Hydraulic Oil Leaks: Oil seeping from the motor or gearbox seals.

4. Important Considerations for Sourcing this Part

   • OEM (Original Equipment Manufacturer): This is the authentic Caterpillar part number. Buying from a CAT dealer ensures compatibility and reliability but can be pricier.
   • Aftermarket/Replacement Parts: Several reputable manufacturers produce high-quality compatible replacements for the 536-6580, often at a lower cost.
   • Rebuilt/Remanufactured Options: A cost-effective choice is to exchange your defective unit for a remanufactured one. This process involves disassembling, cleaning, replacing worn parts, and rebuilding to original specifications.

Summary

The 536-6580 is a complete Swing Motor Assembly (Motor GP) specifically utilized in Caterpillar 320D, 323D, and 324D series excavators, providing essential 360-degree rotation capabilities.
