| Categories | Galvanized Steel Grating |
|---|---|
| Brand Name: | LaiDi |
| Model Number: | G02 |
| Certification: | ISO9001:2015 |
| Place of Origin: | Hebei, China |
| MOQ: | 50 pcs |
| Price: | US$4-US$200 |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per day |
| Delivery Time: | 15-20 days |
| Packaging Details: | in bulk |
| Product Name: | Galvanized steel grating |
| Material: | Carbon steel |
| Surface Treatment: | Hot dipped galvanized |
| Color: | Sliver |
| Type: | Cross bar |
| Certificate: | ISO9001 |
| Application: | Office building |
| Warranty: | 1 year |
| Grate Mesh: | 40x100mm |
| Steel Thcikness: | 5.0mm |
| Company Info. |
| Anping Laidi Wire Mesh Products Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Product Name | Galvanized steel grating |
| Material | Carbon steel |
| Place of Origin | Hebei, China |
| Surface Treatment | Hot dipped galvanized |
| Color | Silver |
| Type | Cross bar |
| Certificate | ISO9001 |
| Application | Office building |
| Brand Name | LaiDi |
| Warranty | 1 year |
| Grate Mesh | 40x100mm |
| Steel Thickness | 5.0mm |

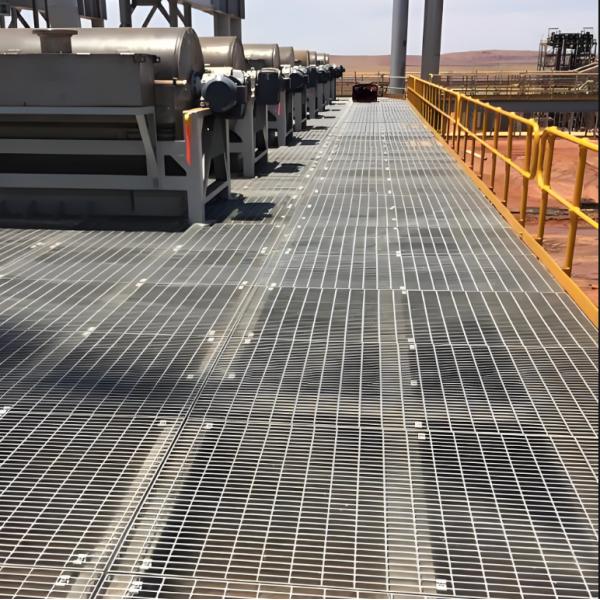

Heavy Duty Galvanized Grating 3CM Brico Depot Steel Grates For Driveways Grate
Steel grating is typically made from steel bars or flat steel that are welded or locked together to form a grid pattern. The bars are usually arranged in a parallel or perpendicular manner, creating an open grid with gaps between them. These gaps allow for the passage of air, water, and light, while still providing a sturdy surface for walking or supporting heavy loads. There are different types of steel grating available, including welded steel grating, press-locked grating, riveted grating, and swage-locked grating. Each type offers unique characteristics and advantages depending on the specific application and requirements.
Steel grating is made from carbon steel or stainless steel, which provides excellent strength, durability, and corrosion resistance. The bars can be flat or serrated to enhance traction and prevent slipping. The grating panels are often hot-dip galvanized or coated with a protective finish to further enhance its resistance to corrosion and extend its lifespan.
| Material | Low carbon, Middle carbon, stainless steel, Q235 |
| Bearing Bar Type | Flat bar, serrated bar, I bar, etc |
| Bearing Bar (Width*Thickness) | 25*3m 25*4, 25*4.5, 25*5, 30*3, 30*4, 30*4.5, 30*5, 32*5, 40*5, 50*5, 65*5, 75*6, 75*10...100*10mm etc; I bar: 25*5*3, 30*5*3, 32*5*3, 40*5*3 etc US standard: 1''*3/16'', 1/4''*3/16'', 1/2''*3/16'', 1''*1/4'', 1/4''*1/4'', 1/2''*1/4'', 1''*1/8'', 1/4''*1/8'', 1/2''*1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross Bar Pitch | 24 to 200mm |
| Cross Bar Size | 6*6, 8*8, 10*10, 12*12mm etc. |
| Surface Treatment | Hot dipped galvanized, painted, self-color, etc. |
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
If the sample is available, yes, can be free. If unavailable, need to customize.
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
|
