High Precision Optical Focusing Lens for Laser Applications

Categories Convex Lens
Brand Name: LONGWAY
Model Number: LW160922
Certification: ISO9001
Place of Origin: Shanghai, China
MOQ: 700 pieces
Price: NEGOTIATION
Payment Terms: T/T,Western Union
Supply Ability: 40000 Pieces per Month
Packaging Details: paper,foam,carton
Structure: Convex
Surface: Polished
Transmission: over 92%
Coating: available
Application: Optics
Material: Optical glass
OEM: available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

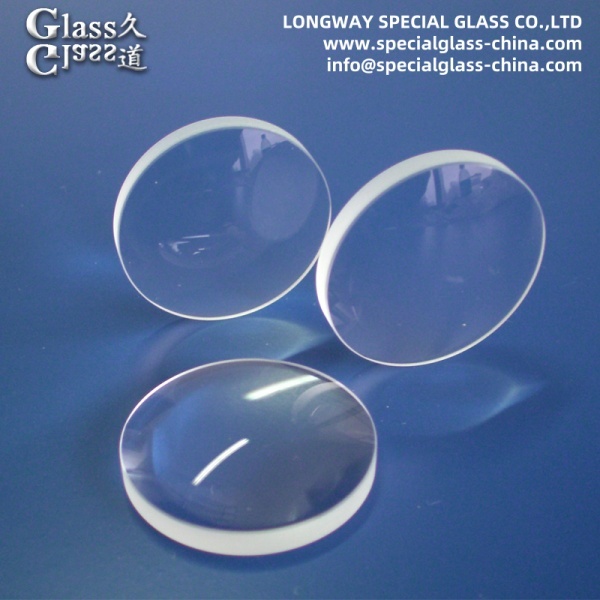

High Precision Optical Focusing Lens for Laser Applications


High Precision Optical Focusing Lens for Laser Applications


1. Material Composition‌

  • ‌Lens substrate‌: Fused silica (SiO₂) or N-BK7 optical glass for high laser damage threshold (10-15 J/cm² @1064nm).
  • ‌Coatings‌: Multi-layer AR coatings (R<0.25% per surface) optimized for common laser wavelengths (e.g., 355nm, 532nm, 1064nm).
  • ‌Mounting‌: Anodized aluminum or titanium barrels for thermal stability.

2. Key Properties‌

  • ‌Surface accuracy‌: λ/10 wavefront distortion for diffraction-limited performance.
  • ‌Focal length‌: 10-500mm with ±1% tolerance (telecentric options available).
  • ‌Aperture‌: f/1.4 to f/8 with <0.1% spherical aberration.
  • ‌Temperature range‌: -50°C to +300°C (coefficient matched to laser systems).


‌3. Core Functions‌

  • ‌Beam shaping‌: Converts Gaussian beams to flat-top profiles for uniform energy distribution.
  • ‌Spot size control‌: Achieves micron-scale focal spots (e.g., 5μm @532nm).
  • ‌Collimation‌: Corrects divergence in fiber-coupled laser systems.

4. Applications‌

    • ‌Laser cutting/welding‌: Focuses high-power CO₂/YAG lasers (1-6kW).
    • ‌Medical lasers‌: Used in ophthalmology (LASIK) and dermatology devices.
    • ‌LIDAR systems‌: Optimizes signal-to-noise ratio in automotive/industrial scanners.


ItemOptical Convex Focusing Lens
MaterialOptical glass, Qurartz glass, Pyrex, borosilicate glass, Float glass
Diameter Tolerance+0/-0.2 mm
Thickness Tolerance+/-0.2 mm
Processedby grinding, polishing
Surface Quality80/50,60/40
Material Qualityno scratches and air bubble
Transmissionabove 90%
Chamfer0.1-0.3 mm x 45 degree
Surface CoatingAvailable
UsagePhotography, Lighting system, Electronic apparatus
