| Categories | Directional Control Valve |
|---|---|
| Brand Name: | HANJIU |
| Model Number: | 2P40 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 100 Sets |
| Price: | Contact the seller to get a quote |
| Payment Terms: | L/C,T/T,Western Union,Western Union |
| Supply Ability: | 300000 sets per year |
| Delivery Time: | 25 - 35 work days |
| Packaging Details: | Carton, Box, Pallets |
| Item: | monoblock valve |
| Material: | cast iron |
| Apply to: | tractor vehicles, agricultural machines |
| Spool: | 4spools |
| Max operation pressure: | 250 bar |
| control type: | spring return, detent return |
| Company Info. |
| Shijiazhuang Hanjiu Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

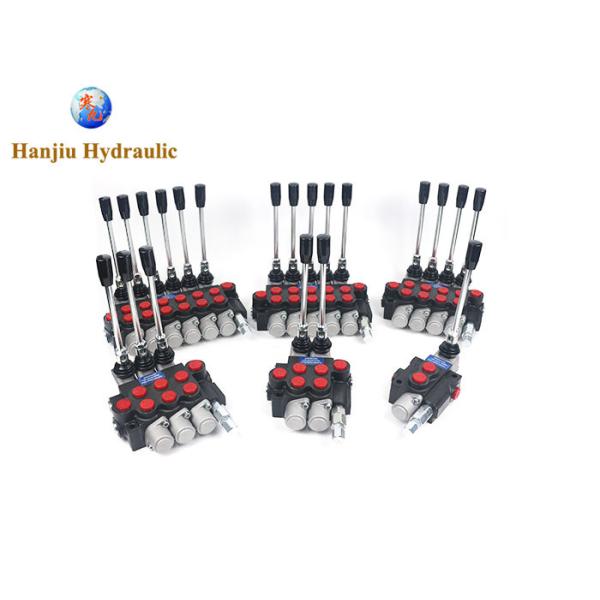

4P40-1A1A1A1A1GKZ1 hydraulic direction valve 40liters, monoblock valves G3/8 ports size
type code
P40-4 manual spring type
Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G3/8
Control Method Option: manual control +floating control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8
| flow rate | 40 liters |
| number of spools | 4 spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 200bar |
| inlet port size | G3/8 |
| spool type | 3 Positions, Double Acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8 |
| outlet section type | top outlet,side |
| outlet port size | G3/8 |







Different types

|
