BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange

Categories Low Speed High Torque Hydraulic Motor
Brand Name: HANJIU
Model Number: 119-1047003
Certification: ISO 9001:2015
Place of Origin: CHINA
MOQ: 100 Sets
Price: 350
Payment Terms: L/C,T/T,Western Union,Western Union
Supply Ability: 300000 sets per year
Delivery Time: 35 - 45 work days
Packaging Details: Carton, Box, Pallets
Item: disc valve motors
Model: BMK10
Displacement: 940CC
Flange: 127.0 [5.00] PILOT DIA.
Shaft: 16teeth SPLINE SHAFT
Port: 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

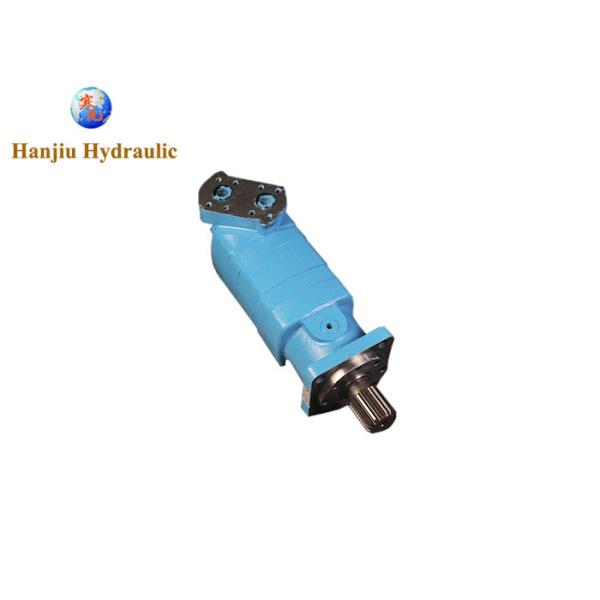

BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange

Hydraulic Geroler Disc Valve Motor 10000 Standard, 940.8 cm³/r with spline shaft 4-Bolt Flange



HANJIU BMK10 series hydraulic disc valve motors equivalent of charlynn 10000 series motor



SPECIFICATIONS

SeriesBMK10-940=119-1047
Displacement940cm³/r
Mounting TypeSTANDARD, 4 BOLT; 127.0 mm PILOT DIA
Shaft Type53.98 [2.125] DIA. FLAT ROOT
Maximum Operating Temperature180 °F
Output Shaft SizeSpline shaft
Overall Height5.79 in
Overall Length17.74 in
Overall Width5.91 in
Seal TypeStandard
Drain Connection Size
1 1/4 inch Split Flange



Main Specification

TypeBMK10
350
BMK10
480
BMK10
665
BMK10
940
Geometric displacement
(cm3 /rev.)
351479638933
Max.speed (rpm)cont.500350250178
int.790560400280
Max.torque (N•m)cont.1050148020802750
int.1400198026003400
Max.pressure drop
(MPa)
cont.20.520.520.519
int.27.527.52624
Max.flow (L/min)cont.170170170170
int.265265265265






Eaton similar type motors are available we belows:

10000 (119-) HANJIU BMK10


119-1044-003
119-1045-003
119-1046-003
119-1047-003

119-1032-003
119-1033-003
119-1034-003
119-1035-003

119-1040-003
119-1041-003
119-1028-003
119-1029-003
119-1042-003
119-1043-003
119-1030-003
119-1031-003
