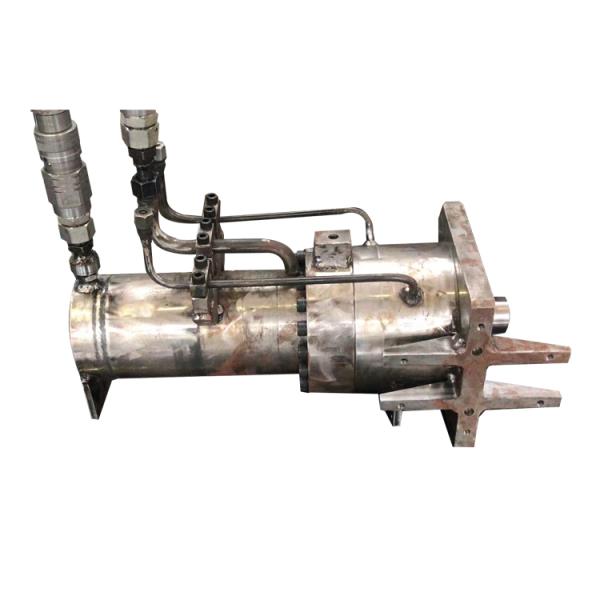

Stainless Steel Hydraulic Cylinder 25MPa 30mm Stroke

Oem Hydraulic Cylinder Hot Selling High-temperature Resistant Double Stroke Hydraulic Cylinder Good Hydraulic Cylinders – We Make Sure Inside Parts
The tube follows GUOYUE CD250 style.
Tube steel can be 45#, 42CrMo, or 27SiMn.
Hole is ground to H8 and feels smooth, Ra under 0.4 μm.
Head, base, ears, and piston are only 45# steel.
We do not use cast iron or cast steel. Slow-Down Parts
You can pick fixed bumpers or floating bumpers so the rod slows down safe at any speed or load. Welds
We hit every heavy-load weld with ultrasound.
This takes away most of the stress and makes the weld last longer. Seals
We only use top seals from NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany).
We do not use local seals. Checks
Each cylinder is tested to GB/T15622-2005 and our own Q/GAKY014-2023.
You get a test sheet and a pass paper. Promise
We give one year cover from ship date.
If it breaks because of how we made it, we fix or swap it for free.
This cylinder is strong. It uses thick steel and hard rod. It does not bend. The seal keeps oil in, no leak. It has many tubes that slide out one by one. It lifts high but stays short Advantages: This high - temperature resistant double - stroke hydraulic cylinder is a real game - changer. It’s designed to handle intense heat, so it won’t quit on you when things get hot. The double - stroke feature means it can cover more distance in one go, making your work more efficient. Plus, it’s super reliable, with sturdy construction that stands up to heavy - duty use. Whether you’re lifting, pushing, or pulling, this cylinder gets the job done smoothly and safely. It’s like having a tough, dependable assistant that never breaks down. Application Scenarios: Imagine working in a steel mill or a foundry, where the heat is intense and the work is non - stop. This hydraulic cylinder is perfect for those environments. It’s great for operating presses, moving heavy materials, or controlling machinery in high - temperature processes. Whether you’re forging steel or handling molten metal, it provides the precise force and control you need. It’s also ideal for lifting heavy equipment or operating gates in a metal - processing plant. If your job involves heavy - duty lifting or moving in extreme heat, this cylinder is your trusty partner.

item	value
Warranty	1 Year
Showroom Location	not have
Brand Name	Guoyue
Place of Origin	China
	Jiangsu
Pressure	not have
Structure	Y
Weight	195
Power	16MPa
Dimension(L*W*H)	1020*310*306mm
Rod Diameter	100mm
Maximum Stroke	180mm
Outer Tube Diameter	127mm
Inner Tube Diameter	100mm
Product name	Hydraulic Cylinder
Material	Stainless Steel
Usage	Machinery
