| Categories | Plastic Bushing |
|---|---|
| Brand Name: | Joyreap |
| Model Number: | JRR102UM |
| Certification: | ISO 9001; IATF16949 |
| Place of Origin: | China |
| Code: | JR102UM |
| Material: | Anodized aluminum adapter+Plastic |
| Type: | Closed type |
| Feature: | Self lubircating, long service life |
| Company Info. |
| Jiaxing Joyreap Precision Machinery Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

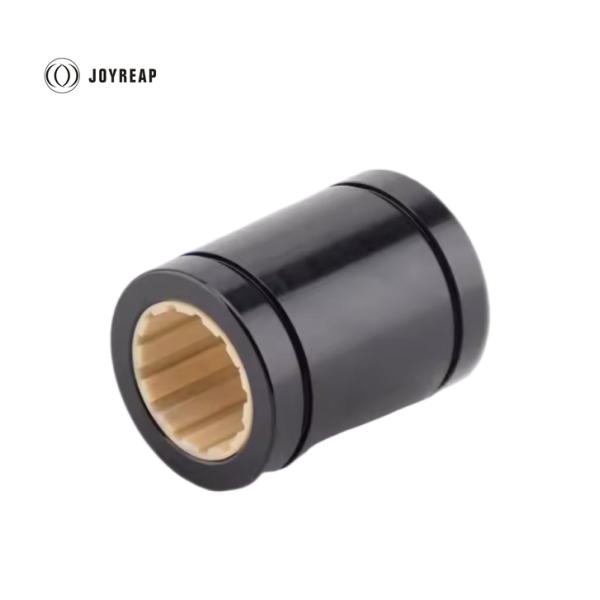

JR102UM Engineering Plastic Linear Bearing Plastic Self Lubricating Bearing
JR102UM is made of outside Anodized aluminum adapter and inside plastic linear. This liner bearing shows an specifically a self-lubricating type often used in applications requiring smooth, precise, and low-maintenance linear motion
Material:
Anodized aluminum adapter+plastic linear
Type:
Closed design
Feature:
● Closed design
● Anodized aluminum adapter
● Axial secured by circlips
● Maintenance-free and low noise
● Resistant to dirt and dust
● Operation temperature -50℃/+90℃
Application
Food, Beverage, Packaging, Camera and Film Equipment, Marine, Medical Technology, Home Office, Gaming Furniture
Standard Size
| Part No. | d | Tolerance | D1 | L1 | L2 | s | D2 | Dynamic Load P=5MPa | Static Load P=35MPa | Weight |
| [mm] | [mm] | h7 | h10 | H10 | H10 | h10 | F max. [N] | F max. [N] | (g) | |
| JR102ZM-01-05 | 5 | +0.025/+0.060 | 12 | 22 | 14.2 | 1.10 | 11.50 | 525 | 3675 | 5 |
| JR102ZM-01-06 | 6 | +0.025/+0.060 | 12 | 22 | 14.2 | 1.10 | 11.50 | 525 | 3675 | 5 |
| JR102ZM-01-08 | 8 | +0.032/+0.070 | 16 | 25 | 16.2 | 1.10 | 15.20 | 960 | 672 | 9 |
| JR102UM-01-10 | 10 | +0.030/+0.088 | 19 | 29 | 21.6 | 1.30 | 17.50 | 725 | 5075 | 14 |
| JR102UM-01-12 | 12 | +0.030/+0.088 | 22 | 32 | 22.6 | 1.30 | 20.50 | 960 | 6720 | 21 |
| JR102UM-01-16 | 16 | +0.030/+0.088 | 26 | 36 | 24.6 | 1.30 | 24.20 | 1440 | 10080 | 28 |
| JR102UM-01-20 | 20 | +0.030/+0.091 | 32 | 45 | 31.2 | 1.60 | 29.60 | 2250 | 15750 | 49 |
| JR102UM-01-25 | 25 | +0.030/+0.091 | 40 | 58 | 43.7 | 1.85 | 36.50 | 3625 | 25375 | 108 |
| JR102UM-01-30 | 30 | +0.040/+0.110 | 47 | 68 | 51.7 | 1.85 | 43.50 | 5100 | 35700 | 162 |
| JR102UM-01-40 | 40 | +0.040/+0.115 | 62 | 80 | 60.3 | 2.15 | 57.80 | 8000 | 56000 | 334 |
| JR102UM-01-50 | 50 | +0.050/+0.130 | 75 | 100 | 77.3 | 2.65 | 70.50 | 9000 | 87500 | 579 |
| JR102UM-01-60 | 60 | +0.050/+0.140 | 90 | 125 | 101.7 | 3.15 | 86.50 | 12000 | 120000 | 1070 |
|
