Product Specification

The GUOMAT G7059 is a high-performance, high-quality air spring (also known as an airbag) designed specifically for cab air suspension systems. Its design is fully based on and compatible with the world-renowned Firestone model W02-385-7059, making it a superior alternative. Designed specifically to enhance cab comfort in commercial vehicles such as heavy-duty trucks and construction vehicles, it replaces traditional steel coil springs or rubber springs, effectively filtering and buffering vibrations and impacts from the road, creating a smoother and quieter driving environment for the driver and significantly reducing driver fatigue.

G7059 Sleeve Type Rolling Lobe Air Springs Technical Data

BCR (in.) 8-1/4 in (20.96 cm)

Cap Number 7042, NBD-10409

Compressed Length 3-1/16 in (7.77 cm)

Diameter 2-7/8 in (7.32 cm)

Extended Length 11-45/64 in (29.72 cm)

Piston Height 3-1/8 in (7.95 cm)

Piston Number 6896, NBD-12708

Weight 1.3 lb (0.59 kg)

OE Manufacturer Number

Firestone W02-358-7059

Firestone W02 358 7059

Firestone W023587059

Firestone WO2-358-7059

Firestone WO2 358 7059

Firestone WO23587059

353-7059, EB7059, 329666 01, FI W02 358 7059, FSIW023587059, TWDW023587059, W02-N19-7059, W023587059, 324663-01, 328035-01, W02-N19-7069, W02-358-7059

Key Features and Benefits

1. Excellent Comfort: Utilizing the adjustable nature of compressed air, it effectively absorbs bumps and vibrations caused by road irregularities, significantly enhancing ride comfort and protecting the driver's spinal health.
2. Excellent Durability: Constructed from a high-strength, wear-resistant rubber composite material, the sturdy inner ply structure offers excellent resistance to aging, ozone, and UV rays, ensuring a long service life.
3. Precise Fit: As a direct replacement for the Firestone W02-385-7059, its installation dimensions and performance parameters are highly consistent with the original part, ensuring perfect installation on the cab suspension system of the specified vehicle model without any modification.
4. Reliable Sealing: Utilizing a precise crimping process and high-quality airtight layer, the product ensures that the airbag maintains an excellent airtight seal over long-term use, preventing slow leaks and maintaining a stable support height.
5. Wide Adaptability: Able to operate stably in harsh ambient temperatures ranging from -40°C to +70°C, it can adapt to the diverse climates and road conditions found in northern and southern China.

Installation and Maintenance Guide

• Safety First: Before replacing an air spring, ensure the vehicle is completely shut down and the cab is securely mechanically locked or supported to prevent it from accidentally falling.
• Relieve Pressure: Before removing the old airbag, completely vent the compressed air from the airbag using the vehicle's pneumatic system or manually.
• Inspect Related Components: When installing a new airbag, inspect the upper and lower bases, piston, and air lines and connectors for wear, cracks, or leaks. If damaged, replace them all to ensure overall system reliability.
• Proper Installation: Tighten the mounting bolts evenly in a diagonal order to prevent premature damage to the airbag due to uneven force. Ensure the airbag is not twisted or interfering with surrounding components.
• Inflation and Leak Check: After installation, start the vehicle and inflate the airbag to its normal operating height. Apply soapy water to all air line connections and the airbag bead to check for bubbles and ensure there are no leaks.
• Regular inspection: It is recommended to visually inspect the air springs for abnormal wear, cracks, cuts or bulging during routine maintenance.

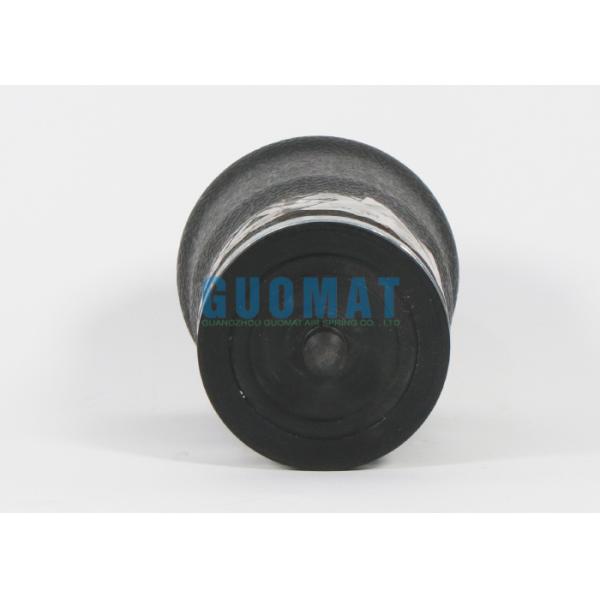

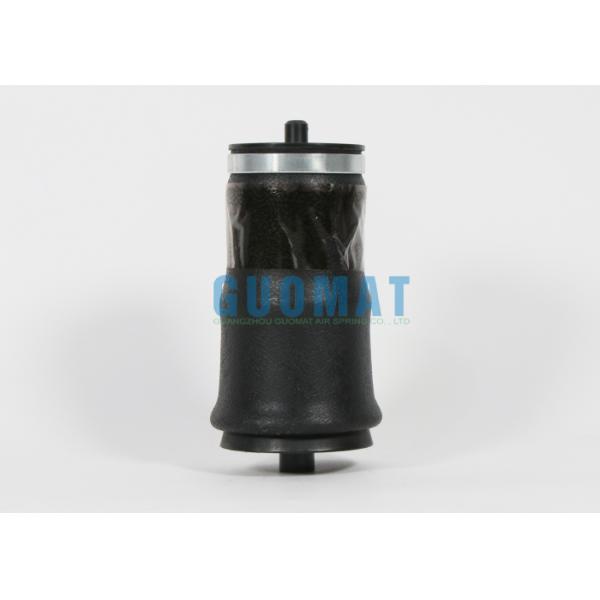

Product Physical Picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
