W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 1B7451
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD49.9-59.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model: Rubber Air Spring
Quality: 100 % Tested
Warranty: 12 Months
Position: Industrial Machine
Type: Gas-Filled
Firestone: W01-358-7451
Stroke: 50mm-140mm
Air Hole: 1/4NPTF
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device

W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
Product Attributes
AttributeValue
BrandGUOMAT
Model No.1B7451
ModelRubber Air Spring
Quality100 % Tested
Warranty12 Months
PositionIndustrial Machine
TypeGas-Filled
PaymenyT/T, Letter of Credit, PayPal
PackingMoisture-proof carton (export standard)
OEM Numbers
  • Firestone Style Number: 110
  • Firestone Part Number: W01 358 7451
  • Firestone Part Number: W01-358-7451
  • Firestone Part Number: W013587451
  • Firestone Part Number: 7451

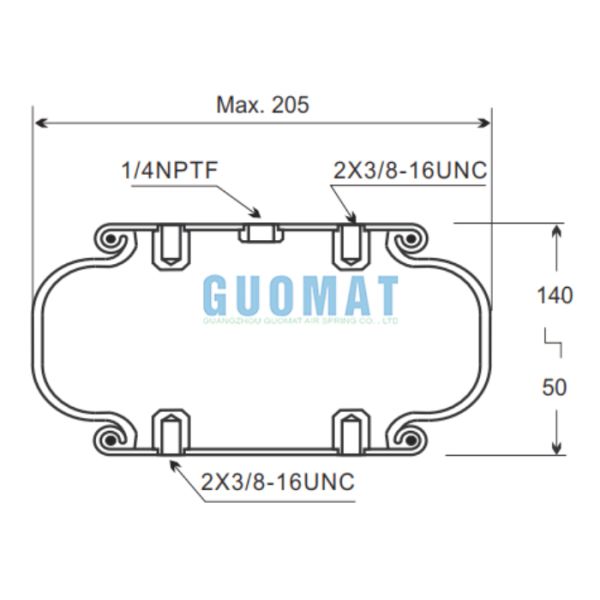

Specifications and Technical Parameters

Nut/Blind Nut:

  • Threaded hole: 2X3/8-16UNC
  • The threaded hole distance of the cover plate: 44.5mm

Air Hole/Air Inlet/Air Fittings:

  • Air hole/air inlet: 1/4 NPTF
  • The center distance between the air hole and the threaded hole: 22.25mm

Cover Plate:

  • Top plate diameter: 115mm
  • Diameter of the bottom cover: 115mm

Rubber Bellows:

  • The rubber bellows maximum outer diameter: 205mm
  • Maximum height: 140mm
  • Minimum height: 50mm

Bumper Block: No bumper block

Belt Loop: Without

Firestone Style 110 Single Convoluted Air Spring

FIRESTONE W013587451/WO13587451

FIRESTONE W01 358 7451/WO1 358 7451

FIRESTONE W01-358-7451/WO1-358-7451

Bind Nuts,1/4NPT

FIRESTONE W013587484/WO13587484

FIRESTONE W01 358 7484/WO1 358 7484

FIRESTONE W01-358-7484/WO1-358-7484

Bind Nuts,3/4NPT

FIRESTONE W013580112/WO13580112

FIRESTONE W01 358 0112/WO1 358 0112

FIRESTONE W01-358-0112/WO1-358-0112

Socket head aluminmum bead rings(bolts,nuts,washers not included-use 1/4 cap screws)

FIRESTONE W013580100/WO13580100

FIRESTONE W01 358 0100/WO1 358 0100

FIRESTONE W01-358-0100/WO1-358-0100

Rubber bellows only
Force Table
Assembly Height(in.)Volume@100PSIG(in3)Pounds Force
@20PSIG@40PSIG@60PSIG@80PSIG@100PSIG
4.0117390810124017002160
3.0914901010154020902650
