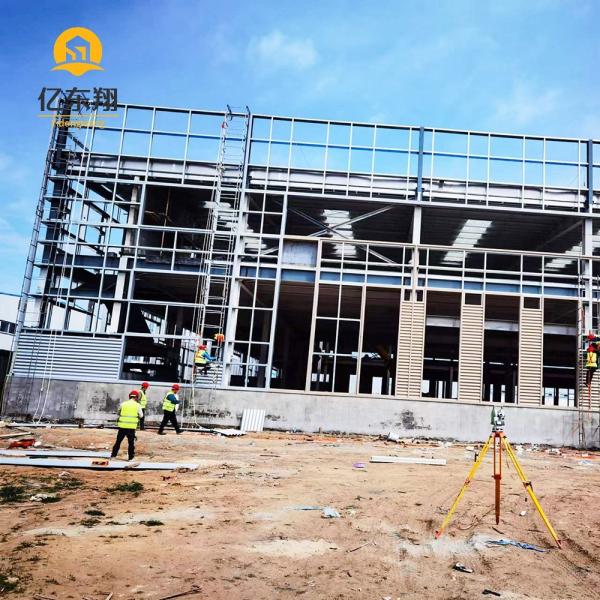

Prefab Steel Warehouse with Glass Wool Panels

Categories Steel Frame Building Construction
Brand Name: YDX
Model Number: YDX-SD
Certification: CE ISO SGS
Place of Origin: CHINA,QINGDAO
MOQ: 10-10000 square meters
Price: $30.00-$65.00
Payment Terms: T/T
Supply Ability: 10000 tons/month
Delivery Time: 20-30 works days
Packaging Details: Exported standard packing
Material: Steel
Window: PVC, Aluminum Windows
Resistance: Corrosion, Fire, Termites
Toughness: Good Toughness
Typical Model: Single Span ,Multi Span
Highlight: Painted Steel Structure Warehouse
Installation: fast
Windows: Aluminum
Product Usage: Building Construction
Product Material: Steel Structure
Cost: Moderate
Technique: Hot Rolled
Steel Grade: Q235B Q345b Low Carbon Steel
Versatility: Flexible
Structure Type: Frame
Frame Type: Steel Frame
Earthquake Resistance: Strong
Seismic Design: High Seismic Zone
Installation Time: Short
Aesthetics: Modern
Construction Type: Frame
Product Resistance: Corrosion Resistant
Finish: Galvanized/Painted/Cladding
Roof: Glass Wool, EPS, PU
Product Fire Resistance: Fireproof
Door: Sliding Door or Rolling Door
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Prefab Steel Warehouse with Glass Wool Panels

Prefab Steel Structure Warehouse with Glass Wool Sandwich Panels

Key Features
  • Attractive design with beautiful and elegant appearance using color steel sandwich panels
  • Lightweight construction for convenient shipping and handling
  • Easy assembly and dismantling with simple tools (plugs and screws)
  • Sturdy steel frame structure with sandwich panels for durability
  • Completely waterproof construction
  • Customizable roof, wall, doors, and windows to meet specific requirements
  • Long-lasting anti-corrosion coating on steel frame parts for 50+ years of service

Product Specifications

Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel FrameSteel Column & Beam1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting SystemRoof PurlinC or Z Section Steel, Q235B
Wall PurlinC or Z Section Steel, Q235B
BracingSteel Rod, Q235B
Cross SupportSteel Rod, Q235B
Column SupportAngle Steel; Steel Rod; Q235B
Angle BraceAngle steel,Q235B
Tie BarSteel Pipe,Q235B
Roof & Wall System1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
AccessoriesDoorSliding; Rolled Up Door (Manual/Auto)
WindowAluminum Alloy; PVC;
DownspoutPVC pipe;
GutterGalvanized Steel Sheet; Stainless Steel
VentilatorStainless Steel Turbine Ventilator
Skylight BeltFRP or PC semi-transparent Skylight Belt
FlashColor Steel Sheet
FittingsAnchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

Technical Specifications

Main Structure - ColumnQ355/Q235 H-steel, Box column available
Main Structure - Rafter, BeamQ355/Q235 H-steel
Surface Processing Options1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120 μm thickness)
2. Hot dip galvanization
Sub Structure - PurlinQ355B, C/Z steel section, galvanization 275g/m²
Sub Structure - Angle braceQ235B, L-steel
Sub Structure - Cross bracingQ235B round bar, L-steel
Sub Structure - Tie barQ235B, round pipe
Sub Structure - Batter braceQ235B, round bar
Roof System - Panel Options1. Insulated sandwich panel (PU, rock wool, glass fiber, EPS) with steel sheets (50mm/75mm/100mm thickness)
2. Steel plate (0.4mm/0.5mm thickness)
Roof System - Gutter Options1. Galvanized steel gutter (2.0mm/2.5mm/3.0mm thickness)
2. Painted, pre-finished steel gutter (0.4mm/0.5mm/0.6mm thickness)
Wall System - Panel Options1. Insulated sandwich panel (PU, rock wool, glass fiber, EPS) with steel sheets (50mm/75mm/100mm thickness)
2. Steel plate (0.4mm/0.5mm thickness)
3. Brick wall (provided by client)
Door Options1. Roller door for truck (custom size)
2. Sliding door for truck (custom size)
3. Access door (steel door, glass door etc.)
Window OptionsPVC or Aluminum frame (fixed, swing, sliding, louver etc.), custom sizes available
Accessories and FastenersAnchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-drilling screws, rivets etc.
Other OptionsCrane systems available (5T, 6T, 10T, 16T, 30T etc.)

Packaging and Transportation

Frequently Asked Questions
What is the derust grade for the steel structure?
For the main steel structure, the derust grade is ball blasting Sa 2.5, and manual derust St2.0 on secondary steel structure.
How is the installation process handled?
We provide detailed construction drawings as a manual to guide you through the building erection and installation process step by step.
What are the common types of industrial buildings?
Portal frame is widely used for industrial workshops, office buildings, shopping malls and warehouses. Other types can be designed and manufactured according to customer requirements.
What maintenance is required?
Painting touch-ups should be done after frame installation to ensure the surface remains protected for extended periods.
