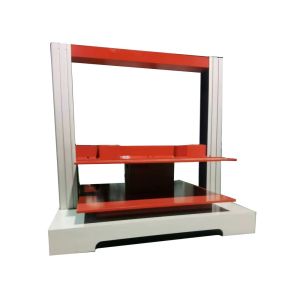

Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument

Categories UTM Universal Testing Machine
Brand Name: JHH
Model Number: XWW-50KN
Certification: ISO9001
Place of Origin: CHINA
MOQ: 1 set
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Delivery Time: 7-15 working days
Packaging Details: Standard wooden box
Supply Ability: 20 sets per month
Name: Carton compression testing machine/Packages digital compressive strength testing instrument
Test Types: Tensile, Compression, Bending, Shear, Peel, Adhesion, Etc.
Capacity: 50KN
Force unit: kgf, gf ,Lbf ,mN, N, KN, Ton
Force-measuring Range: 0.4%~100%FS
Accuracy: ±0.5%
Safety Protection: Overload, Over-travel, Over-voltage, Over-current
Test Space: 1500*1500mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument

Carton compression testing machine/Packages digital compressive strength testing instrument

Applications:

Carton compression testing machine/Packages digital compressive strength testing instrument is the essential testing equipment for measuring the compressive strength of carton boxes.

Product Description:

(1) Strength test: Measures the maximum compressive strength of cartons.
(2) Definite value test: Presets data to test carton strength and deformation.
(3) Stacking test: Enables stacking tests for 12 or 24 hours.
(4) Excellent design with precise screws and guide pillars to ensure stability.
(5) Servo motor control: Compression speed at 10 mm/min, return speed up to 100 mm/min.
(6) High-precision pressure sensor for accurate measurements.

Technical Parameters:

ModelXWW-50KN
TypeDouble screw
Max. Load50KN
Resolution of Load1/300000
Accuracy Grade0.5 grade
ForceForce-measuring Range0.5%~100%FS
Force-measuring Accuracy≤±0.5%
Range of force control rate0.005--5%FS/S
Relative error of force control rateWithin±1% of set value


Metal extensometer




Measurement range0.2-100%FS
Range of deformation rate0.02~5%FS/S
Error of indicationWithin±0.5%
Resolution1/300000
Large deformation

. Measurement range

5mm-1000mm
Error of indicationWithin±0.5%
Resolution0.001mm
CrossbeamCrossbeam Displacement Resolution0.001mm
Crossbeam Speed Range0.001-500mm/min
Test width1500mm (or according needing)
Total Crossbeam Valid Travel1500mm
ClampsCompression plate
PC SystemControl force, displacement and deformation
Power SupplyAC220V; 1500w
StandardsGB/T1040/1041/9341/8804/9647/17200, GB/6491, GB/T4857.4, GB/T4857.16, ISO7500-1, ISO5893, ASTMD6386, ISO2872, ASTM D642, ISO12048, etc
Weight1280Kg
