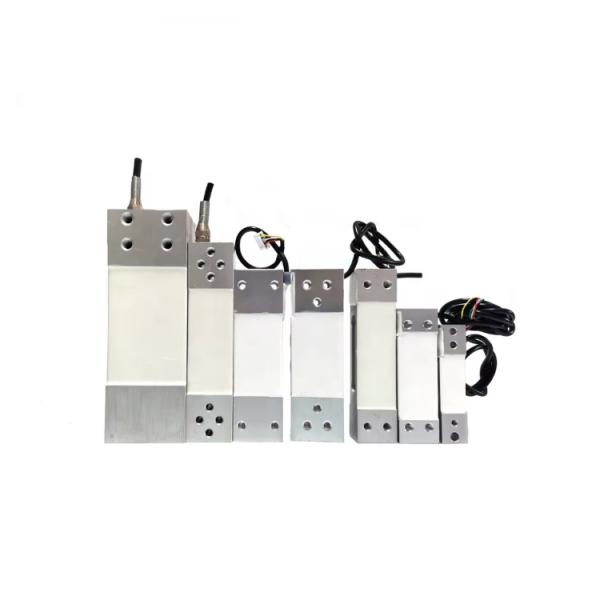

High Precision SC601 Electronic Platform Scale Weight Sensor Single Point Load Cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg

Categories Load Cell Usage
Series: Single point
Mounting Type: Fixed installation
Description: Single point, SC601 Load Cell
Model Number: SC601
Type: Load Cell
Place of Origin: Guangdong, China
Brand Name: SNC
Use: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Material: ALUMINUM
Capacity: 3kg-120Kg
Accuracy class: 0.02%
rated output: 2.0±0.2mV/V
Sensitivity:: 0.0016 %RO/℃
safe over load: 150% FS
Ultimate over load: 200% FS
IP grade: IP65
Item: load cell 10kg
Comprehensive error: ±0.03/±0.017
MOQ: 4 pieces
Price: $7/pieces 4-99 pieces
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Precision SC601 Electronic Platform Scale Weight Sensor Single Point Load Cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg

SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor


SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor

SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensorSC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor

Product Description

Features:

1, aluminum alloy, hermetically sealed with glue to IP65,

2, Surface anodized and anti-corrosion, integral structure and easy installation.

3, Application: electronic top scale, floor scale and other weighing equipment.
It uses 4-core shielded cable (φ4×420mm). The length of the cable is adjustable according to customer requirement.

Parameters:

ApplicationPrice computing scale, table top scale
ModelSC601
Capacity3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 30kg, 40kg, 50kg, 60kg, 100kg, 120Kg
rated output2.0±0.15mV/V
Accuracy classC2
maximum number of verification intervals2000Nmax
Minimum loadcell cerification intervalsEmax/5000 Vmin
Combined error≤±0.03% RO
Creep0.003%RO/30min
Temp. effect on sensitivity0.0016 %RO/℃
Temp.effect on zero0.003%RO/℃
Zero balance±1.0 %RO
Input resistance402±6 ohm
Output resistance350±3 ohm
insulation resistance5000 MΩ(50V)
Recommended excitation voltage10-15V
Compensated temperature range-10-+40℃
operating temperature range-35-+80 ℃
safe overload150 %RO
Ultimate overload200%RO
loadcell materialAuuminum
platform size250x350 mm
Connecting cableΦ4.2x350 mm
Method of connecting wireRed- input+, black- Input-. Green- Output+, White- output -
SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor
Load cell Accessorie

SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor

Application:
SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor
Related Products
SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor
Production Process

SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor

SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor

Packaging & Shipping

SC601 Electronic platform scale weight sensor Single Point Load cell 5kg 10kg 20kg 50kg 60kg 100kg 120kg load cell scale sensor

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
