Industrial PoE++ Media Converter 60W Output Gigabit SFP Fiber Port

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 60W PoE++ Media Converter

Mini Industrial 60W Media Converter Overview

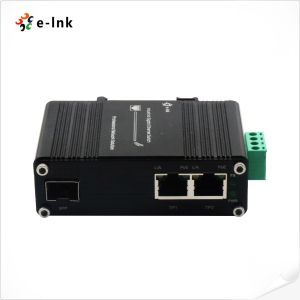

The LNK-IMC1200GP60-SFP is an industrial-grade, high-power PoE++ media converter

engineered for the most demanding network deployments. It seamlessly bridges Gigabit copper

Ethernet (10/100/1000Base-T) and fibre optic (100/1000Base-X) connections while delivering

a robust 60W of IEEE 802.3bt (PoE++ ) power. This makes it ideal for powering high-consumption

devices such as PTZ cameras, wireless access points (Wi-Fi 6/6E), advanced VoIP phones,

and thin clients directly over the network cable.

Engineered to endure extreme conditions, this hardened converter ensures reliable performance

in temperatures ranging from -40°C to +75°C. Its compact DIN rail design is perfectly suited

to control cabinets and industrial settings. Combining long-distance, EMI-immune fibre connectivity

with high-wattage power sourcing solves critical infrastructure challenges. This is achieved

by simplifying installation, reducing wiring costs and ensuring maximum uptime for power-hungry

edge equipment in harsh conditions. Adherence to the EN55022 standard is essential for ensuring

electromagnetic compatibility in sensitive applications.

Mini Industrial 60W Media Converter Features

►2 × 10/100/1000BASE-T RJ45 Ports with auto MDI/MDI-X function

►1 × SFP Port with dual-mode auto detection (100Base-FX / 1000Base-X)

►PoE Support: IEEE 802.3af/at compliant, delivering up to 60W power over 4-pairs

►Supports Full/Half-duplex and Auto-negotiation for efficient data transmission

►Energy-Efficient Design compliant with IEEE 802.3az (EEE) standard

►Wide Power Input: 48~57VDC via terminal block

►Flexible Installation: Supports both DIN-Rail and Wall-mount mounting

►Rugged Industrial Design with extended operating temperature range of -40°C to 75°C (-40°F to 167°F)

Mini Industrial 60W Media Converter Technical Indexes

Mini Industrial 60W Media Converter Ordering Information

Mini Industrial 60W Media Converter Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
