Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter

Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.

Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.

Description

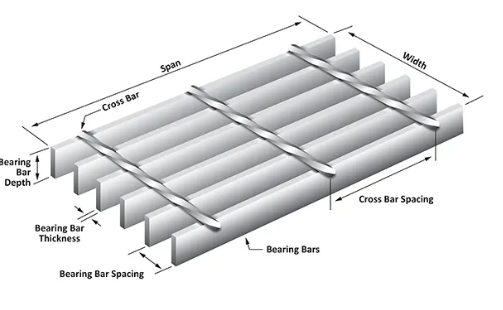

1. Bearing bar: 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2. Bearing bar pitch: 20,25,30,35,40,50,60mm.
US standard: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16".
3. Cross bar pitch:38,40,50,100.
4. Material: Mild Carbon Steel, SUS304.
5. Surface finishing treatment:Black, electric galvanized,hot dipped galvanized, paint.
6. Standard
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985

GNEE STEEL ,Has dedicated in producing and exporting all types of steel gratings for more than 19 years,A Professional Steel Grating & Safety Grating Manufacturer for Projects Engineering.

Factory

Advanced Equipment

We have more than 30 production lines of welded steel gratings and press lock gratings. Advanced equipment, skilled workers contribute to low production loss, high production efficiency and low products costs.

Supervise Strict Testing

All steel gratings are supervised by strict QUALITY CONTROL System both in International standard and enterprise test flow. All products our customers received are qualified and best in performance and package.

Steel Gratings Types We Supply

GNEE Steel Grating Application

Steel grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.

• Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.
• Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
• Widely used in the petrochemical industry, power plants, waterworks, sewage treatment plants, municipal works, sanitation projects in areas such as platforms, corridors, bridge, ditch cover, covers, ladders, fences, rails, and so on.
