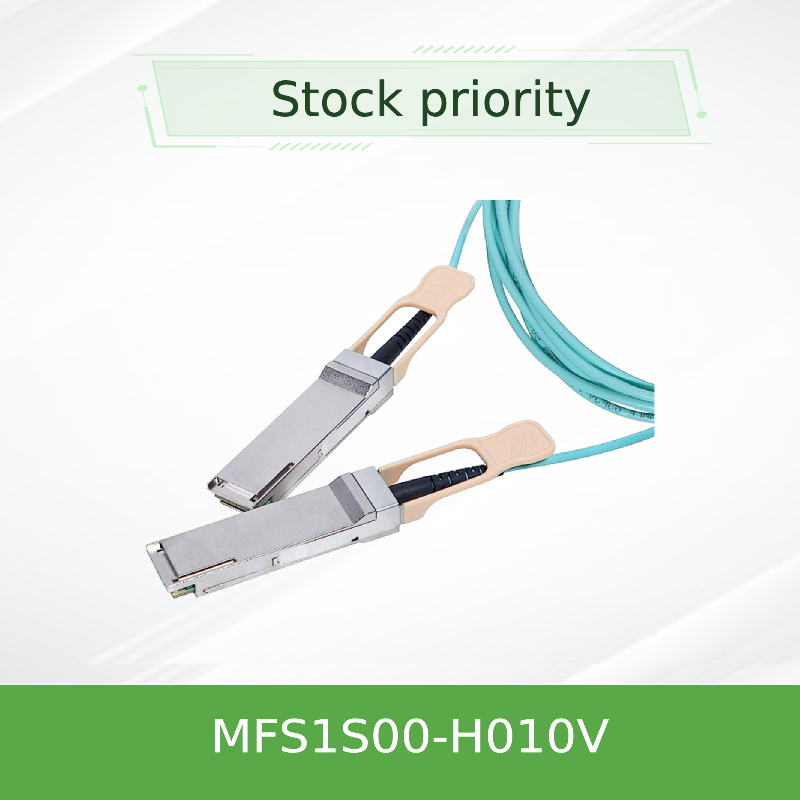

MFS1S00-H010V 200Gb/s QSFP56 Active Optical Cable (AOC)

1. Product Overview

The NVIDIA® MFS1S00-H010V is a high-performance 200Gb/s QSFP56 Active Optical Cable (AOC) designed for data center and high-performance computing applications. It supports 200G InfiniBand HDR and 200 Gigabit Ethernet, delivering high bandwidth, low latency, and extended reach up to 100 meters. This optical fiber cable is hot-pluggable, RoHS compliant, and engineered for reliability and ease of deployment.

2. Key Characteristics

• Supports 200Gb/s InfiniBand HDR and 200GbE
• 4x 50Gb/s PAM4 modulation per lane
• Up to 100m reach over multi-mode fiber (MMF)
• Low power consumption: 5.0W typical per end
• Hot-pluggable QSFP56 form factor
• SFF-8636 compliant I²C management interface
• Digital Diagnostic Monitoring (DDM) support

3. Technology & Standards

The MFS1S00-H010V complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (management), and InfiniBand HDR. It uses VCSEL-based optical technology and supports PAM4 modulation for high-speed data transmission. This passive fiber cable alternative offers active signal integrity with built-in retiming.

4. Working Principle

The AOC converts electrical signals into optical signals via integrated VCSEL transmitters. Signals are transmitted over multi-mode fiber and converted back to electrical signals at the receiving end. Each lane operates at 50Gb/s using PAM4 encoding, ensuring high data integrity and low bit error rates.

5. Applications

• 200G InfiniBand HDR clusters
• High-performance computing (HPC) networks
• Data center spine-leaf architectures
• Cloud infrastructure interconnects
• AI and machine learning workloads

6. Specifications & Selection Guide

7. Advantages

• Higher bandwidth and longer reach than passive copper cables
• Lower latency and power consumption compared to alternative solutions
• Hot-pluggable design for easy installation and maintenance
• Robust construction with ESD protection and diagnostic capabilities

8. Service & Support

We offer comprehensive technical support, 24/7 customer service, and worldwide shipping. All products come with a manufacturer’s warranty and are tested for compatibility and performance.

9. Frequently Asked Questions (FAQ)

Q: What is the maximum length of this AOC?
A: Up to 100 meters.

Q: Is this cable compatible with 200GbE switches?
A: Yes, it supports both InfiniBand HDR and 200GbE.

Q: Does it require external power?
A: No, it is powered through the QSFP56 port.

10. Precautions

• Avoid bending the cable beyond a 30mm radius.
• Use ESD precautions during handling and installation.
• Ensure compatible QSFP56 ports on host devices.
• Do not expose to temperatures beyond -40°C to 85°C.
