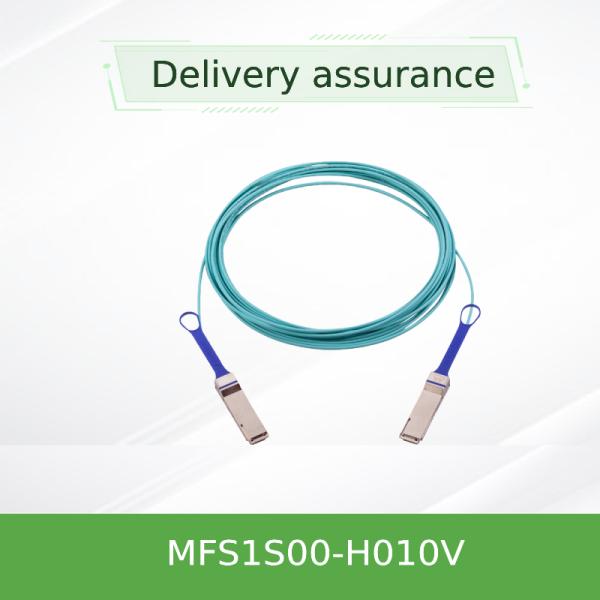

MFS1S00-H010V 200Gb/s QSFP56 Active Optical Cable (AOC)

1. Product Overview

The NVIDIA® MFS1S00-H010V is a high-performance 200Gb/s QSFP56 Active Optical Cable (AOC) designed for high-density data center interconnects. It supports both InfiniBand HDR and 200 Gigabit Ethernet applications, delivering superior bandwidth, low latency, and extended reach up to 100 meters. This Optical Fiber Cable is hot-pluggable, RoHS compliant, and engineered for reliability in demanding environments.

2. Key Characteristics

• Supports 200Gb/s InfiniBand HDR and 200GbE
• 4x 50Gb/s PAM4 modulation per lane
• Up to 100m reach over multi-mode fiber (MMF)
• Low power consumption: 5.0W typical per end
• Hot-pluggable QSFP56 form factor
• Digital Diagnostic Monitoring (DDM) with real-time health tracking
• Programmable Rx output amplitude and pre-emphasis

3. Technology & Standards

The MFS1S00-H010V complies with industry standards including SFF-8665, SFF-8636, and InfiniBand HDR. It uses VCSEL-based optical technology and supports PAM4 modulation for high-speed data transmission. The built-in I²C interface enables advanced management and diagnostics.

4. Working Principle

The AOC converts electrical signals into optical signals via integrated VCSEL transmitters. These signals are transmitted over multi-mode fiber and converted back to electrical signals at the receiving end. Each lane operates at 50Gb/s using PAM4 encoding, ensuring high data integrity and low bit error rates.

5. Applications

• 200G InfiniBand HDR clusters
• High-performance computing (HPC) and AI workloads
• Data center spine-leaf architectures
• Cloud and enterprise networking
• Inter-switch links (e.g., NVIDIA SN3700, SN4600)

6. Specifications & Selection Guide

7. Advantages

• Higher bandwidth and longer reach than passive DAC cables
• Lower power consumption compared to alternative optical solutions
• Hot-pluggable design for easy deployment and maintenance
• Robust diagnostic capabilities for proactive network management
• Compatible with major switch and server platforms

8. Service & Support

We offer comprehensive technical support, 24/7 customer service, and worldwide shipping. All products come with a standard warranty. Bulk orders are supported with competitive pricing and fast delivery.

9. Frequently Asked Questions (FAQ)

Q: What is the maximum distance supported?
A: This Optical Fiber Cable supports up to 100m over multi-mode fiber.

Q: Is the cable compatible with 100GbE systems?
A: Yes, it supports backward compatibility with 100GbE using appropriate rate select settings.

Q: Does it support digital diagnostics?
A: Yes, the cable includes full DDM support for real-time monitoring.

10. Precautions

• Avoid bending the cable beyond a 30mm radius.
• Ensure ESD precautions during handling and installation.
• Operate within specified temperature and humidity ranges.
• Verify compatibility with host system QSFP56 cages.
