12.8V 560Ah LiFePO4 Marine Battery with Bluetooth IP65

Categories Marine LiFePO4 Battery
Brand Name: Ecolite/OEM/ODM
Place of Origin: China
MOQ: 5000
Price: Inquiry
Payment Terms: L/C,T/T
Supply Ability: 5000 Units per month
Delivery Time: 1-2 months
Packaging Details: Carton Pallet Container
Battery Voltage: 12.8V
Nominal Capacity: 560Ah
Cycle Life: >6000cycles @0.5C,80% DOD
Housing Protection: IP65
Communication: Bluetooth
Continuous Discharge Current: 200A
Pulse Discharge Current: 300A(<1S)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

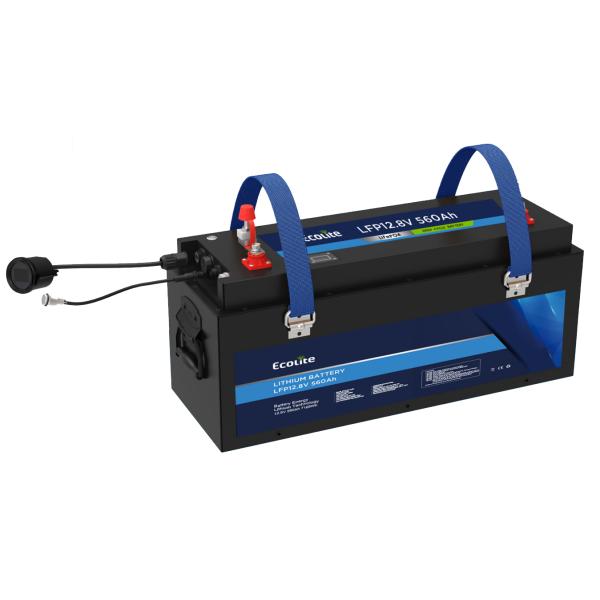

12.8V 560Ah LiFePO4 Marine Battery with Bluetooth IP65

LFP12.8V 560Ah Deep Cycle LifePO4 Lithium Battery For Marine Boat Yacht

ECOLITE 12 V battery is based on Lithium Iron Phosphate chemistry. As a result, these Marine LiFePO4 batteries are safe and reliable. Additionally, the next level technology of this chemistry results in a high energy density. In other words, it is the ultimate choice to replace your lead-acid batteries. Moreover, easily expand your battery storage system by connecting the LFP 12 V lithium-ion batteries in parallel. This increases the system capacity.


ECOLITE Lithium batteries are 100% safe & reliable. Our signature chemistry, Lithium Iron Phosphate (LiFePO4), does not contain rare earth elements (like Cobalt) or heavy metals, is non-toxic, including no lead or acid, is non-corrosive, does not off gas, requires no watering or maintenance, can be placed in any orientation, and unlike other lithium batteries will not explode or catch fire. In addition, each ECOLITE Lithium battery is protected from over heating, over charging, and short circuiting, by a battery management system (BMS) microchip that also extends the lifespan and is contained in a rugged, waterproof case (although enough water can conduct electricity between the terminals, so don’t submerse the battery). For best performance & reliability we recommend using a LiFePO4 charger.



Specifications

Electrical Parameters
Battery Voltage12.8V
Rated Capacity560Ah
Energy7168Wh
Resistance≤30mΩ
Efficiency≥0.98
Cycle Life>6000cycles @0.5C,80% DOD
Self Discharge<5% per Month
Max, Modules in Series,Parallel4S/2P


MechanicalParameters
Dimension(LxWxH)401x351x342mm
Dimension((LxWxH)15.79x 13.82x 13.46
Weight50Kg
Terminal TypeM8
Battery HousingABS
Housing ProtectionIP65
Cell Type-ChemistryLiFePO4 Cell
CommunicationBluetooth


Discharge Parameters
Continuous Discharge Current200A
Pulse Discharge Current300A(<1S)
Recommended Volt. Disconnect10V
BMS Discharge Cut-off Voltage10V
Reconnect Voltage10.8V
Short Circuit Protection300-800us


Charge Parameters
Charge MethodCC-CV
Charge Voltage14.2~14.6V
Recommended Float Voltage13.3~13.4V@100%
Recommended Charge Current/
Maximum Charge Current200A
BMS Charge Cut-off Voltage14.8V


Temperature Parameters
Discharge Temperature-20℃ to 60℃
Charge Temperature0℃ to 55℃
Storage Temperature-20℃ to 60℃
BMS High Temperature Cut-off65℃


FEATURES


The SafestLithium Technology.

Integrated Battery Management System(BMS)

Maximum support 4 in series or 4 in parallel.

Long Cycle Life >4000cycles@ 80%DOD.


Designed for Maritime Demands
ECOLITE Marine LiFePO4 battery excel in commercial marine applications, ensuring:
Consistent Energy Supply: Dependable power for mission-critical systems and operations.
Enhanced Vessel Efficiency: Lightweight batteries free up capacity for cargo or passengers.
Fast Recharge Rates: Enables tighter ferries, fishing vessels, and offshore support schedules.
Cost-Effective Lifespan: Reduce operational costs with longer-lasting, maintenance-free energy solutions.


To sum up some typical 12 V applications: motorhomes, rescue trucks and small luxury yachts
