| Categories | LP Series |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | CNLINKO |
| Model Number: | LP-24-F00PE-P01 |
| Certification: | CUL,CE,ROHS,CCC,ISO9001 |
| MOQ: | 2 |
| Price: | US$6.45-7.45 |
| Type: | XLR |
| Application: | Signal |
| Gender: | male or female |

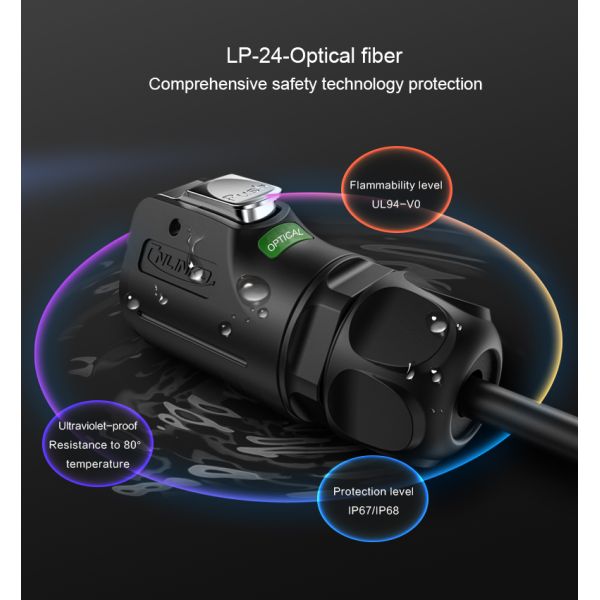

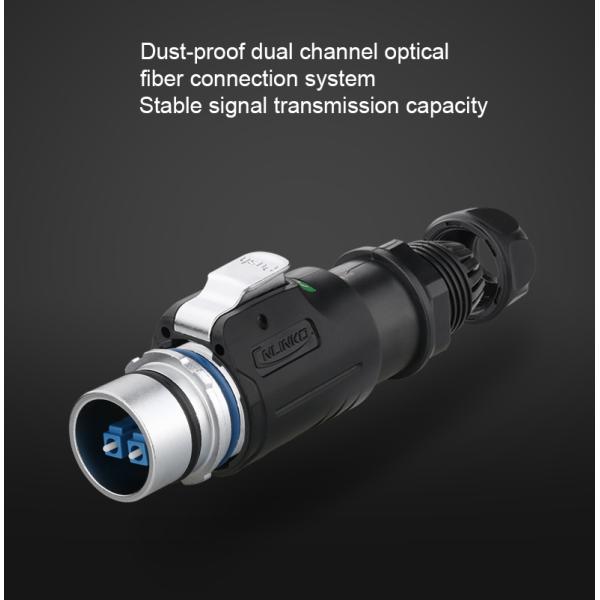

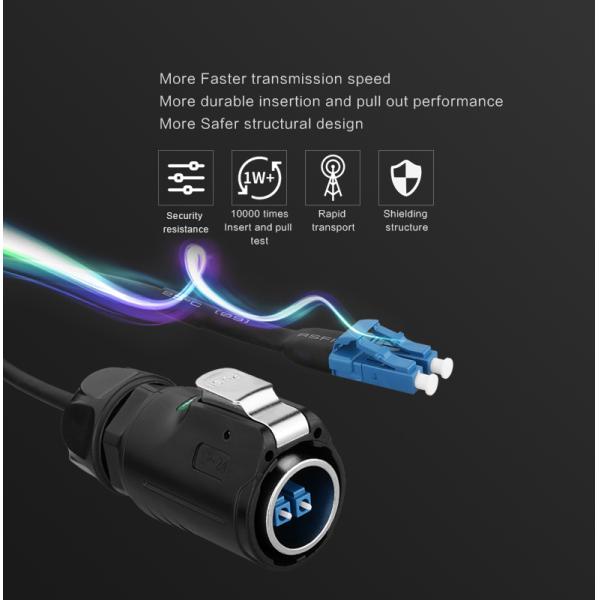

| Produce type: | fiber connector |
| Current rating(A): | 1.5A |
| Shell & Insulated Parts: | High Performance Engineer Plastic |
| Hardware Matel: | Zinc Alloy (pearl hard chromium) |

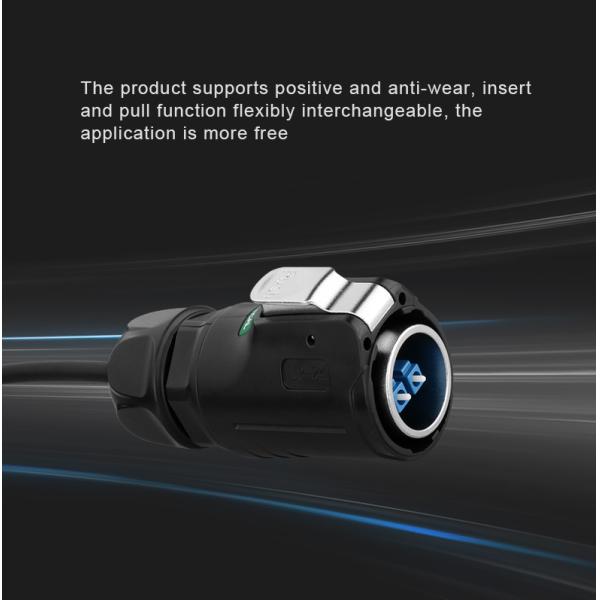

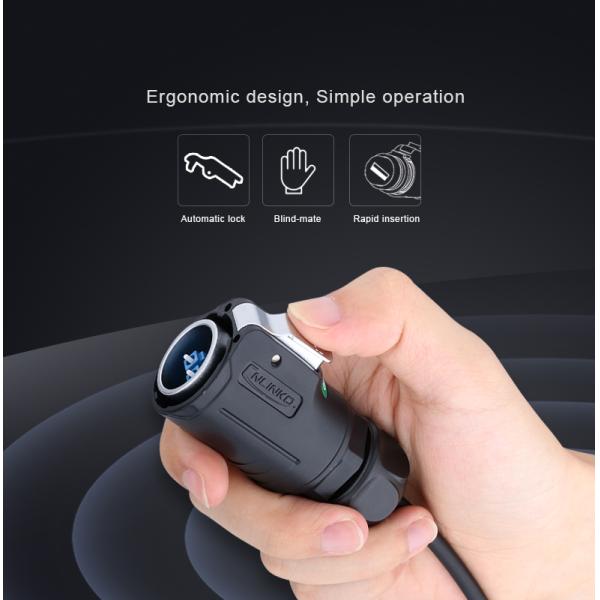

| Connecting mode: | Quickly insert and pull out |
| Operating voltage: | 1000V |
| Specifications | |

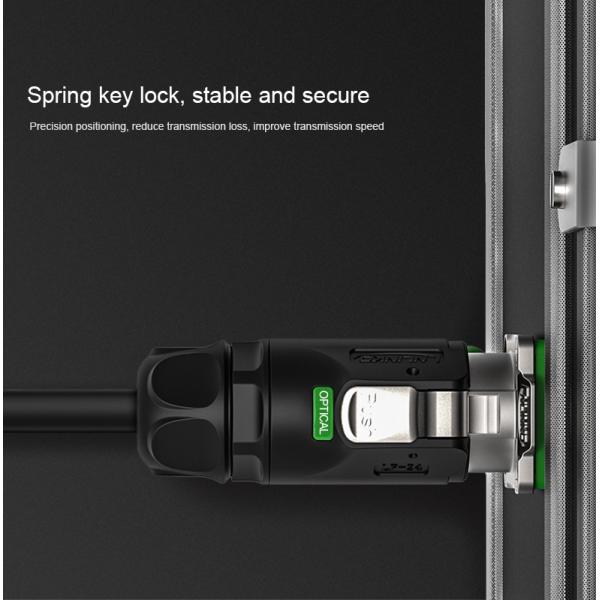

| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 0.15-0.2mm2 /26-24AWG |
| Diameter range | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty | 2 |
| Current rating(A) | / |
| Temperature rise | / |
| Operating voltage(AC.V.rms) | / |
| Withstanding voltage(AC.V)1min | / |
| Contact resistance | / |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell & Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |

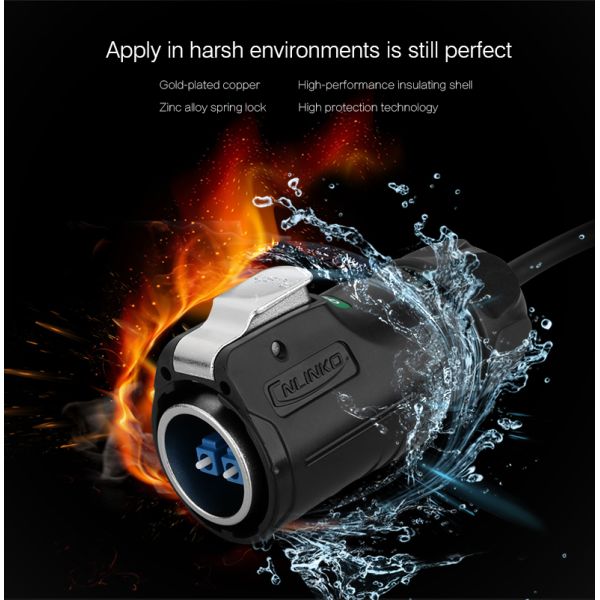

| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

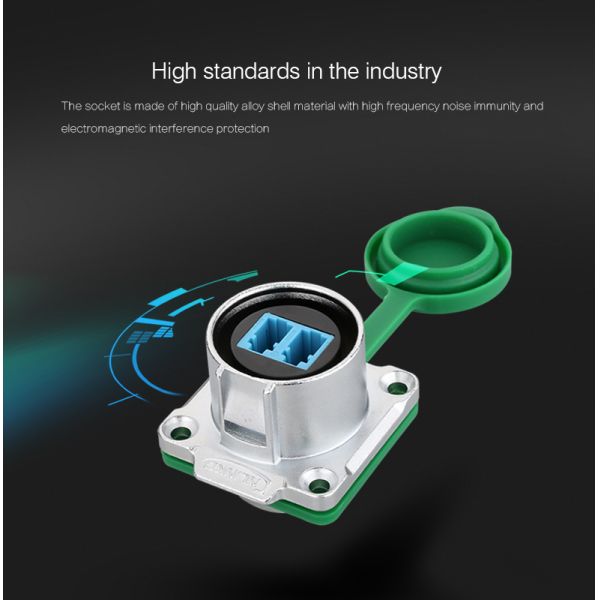

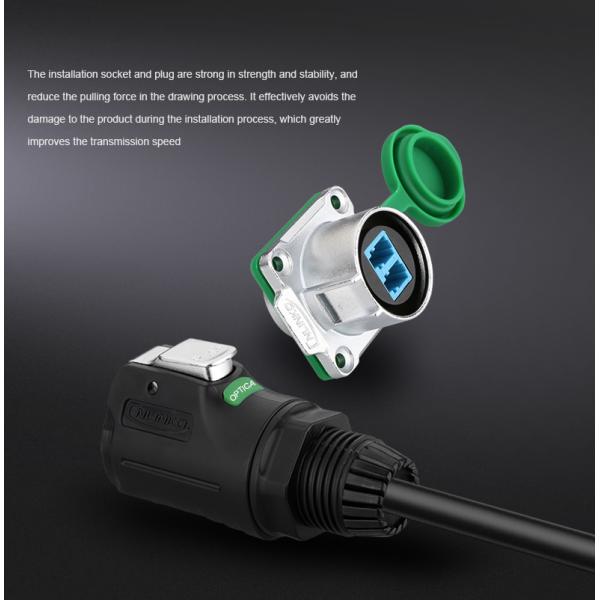

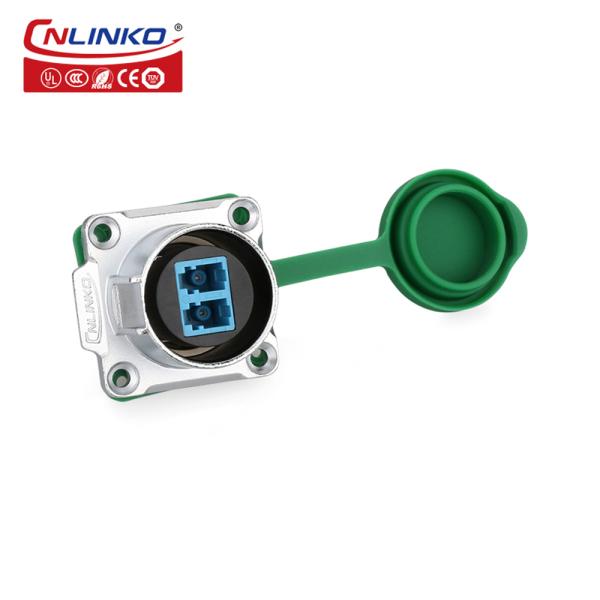

| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
|
