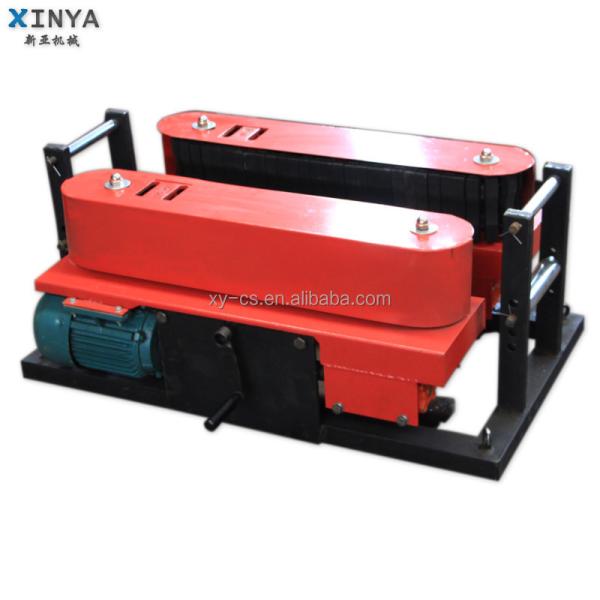

DSJ 180 Cable Push Pulling Machine to pull electric cables
Application
DSJ 180 Cable Push Pulling Machine we manufactured, is the ideal machine of cable transmission used in power,
petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.
Features
Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,
reduce labor intensity, improve work efficiency and ensure the safety.
Technical Data
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |





|
