| Place of Origin: | Jiangsu, China |
| Brand Name: | OEM |
| Model Number: | DSJ |
| MOQ: | 1 |
| Power Source: | Electric |
| Capacity: | 700/900KGS |
| Dimensions: | 950*500*400 mm |
| Weight: | 150 KG |
| Cable diameter: | 30-180mm |
| Electric motor: | 1.1KW * 2 |
| Pulling Speed: | 8 m/min |
| Pulling Force: | 700 KGS |
| Model Type: | DSJ-150 |
| Transmission Ratio: | I=45 |
| Rubber sheet thickness: | 25mm |
| Line pulling: | 700 KGS |
| Oversize dimension: | 950*500*400 mm |
| Cable diameter range: | Φ30 - 180 mm |
| Motor power: | 1.1KW * 2 |
| Company Info. |
| Changshu Xinya Machinery Manufacturing Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
![]()

![]()

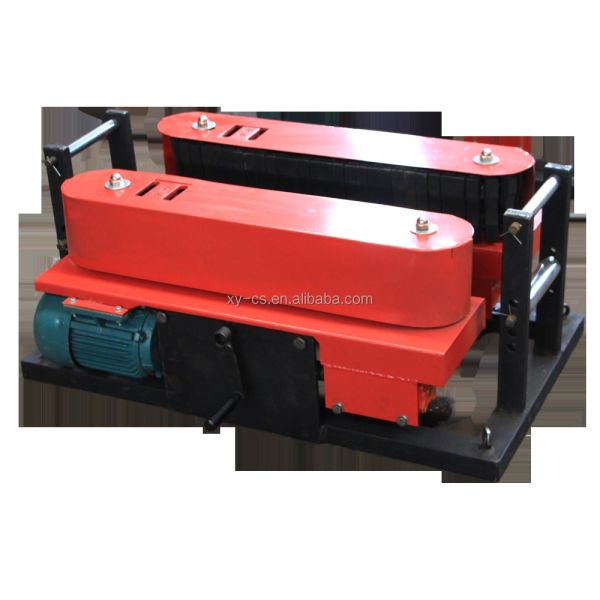

DSJ Cable Laying Machine / Cable Pulling Winch Machine for 3*400 sqmm Copper Cable
Application
Cable laying Machine / Cable Pulling Winch Machine we manufactured, is the ideal machine of cable transmission used in power,
petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.
Features
Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,
reduce labor intensity, improve work efficiency and ensure the safety.
Technical Data
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
