| Categories | Steel Frame Building Construction |
|---|---|
| Brand Name: | YDX |
| Model Number: | YDX-S5F6 |
| Certification: | CE ISO SGS |
| Place of Origin: | CHINA,QINGDAO |
| MOQ: | 10-10000 square meters |
| Price: | $30.00-$65.00 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 tons/month |
| Delivery Time: | 20-30 works days |
| Packaging Details: | Exported standard packing |
| Construction: | Steel Frame |
| Product Flexibility: | Flexible |
| Apply: | Easy to Apply |
| Type: | Steel Structure Building Construction |
| Seismic Design: | High Seismic Zone |
| Typical Model: | Single Span ,Multi Span |
| Usage: | Building |
| Frame: | Steel Structure |
| Surface: | Hot-dip Galvanized / Painted |
| Speed Of Construction: | Fast |
| Aesthetics: | Modern |
| Sustainability: | Eco-friendly |
| Large Span: | Customized |
| Key: | Versatility |
| Structure Type: | Frame |
| Frame Type: | Steel Frame |
| Earthquake Resistance: | Strong |
| Windows: | Aluminum |
| Installation Time: | Short |
| Construction Type: | Frame |
| Cost: | Moderate |
| Product Resistance: | Corrosion Resistant |
| Finish: | Galvanized/Painted/Cladding |
| Roof: | Glass Wool, EPS, PU |
| Product Fire Resistance: | Fireproof |
| Door: | Sliding Door or Rolling Door |
| Company Info. |
| Qingdao Yidongxiang Steel Structure Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

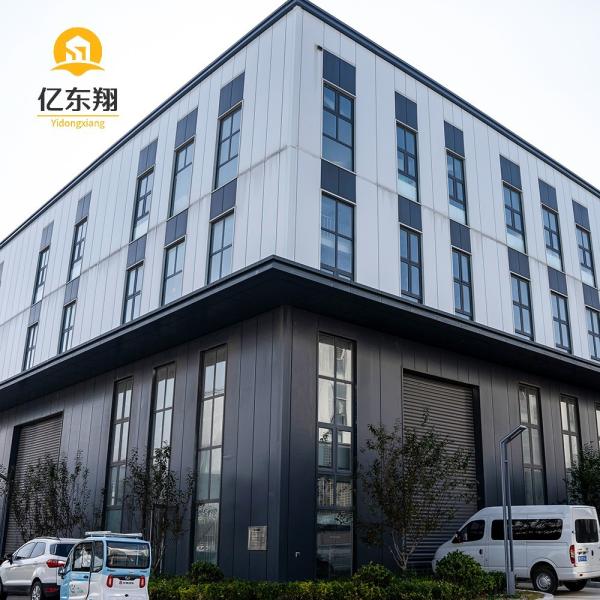

Prefab Steel Structure Warehouse with Sandwich Panel Walls
Product Specifications
| Attribute | Value |
|---|---|
| Application | Prefab Metal Building, Light Steel Framing Structure |
| Features | Steel Structure Warehouse |
| Type | Portal Frame Steel Warehouse |
| Raw steel material | Q235B, Q355B |
| Surface treatment | Painting |
| Service life | 50 Years |
| Wall and Roof | Sandwich panel |
| Working scope | Design, Fabrication, Installation |
Material Specifications
| Component | Specification | Material/Process |
|---|---|---|
| Main steel frame | H-section steel | Q345 steel 8mm to 10mm |
| Welding | Automatic Submerged Arc Welding | |
| Rust removing | Sand blasting | |
| Surface processing | Alkyd Paint or galvanized | |
| High strength bolt | Grade 10.9 | |
| Supporting system | Angle brace | L50x4, Steel Q235, Process and painting |
| Cross bracing | dia.20 round bar | Steel Q235, process and painting |
| Tie bar | dia.89*3 round pipe | Steel Q235 Process and painting |
| Batter brace | dia.12 round bar | Steel Q235 process and painting |
| Ordinary bolt | Galvanized bolt | |
| Roof Purlin | C160*60*2.5 | steel Q235, Painting or galvanized |
| Out-roof panel | Sandwich panel or corrugated steel plate | |
| Transparent skylight | 6mm thick PVC | |
| Accessories | Sealant, self-tapping screw, etc. | |
| Edge cover | Made of color steel sheet thickness 0.5mm | |
| Product Application | |||
| Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse | |||
| A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding! | |||
| An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework. | |||
| SPECIFICATION FOR STEEL STRUCTURE BUILDING | |||
| Main Steel Frame | Steel Column & Beam | 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel | |
| 2. Surface: Hot Dip Galvanized or Painted; | |||
| 3. Connection: All Bolts Connection; | |||
| Supporting System | Roof Purlin | C or Z Section Steel, Q235B | |
| Wall Purlin | C or Z Section Steel, Q235B | ||
| Bracing | Steel Rod, Q235B | ||
| Cross Support | Steel Rod, Q235B | ||
| Column Support | Angle Steel; Steel Rod; Q235B | ||
| Angle Brace | Angle steel,Q235B | ||
| Tie Bar | Steel Pipe,Q235B | ||
| Roof & Wall System | 1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm | ||
| 2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU; Thickness: 50-150mm; | |||
| Accessories | Door | Sliding; Rolled Up Door (Manual/Auto) | |
| Window | Aluminum Alloy; PVC; | ||
| Downspout | PVC pipe; | ||
| Gutter | Galvanized Steel Sheet; Stainless Steel | ||
| Ventilator | Stainless Steel Turbine Ventilator | ||
| Skylight Belt | FRP or PC semi-transparent Skylight Belt | ||
| Flash | Color Steel Sheet | ||
| Fittings | Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc | ||
| Item | Details Required |
|---|---|
| Location | Country, area where building will be constructed |
| Size | Length × width × height (mm) |
| Wind load | Maximum wind speed (kn/m², km/h, or m/s) |
| Snow load | Maximum snow height (kn/m² or mm) |
| Anti-earthquake | Required earthquake resistance level |
| Brickwall | If needed: 1.2m high or 1.5m high |
| Thermal insulation | If required: EPS, fiberglass wool, rockwool, or PU sandwich panels |
| Door specifications | Quantity and dimensions (width × height in mm) |
| Window specifications | Quantity and dimensions (width × height in mm) |
| Crane requirements | If needed: quantity, maximum lifting weight (tons), and lifting height (m) |
|
