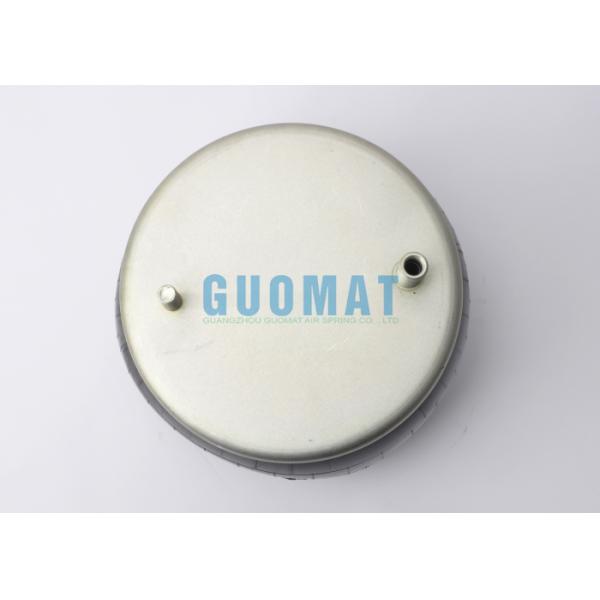

1R8-034 Goodyear Rubber Air Bags W01-358-5710 Firestone Truck Suspension Air Spring

1R8-034 Goodyear Rubber Air Bags W01-358-5710 Firestone Truck Suspension Air Spring

Product Description

Technical Data

Assembly Weight:
7.2 lbs
Design Height:
12-13.5 inches
Minimum Jounce Height:
N/A inches
Maximum Rebound Height:
N/A inches
Loading Capacity at 20 psig:
656 lbsf
Loading Capacity at 60 psig:
1,968 lbsf
Loading Capacity at 90 psig:
2,952 lbsf
Natural Frequency:
Hz
Maximum Diameter:
9.1 inches

OEM Number

GOODYEAR Part #: 1R8-034

GOODYEAR Part #: 1R 8-034

GOODYEAR Bellows #: 566163007

GOODYEAR Bellows #: 566 16 3 007

GOODYEAR Bellows #: 566-16-3-007

GOODYEAR PISTONE #: 566167021

GOODYEAR PISTONE #: 566 16 7 021

GOODYEAR PISTONE #: 566-16-7-021

FIRESTONE Bellows #: 1T14C-7

FIRESTONE Part #: 5710

FIRESTONE Part #: W013585710

FIRESTONE Part #: W01 358 5710

FIRESTONE Part #: W01-358-5710

FIRESTONE Part #: 5730

FIRESTONE Part #: W013585730

FIRESTONE Part #: W01 358 5730

FIRESTONE Part #: W01-358-5730

FLXIBLE Part #: 6-304-156

FLXIBLE Part #: 6-336-175

GMC Part #: 10530086

GMC Part #: 6617550

GMC Part #: 698634

GMC CONT. Part #: 8870484

GMC CONT. Part #: G5008051

LTS AUTOBUS Part #: 10530086

LTS AUTOBUS Part #: 698934

LTS AUTOBUS Part #: G5001705

NOVABUS Part #: G5001705

NOVABUS Part #: G5001706

PREVOST Part #: 63-0226

How are Air Springs Used on Trailers?

1. Air Spring Installation Location
Replacing Traditional Leaf Springs: Some trailers use air springs directly as the main suspension system, replacing steel leaf springs or coil springs.

Auxiliary Suspension (Stacking): Air springs are added to the existing suspension system to provide additional support when loaded (commonly used on heavy-duty trailers or RVs).

2. Core Functions
Load Control: Air springs adjust the air pressure to accommodate different loads (lowering the air pressure when unladen reduces jolts, while increasing the air pressure when heavily laden provides enhanced support).

Height Control: Maintains the trailer's levelness, preventing tilting or diving due to uneven loading (especially important when coupled to a tractor or pickup truck).

Shock Absorption: The elastic properties of air springs absorb road vibrations, protecting the cargo and improving comfort (especially important for delicate equipment or RVs).

3. Typical Application Scenarios
Cargo Trailers: When transporting heavy equipment, air springs are used to balance axle loads and avoid the risk of overloading.

RV/Camping Trailers: Maintain vehicle stability, reduce sway during parking, and enhance comfort.

Racing Car/Yacht Trailers: Protect valuable equipment from road impact.

4. Advantages Compared to Traditional Suspension

More Adaptable: Adjust air pressure with a single click to adapt to varying road conditions and loads.

Protecting the Vehicle Structure: Reduces impact from bumps on the trailer chassis and cargo.

Extending Tire Life: Balancing the load prevents uneven tire wear.

5. Precautions: Regularly inspect airbags to prevent aging, cracks, or leaks.

Avoid Overinflation: Observe the manufacturer's maximum air pressure specifications.

Winter Protection: Extreme temperatures may affect rubber elasticity, so use frost-resistant materials.
