| Categories | Vertical RJ45 Jack |
|---|---|
| Brand Name: | Link-pp |
| Model Number: | 74981104402 |
| Certification: | RoHS compliant |
| Place of Origin: | CHINA |
| MOQ: | 1pcs，Free samples |
| Price: | $0.9 - $2.3 |
| Payment Terms: | TT, NET30/60/90 Days, Western Union |
| Supply Ability: | 20K Pieces per Week |
| Delivery Time: | About 3 Days |
| Packaging Details: | Tray |
| Part Number: | 74981104402 RJ45 Vertical Connector |
| Number of Ports: | 1 |
| Number of Rows: | 1 |
| LED Color: | Green, Yellow - Green, Yellow |
| Shielding: | Shielded |
| Applications: | 10/100/1000 Base-T |

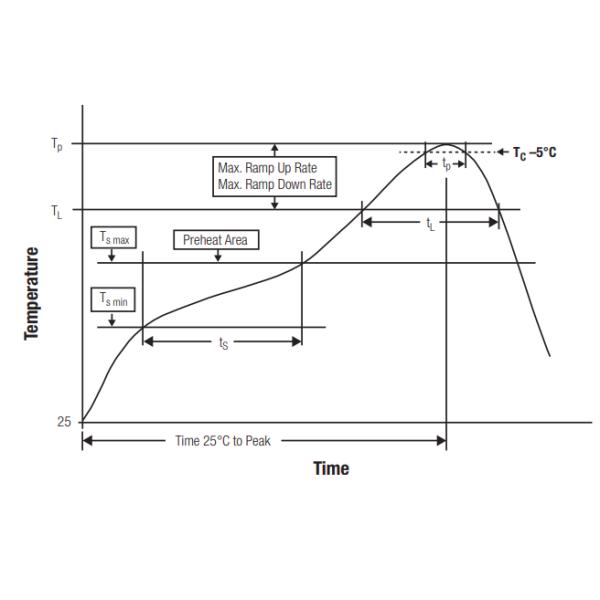

| Mounting: | Through Hole Reflow |
| Orientation: | Vertical |
| Operating Temperature: | -40°C ~ 85°C |
| Contact Finish Thickness: | 30.0µin (0.76µm) |
| Company Info. |
| LINK-PP INT'L TECHNOLOGY CO., LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
| Specification | 74981104402 |
|---|---|
| Number of Ports | 1×1 |
| Tab Position | Vertical |
| Data Rate | 1000BASE‑T |
| Mount | THR |
| EMI Tabs | NO |
| LED Type | yellow/green-yellow/green |
| PHY Chip Mode | voltage |
| Operating Temperature | Industrial Grade -40 °C up to +85 °C |
| RoHS Compliant | Yes |
| PoE | non-PoE |

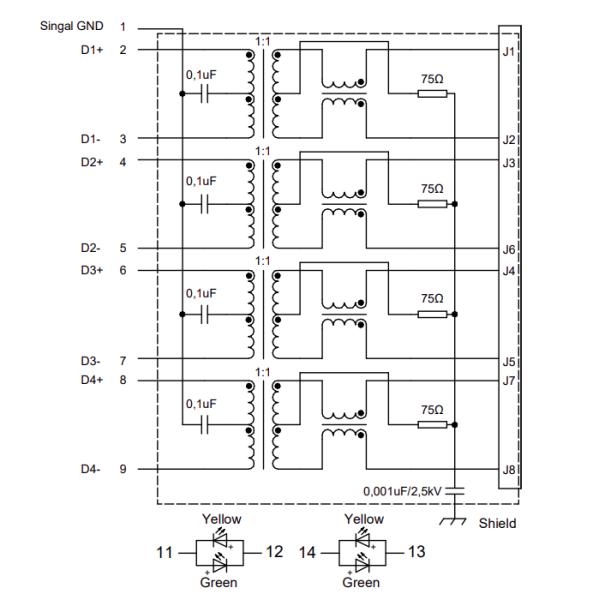

| Integrated Magnetics | With |
| Turns Ratio (TX/RX) | 1:1 |
| Open Circuit Inductance (OCL) | 350µH (minimum) with 8mA DC bias |
| Insertion Loss | -16 dB min @1-40 MHz -10 + 20*log(f/80MHz) dB min @40-100 MHz |
| Crosstalk | -30 dB min @1-100 MHz |
| Common Mode Rejection Ratio (CMRR) | -30 dB min@1-100 MHz |
| Hi-Pot (Isolation Voltage) | 1500 Vrms |
|
