| Categories | Vehicle Testing Equipment |
|---|---|
| Brand Name: | Sinuo |
| Model Number: | SNQC1009 |
| Certification: | Calibration Certificate(Cost Additional) |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 30 days |
| Packaging Details: | Plywood case |
| Test Station: | Single |
| Drive Mode: | Servo motor |
| Flexing Angle: | 0-360° can be adjusted |
| Flexing Rate: | 0-60 cycles / min, can be preset |
| Flexing Cycles: | 0~999999 can be preset, default 20000 cycles |
| Load Weights: | 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N |
| Company Info. |
| Sinuo Testing Equipment Co. , Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

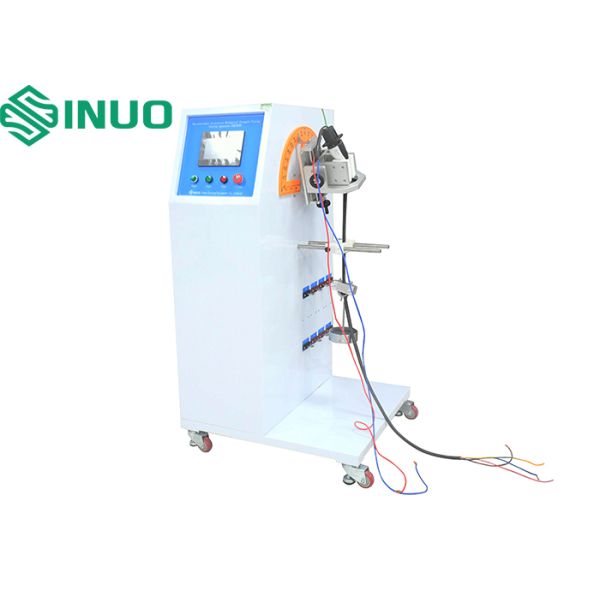

IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
The flexibility testing apparatus is designed and manufactured according to requirements of IEC62196-1: 2022 clause 26.4 table 14, IEC60309-1: 2012 clause 24.4 figure 9, etc. It is used to process the mechanical load flexing test of the vehicle plugs, socket-outlets and couplers non-rewireable accessories.
The equipment adopts PLC control and operated by 7-inch colour human-machine interface, uses a servo motor to control the flexing angle. The flexing angle, flexing speed and the test cycles can be preset on touch screen. The test is automatically carried out according to the set parameters. When the test times reach the preset number of test times, the device automatically stops and gives the test completion signal prompt. The test equipment has the advantages of high-precision digital display, high-efficiency digital frequency conversion, precise speed adjustment, six-digit memory setting, multi-function modular fixture, rotating center centering measuring tool, and built-in load which can supply load voltage to test sample during test.
Technical parameters:
Test Station | Single |
Electrical Control Method | PLC intelligent integrated control, 7-inch humanized touch interface operation |
Drive Mode | Servo motor |
Sample Clamping Method | Mechanical clamping, the position of clamping point is adjustable |
Flexing Angle | 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical) |
Flexing Rate | 0-60 cycles / min, can be preset |
Flexing Cycles | 0~999999 can be preset, default 20000 cycles |
Load Weights | 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N |
Load Power | please use an external power source |
Test Judgment | Judging by the signals given when the current is conducted or not |
Equipment Dimensions & Weight | L 850mm *W 800mm *H 1500mm, the whole machine is about 300Kg |
Power Supply | Three phase AC380V±10%, 50/60Hz |
|
