Large-span column-free space portal steel frame structure warehouse

Large-span column-free space portal steel frame structure warehouse

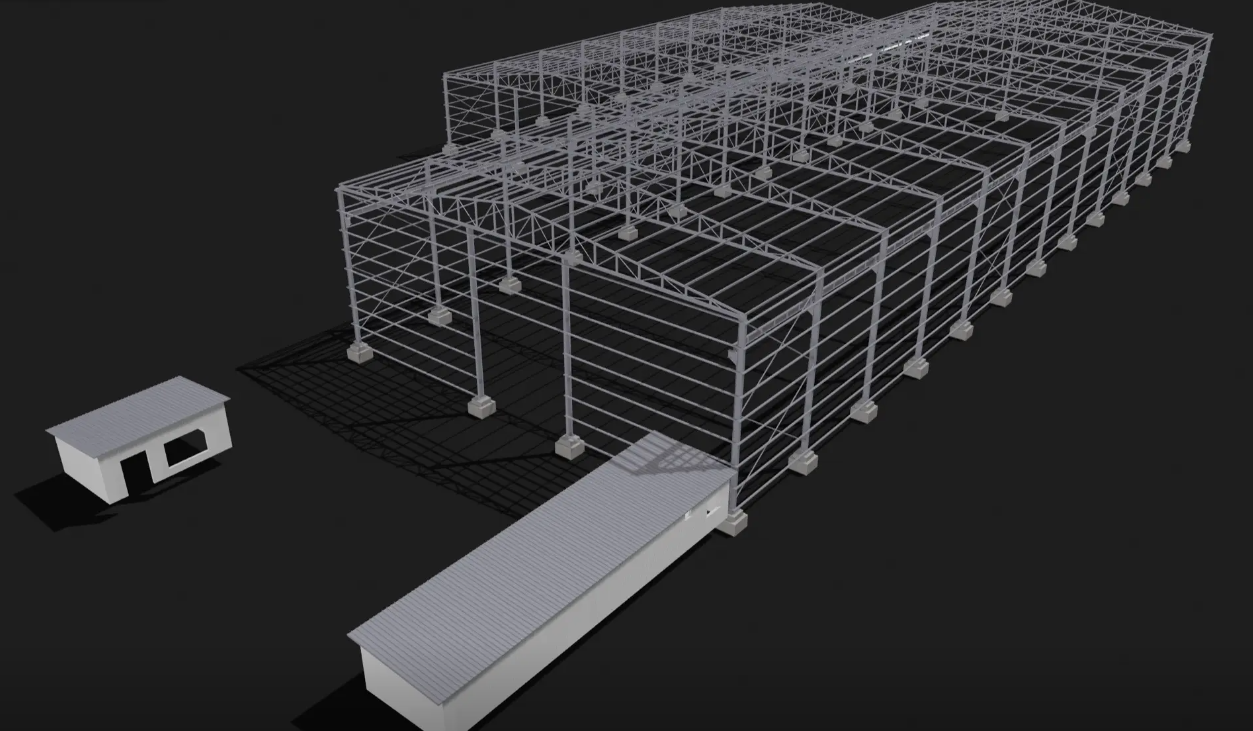

Steel structure warehouses are industrial storage buildings with steel as the core load-bearing structure, featuring prefabricated steel columns and beams for the main, complemented by color steel sandwich panels and other enclosure materials, which can achieve large-span column-free space design.

With a short construction period and easy installation, can be quickly put into production; they have a high space utilization rate, compatible with various cargo storage and loading and unloading equipment operations; at the same time, they have the of flexible expansion, strong durability, environmental protection, and recyclability, making them an efficient and economical preferred solution in the industrial storage field.

Product name	Steel Structure Warehouse
Length	H beam 4000-15000mm
Height	200-1200mm
Galvanizing Thickness	40 - 100 μm, etc. for Selection.
Main frame	H beam
Base	Cement and steel fouddation bolts
Specification	Custom
Bolt	Plain bolt ang high-strenth bolt
Roof&wall	Sandwich panel or color plate
Door	Sliding or rolling door
Transport Package	Seaworthy Package
Trademark	CT Steel Structure
Customized design is welcomed.
In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly.

Product Advantages:

Advantage One: Short construction period, quick investment and quick effect. The core components of the steel structure warehouse are all in the factory with high precision and quality control. Only lifting and assembly work is needed on site, without the need to wait for a long time for pouring and curing like concretehouses. Taking a 1000㎡ conventional warehouse as an example, from the time the components enter the site to the completion and delivery, it only takes 2- months, which is more than half the construction period of traditional concrete warehouses, and can help enterprises quickly invest in warehousing operations and achieve returns ahead of schedule.

vantage Two: High space utilization and diverse storage needs. Steel structures can easily achieve large span and column-free design, with a span of up to 30-60 or even larger, and the internal space is open and transparent without load-bearing walls. This layout can not only accommodate high-rack shelves, large forklifts, gantryanes and other storage equipment for efficient operation, but also flexibly divide the storage area to meet the stacking needs of different goods such as raw materials, finished products and heavy equipment Compared with concrete warehouses, the space utilization rate is increased by 20%-30%.

Advantage Three: Flexible and easy to expand to meet the of enterprise development. The modular design of the steel structure warehouse makes it have strong scalability. When the enterprise's storage demand increases, there is no need to demolish the original, but a new steel frame and enclosure structure can be directly spliced at the end or side of the warehouse, and the construction process does not affect the normal operation of the existing. At the same time, the main building can be heightened and transformed according to the needs, which is more adaptable to the development needs of the enterprise at different stages compared with "once-and-for-all" of the concrete warehouse.

Advantage Four: Strong durability and low maintenance cost. The steel itself has high strength and strong deformation. After being processed by galvanizing, anti-corrosion spraying and other processes, it can effectively resist rainwater, dampness, acid and alkali and other erosion. The service life can reach more than 50 years under normal maintenance. Regular maintenance only needs to check the anti-corrosion coating and tighten the bolts regularly. is no need for complex procedures, and the average annual maintenance cost is far below the cost of crack repair and wall renovation of concrete warehouses. In addition, steel has good seismic wind resistance, which can meet the construction needs of areas with many earthquakes and typhoons.

Why Choose Us:
Scheme design advantages: We have a professional team composed of senior structural engineers and creative designers. In the early stages of the project, the team will communicate with the client to fully understand the project needs, whether it is the spatial layout and load-bearing requirements of the industrial plant, or the expectations of the commercial building for the appearance and functional zoning. With rich experience and solid professional knowledge, engineers use advanced design software to compare and optimize multiple schemes, and tailor the most suitable steel structure design scheme for customers.

Steel quality advantages: The company has always regarded steel quality as a lifeline and established a strict raw material procurement system. Establish long-term and stable cooperative relations with well-known large-scale steel mills at home and abroad to ensure that the purchased steel products are in line with national standards and industry norms. Before each batch of steel enters the factory, it must go through strict quality testing, including chemical composition analysis, mechanical property testing and other testing processes, and only fully qualified steel can enter the production process. In the production process, advanced processing technology and quality control methods are adopted to strictly control each processing process to ensure that there are no quality defects in the processing process.

Advantages of transportation services: In order to ensure that steel structure products can be delivered to the customer's designated place safely and in a timely manner, the company is equipped with a professional transportation team and a perfect logistics distribution system. The transportation team members have been professionally trained, have rich experience in large-scale transportation, and are familiar with the transportation requirements and safety precautions of various steel structure products. Before transportation, a detailed transportation plan will be formulated according to the size, weight and transportation route of the product, the appropriate transportation vehicle and means of transportation will be selected, and the product will be properly packaged and fixed to prevent collision and damage during transportation.

China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group integrating for steel structure design, manufacture and installation. We have estabulished over 15 years. Our factory is covering about106,5 60 square meters.

Main products: steel structural warehouse, workshop, high rise steel building, school, hotel,office building, exhibition building, show room, shopping mall, stadium,Agricultural project (stable/cattle barn, poultry house,pig house), car parking, hangar,shed,storage room, prefab house, container house, Sandwich panel,corrugated steel sheet, C&Z sec- tion steel, door and windows and cranes.

Packing: we pack all the parts on the steel pallet and push into the container when clients received they can pulling them out within half an hour. It can help our clients to save a lot of time and labor cost during unloading.

Container loading:We will supply the materials list, the packing lists based on the contents we loaded into container. Showing the quantity, part no. length, container no, seal no.after finishing the container loading.

Installation drawings: we will supply the detailed installation drawings and video to show how to install the products. Even send the engineers to site for installation help.

"Quality and service first "is our company's development goals. We hope we will develop together and win more projects

1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box

China CT Steelstructure Co., Ltd. is a comprehensive industrial group integrating the research and development, design, manufacturing, production and installation of steel structures. Since its establishment in 2004, it has covered an area of approximately 300,000 square meters and has an annual production capacity of 400,000 tons of steel structures.So far, we have exported to more than 80 countries, served hundreds of overseas customers, and have been well received by customers.

The company has 30 steel structure production lines, specializing in the design, manufacturing and installation of industrial and civil buildings such as steel structure factories, warehouses, high-rise steel structure buildings, office buildings, exhibition halls, gymnasiums, parking garages, prefabricated houses, and agricultural projects. We are committed to providing our customers with innovative solutions that not only meet their expectations, but exceed them.

Why choose us?

+1. We have 21 years of industry experience.
+2.Professional design team with an annual output of 400,000 tons to meet customer needs.
+3.Savings: Buying directly from our factory saves at least 30%-40% compared to buying from the local market.
+4.24-hour online service, 100% quality assurance, once a quality problem occurs, it will be fully solved for you immediately.

+5.On the premise of ensuring quality, we provide customers with the best price.

+6.We have advanced intelligent automation integrated equipment, which greatly improves production accuracy and efficiency.

We have more than 500 well-trained production employees and more than 100 professional design teams, after-sales service teams and advanced equipment such as laser cutting machines, truss floor slab production equipment, and sandwich slab production lines, which greatly improve production output and product accuracy.
