Stainless Steel Mesh Demister Mist Eliminator Gas And Liquid Mesh Knitted

Stainless Steel Mesh Mist Eliminator Gas And Liquid Mesh Knitted

Demister Pad Description

Demister Pads/Coalescer/Mesh Pad are permeable covers of wire or plastic sewed work, planned and developed for proficient and efficient expulsion of entrained fluid beads from vapour streams. The cushions can be manufactured in an ideal size and shape.
Typically, demister cushion is introduced, so that vapour stream is upward. Whenever vapour and entrained fluid beads go through a demister cushion, the vapour passes effectively yet fluid drops, because of their more noteworthy inactivity, can’t make the essential sharp transforms and are tossed into contact with the wire surfaces and quickly held there.

The Demisting Process

The working standard behind the fog eliminator is straightforward. As the wet vapour stream ascends through layers of contracting surfaces inside the weaved and creased wire network, entrained as they persistently sway each surface. The gas inside the vapour stream keeps on ascending as the heavier fluids isolated, connect and coalesce into beads inside a work. As the beads develop, so does their weight until they tumble to the base of the vessel because of gravity. Fluid aggregations would then be able to be depleted out of the base as the gas is directed through the highest point of the Vessel.

As more beads enter the cushion and gather on the wires, they develop in size, run down the cable to the base surface of the work separator and tumble from the unit. Overhead vapour is presently free of entrained fluid.
Demister cushion/Coalescer/Mesh Pad counteract the loss of essential item and delivers brilliant condensate appropriate for utilizing a kettle’s feed water. The applications are in the processing plant vacuum towers, evaporators, treatment facility lube towers, steam drums, safeguards, scrubbers, separator.

Demister Pad Features

*Efficient defogging and droplet capture efficiency can usually reach over 98%.

*Low pressure drop, loose structure, large specific surface area, capable of effectively separating liquid droplets while maintaining low resistance to gas flow, typically with a pressure drop of around 100-300 Pa.

*Simple structure and easy installation

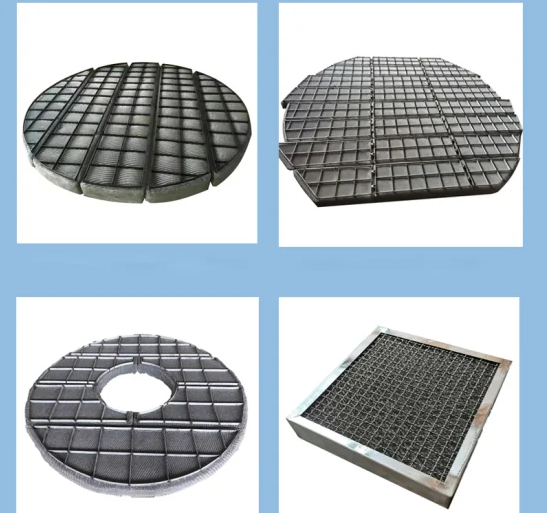

*Strong adaptability, can be designed in circular, rectangular, or other shapes depending on the material selection.

*Stable operation, minimal maintenance, no moving parts, long service life

Demister Pad Specification

Material	stainless steel, Monel, titanium, PP, PVC, PE, PTFE and so on.
Wire diameter	0.2 mm, 0.22 mm, 0.23 mm, 0.25 mm, 0.28 mm, 0.3 mm, 0.35 mm.
Mesh size	2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.
Height or thickness	100 mm to 150 mm.
Pad diameter	300 mm - 6000 mm.

Demister Pad Application

*Petrochemical plant Distillation tower, absorption tower, washing tower, flash tower, etc. are used to prevent liquid from being carried into the upstream gas system. Prevent solution mist from entering subsequent equipment in desulfurization and decarbonization units.

Demister Pad Package

1.wrapped with plastic film
