Integrated Outdoor Battery Energy Storage Cabinet

Categories Energy Storage Cabinet
Brand Name: COENG
Model Number: EnerCube2.0
Place of Origin: China
Payment Terms: MoneyGram,Western Union,T/T,D/A,L/C,D/P
ESS container: 10ft/20ft/40ft
Battery Type: LiFePO4
Cooling: Air Cooling
Technical Support: Send Engineer Team
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

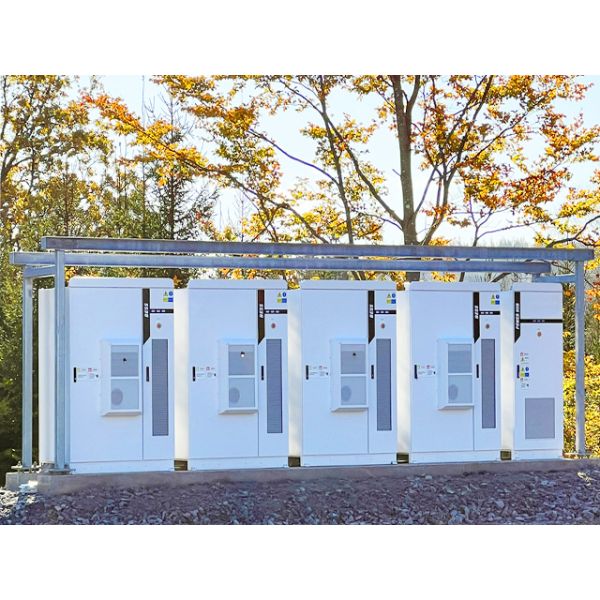

Integrated Outdoor Battery Energy Storage Cabinet

Product Description:

EnerA rk2.0-M is a compact and Plug-and-Play battery energy storage system with easy to be transported, installed and maintained.

It is an All-in-One system comprises of PCS, batteries, BMS, EMS, MPPT, automatic
fire control system and temperature control system.

Product parameters:
ModelEnerArk2.0-M-NBN-P30EnerArk2.0-M-NBN-P50
Battery Parameters
Battery cell modelLiFePO₄-280Ah
Module modelP20S
Battery capacity range107.52kWh~125.44kWh
AC On-Grid Side Parameters
Grid connection type3P4W
Charging/discharging power30kW50kW
Rated grid voltageAC 400V
Grid voltage range±15%
Frequency range50±5Hz
Rated AC output current43A72A
Power factor0.8(Leading)~0.8(Lagging)
Harmonics≤3%(at rated power)
AC Off-Grid Side Parameters
Grid connection type3P4W+PE
Rated output power30kW50kW
Frequency50±0.2Hz
Voltage accuracy1%
General Parameters
Dimensions(W*H*D)1400mm*2100mm*1230mm
Packing size(W*H*D)1600mm*2244mm*1500mm
Maximum weightAbout 1660kg
Degree of protectionIP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method typeBattery Cabinet(air conditioner)&
Electrical Cabinet(forced air cooling)
Fire fighting systemFM200 automatic fire extinguishing
Altitude**<2000m
Operating temperature*-20℃~50℃
Noise level≤75dB
Communication interfaceRS485,Ethernet
Communication protocolModbus RTU,Modbus TCP/IP
Product standard warranty5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters(Optional)
Maximum PV input power30kW/60kW30kW/60kW/90kW/120kW
MPPT voltage range200V-850V
Number of PV inputs1/11/1/2/2
Maximum input current100A/200A100A/200A/300A/400A
CertificationsSystem:UN3480,;
Battery:IEC62619,UL1973,UL1642,UL9540A;
PACK:IEC62619,UN38.3;
PCS:IEC62477,EN50549,VDE4105,G99 by ENA,AS4777.2
