1000 kg Load Capacity Overhead Crane Hook with Safety Latch and Steel Construction for Gantry Cranes

Categories Crane Hook
Brand Name: HUAGONG
Place of Origin: Henan, China
Price: 600 USD
Model Number: Hook Block
Certification: CE
MOQ: 1 set
Payment Terms: T/T
Supply Ability: 1000 SET/MONTH
Delivery Time: 25 days
Packaging Details: Wooden box
Load Capacity: 100 kg, 200 kg, 300 kg, 150 kg, 500 kg, 50kg, 1000 kg
Material: Steel, Cast Iron, Iron
Weight (KG): 200
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1000 kg Load Capacity Overhead Crane Hook with Safety Latch and Steel Construction for Gantry Cranes

1000 kg Load Capacity Overhead Crane Hook Featuring Safety Latch Suitable for Gantry Cranes from 3.2ton to 100ton
Product Overview

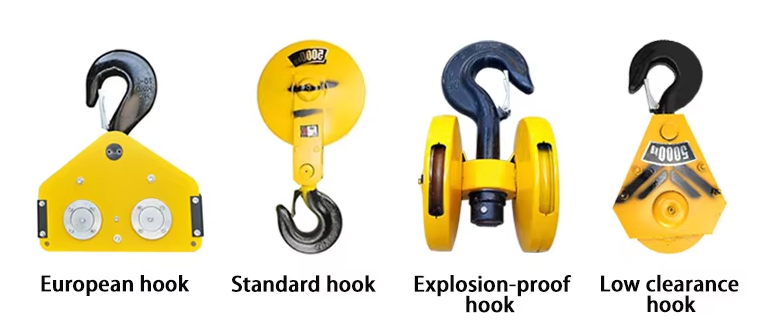

Overhead crane hook with safety latch - industrial lifting equipment
Applications
Hook blocks are essential components in crane machinery systems. These devices suspend from wire ropes using pulley mechanisms and serve as the primary load-handling interface. Known for their straightforward manufacturing process and exceptional durability, crane hooks provide reliable performance in various industrial lifting applications.

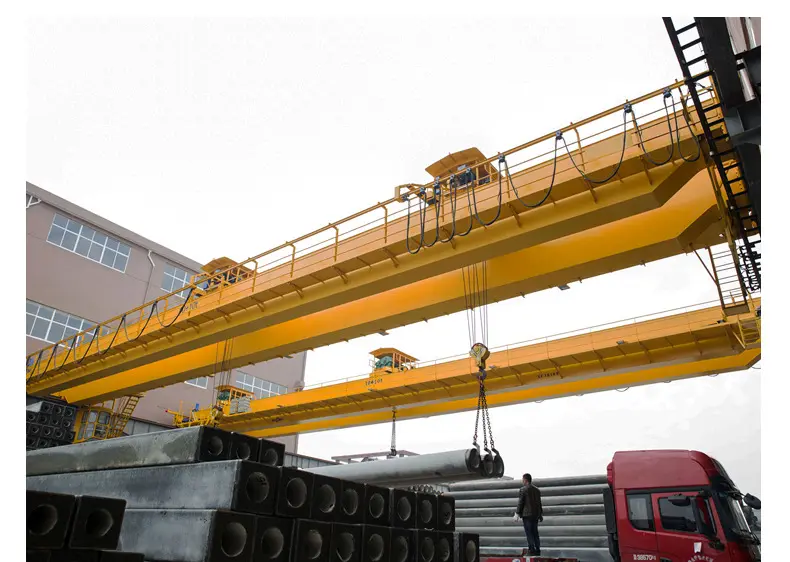

Crane hook installation and operation diagram Close-up view of safety latch mechanism Industrial crane hook in operational environment
Hook Classification & Specifications
  • By Design: Available in single hook and double hook configurations
  • Strength Grades: Classified into five mechanical property categories: M, P, S, T, V
  • Manufacturing Methods: Produced as forging hooks and strap type hooks
Technical Parameters
Crane hook technical specifications and dimensions chart
modellifting loadhook headpulleypulley Dia.ratioweight kg
DGJ5t20#1
6Mn
DG20
HT
QT
Q235
430/4502128
10t430/4503230
16t5653377
20t5654489
32t6804835
50t78551346
75t92052500
80t92053265
100t92054964
100t double hook89064425
Material specifications and safety standards compliance
Schematic diagram of hook unit structure
SpecificationParameter Dimensions (mm)Wire RopeWeight (kg)
ABHEGLL1L2CU⌀D1⌀DDiameter (mm)Number of rope strands
3.2775350420320150220//5065/30011-14480
5858370480320184240//6585/35011-144100
101080378526410243/92/9012038025011-146200
161330506660485307/172/11515050031014-206330
20141552465051033313593/130170/50018-208450
321740604780620420155105/160210/61018-208845
501965750815710510170109/20527071061020-22101500
7523359701012930600185135/25032080050026-32102500
1003130136011621100955350131200270355100080028-34124200
20035481617109011851298159284//340110090030-38169100
